Fabric innerduct has become one of the most widely adopted, fastest-growing products in the network construction industry. As a fiber internet service provider or fiber installation companies, You might want to have a source of replacement to highly reduce your cost for future fiber capacity, Fabric innerduct is a good solutions for this. Wholesale fabric innerduct in China will be also a good choice to reduce your purchasing cost.
What is Fabric Innerduct?
fabric innerduct is designed to maximize the capacity of conduits in network infrastructure while preserving space for future network deployments. New construction applications have yielded installation of up to 300% more cabling per conduit over rigid ducts. In occupied conduits, MaxCell’s design has allowed for easy pathway creation when overriding existing cabling or traditional innerduct while reducing total system cost.
Why do we use fabric innerduct?
As we know, fiber optic network installation is costly when you expend capacity or install a new project for fiber optic network. Fabric innerduct is a solution to save much cost via preparing space for future network capacity. When you use it, You can expect easy expanding future network cables with insert new cables inside the installed fabric innerduct.
What is the big brands of fabric innerduct to choose from?

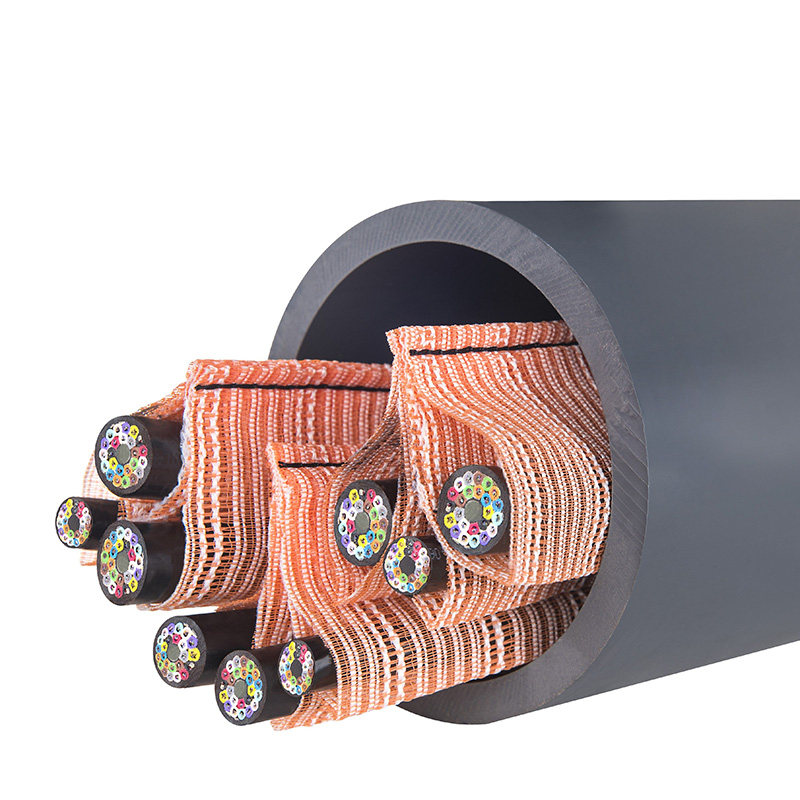

MaxCell® Edge fabric innerduct is designed to maximize the capacity of conduits in network infrastructure while preserving space for future network deployments.
Milliken’s industry-leading OptiCell technology expands your network and optimizes your operational capabilities.
What is the difference between innerduct and conduit?
In outside-plant installations, conduit is typically installed underground to protect cables from damage and to facilitate cable placement for immediate and future needs. You can also install conduit inside buildings to facilitate pulling cable between two points such as from the telecommunications closet (TC) to work-area outlets, or from an equipment room to a TC. To protect, isolate, and identify the cables, fabric innerduct–also known as subduct–may be installed inside existing larger-diameter conduit.
Where to buy fabric innerduct?
Bativ Technology
Bativ is dedicated to providing you with cost-effective and high quality fabric innerducts. Low MOQ and fast delivery. Contact for FREE sample Now.

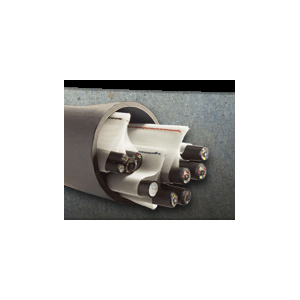

Netceed
Fabric innerduct design conforms to the shape of cables placed within, reducing cable pulling tensions while increasing cable density by as much as 300%. Thus greatly minimizing the wasted space associated with rigid innerduct.

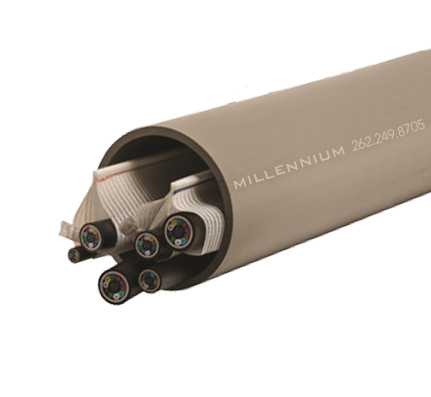

MILLENNIUM GROUP
Solves cabling issues for smaller ducts, allowing a range of cable sizes
Anixter
MaxCell Edge Fabric Innerduct, 4 in. 3-cell, 1000 ft L, Green
American Tele Data
American Tele Data now carries Maxcell’s new fabric innerduct which has” several major advantages ” over traditional innerduct products covered below. Maxcell fabric innerduct is a popular fabric innerduct product that has successfully offered several advantages over standard HDPE especially offering up to 80% fill ratios over standard innerduct. Maxcelll fabric cells are’ bound’ together in 2-2″cells, 3-3″ cells, 4- 4″-cells.

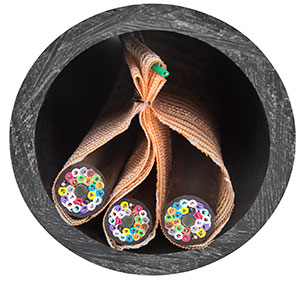

Plenum Innerduct
MaxCell® Edge Detectable fabric innerduct maximizes conduit capacity while allowing space for future network deployments. It creates additional pathways for outside plant applications, including long lines, bridge crossings, and curb-to-building entrances.
What is the most used fabric innerduct in network installation?
44 MM
| PRODUCT # | MIN CONDUIT ID | CELLS | MAX CABLE DIAMETER PER CELL | MIN BREAKING TENSILE | ELONGATION AT 50KG |
|---|---|---|---|---|---|
| MXE44181 | 38mm | 1 Cell | 18mm | 427kg | < 2.0% |
| MXE44182 | 40mm | 2 Cell | 18mm | 775kg | < 2.0% |
| MXE44183 | 42mm | 3 Cell | 18mm | 1124kg | < 2.0% |
| MXE44184 | 44mm | 4 Cell | 18mm | 1551kg | < 2.0% |
52MM
| PRODUCT # | MIN CONDUIT ID | CELLS | MAX CABLE DIAMETER PER CELL | MIN BREAKING TENSILE | ELONGATION AT 50KG |
|---|---|---|---|---|---|
| MXE52221 | 46mm | 1 Cell | 22mm | 491kg | < 2.0% |
| MXE52222 | 48mm | 2 Cell | 22mm | 902kg | < 2.0% |
| MXE52223 | 50mm | 3 Cell | 22mm | 1313kg | < 2.0% |
| MXE52224 | 52mm | 4 Cell | 22mm | 1804kg | < 2.0% |
In fabric innerduct sales, The 3 cell fabric innerducts from Maxcell are the most popular types in the market. Meanwhile, You can also contact bativ for the same specification at low cost. Free sample is available for same day shipping.
