China Leading Pre-Terminated Fiber Optic Cable Assemblies Supplier
Get the right Pre-Terminated Fiber Optic Cable at Low Cost. Grow your fiber optic business today.
Your right supplier for custom or stock Pre-Terminated Fiber Optic Cable Assemblies. We promise to be there for you if you want to scale your business. Provide you with good quality SC LC FC ST Pre-Terminated Fiber Optic Cable. With us, you have both OEM and ODM solutions in fiber connectivity.
Why Use Pre-Terminated Fiber Cable?
Preterminated cable assemblies save a vast amount of time when used for field fiber installations. Expensive splicing or polishing equipment is not needed. This cable is built to your specified length and will include a pulling sheath for installation through conduit or raceways.
Selected Pre-Terminated Fiber Optic Cable Assemblies
Benchmark to your Pre-Terminated Fiber Optic Cable Assemblies procurements, Your right supplier for Pre-Terminated Fiber Optic Cables, Please do not hesitate to contact us for any further assistance, Get big discount for large quantity today.

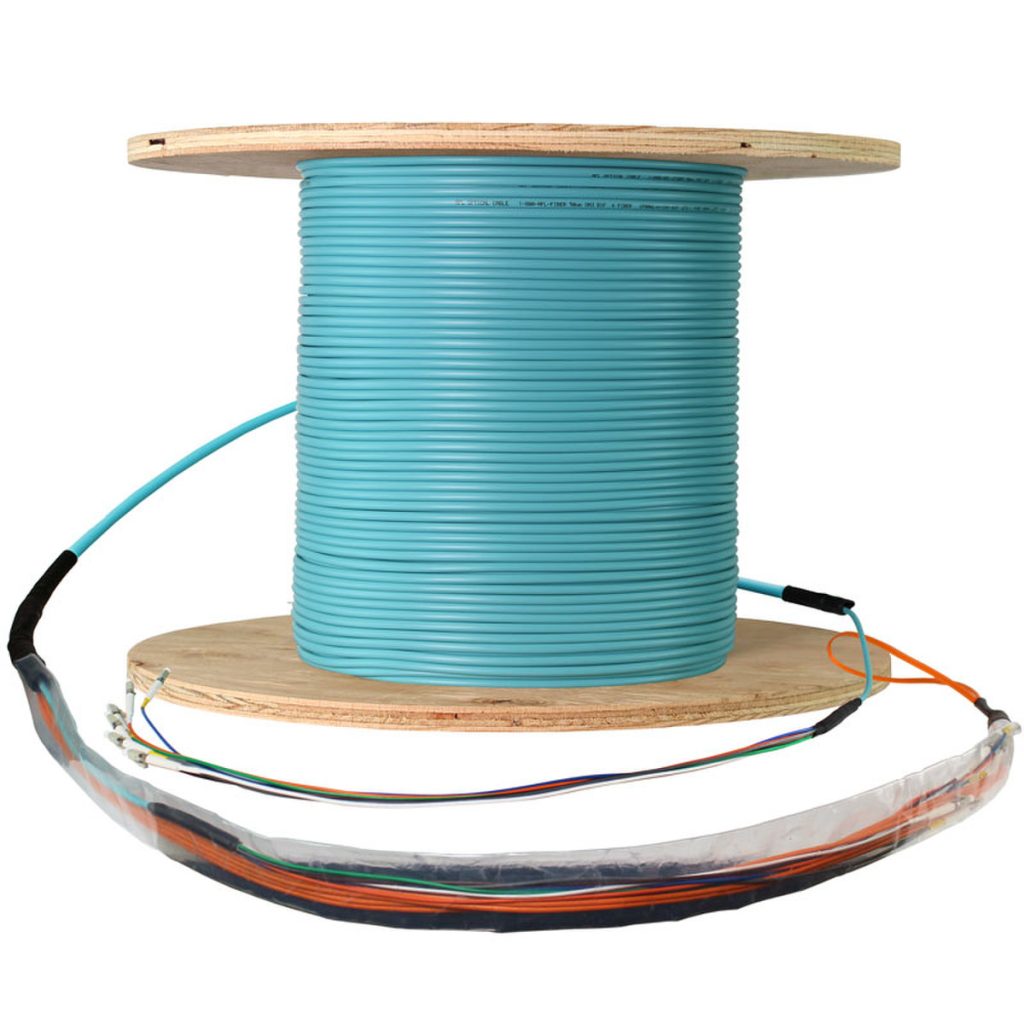

Pre-Terminated Fiber Optic Cable Assembly – 24 Strand Multimode 50/125 OM3 Indoor Plenum Fiber

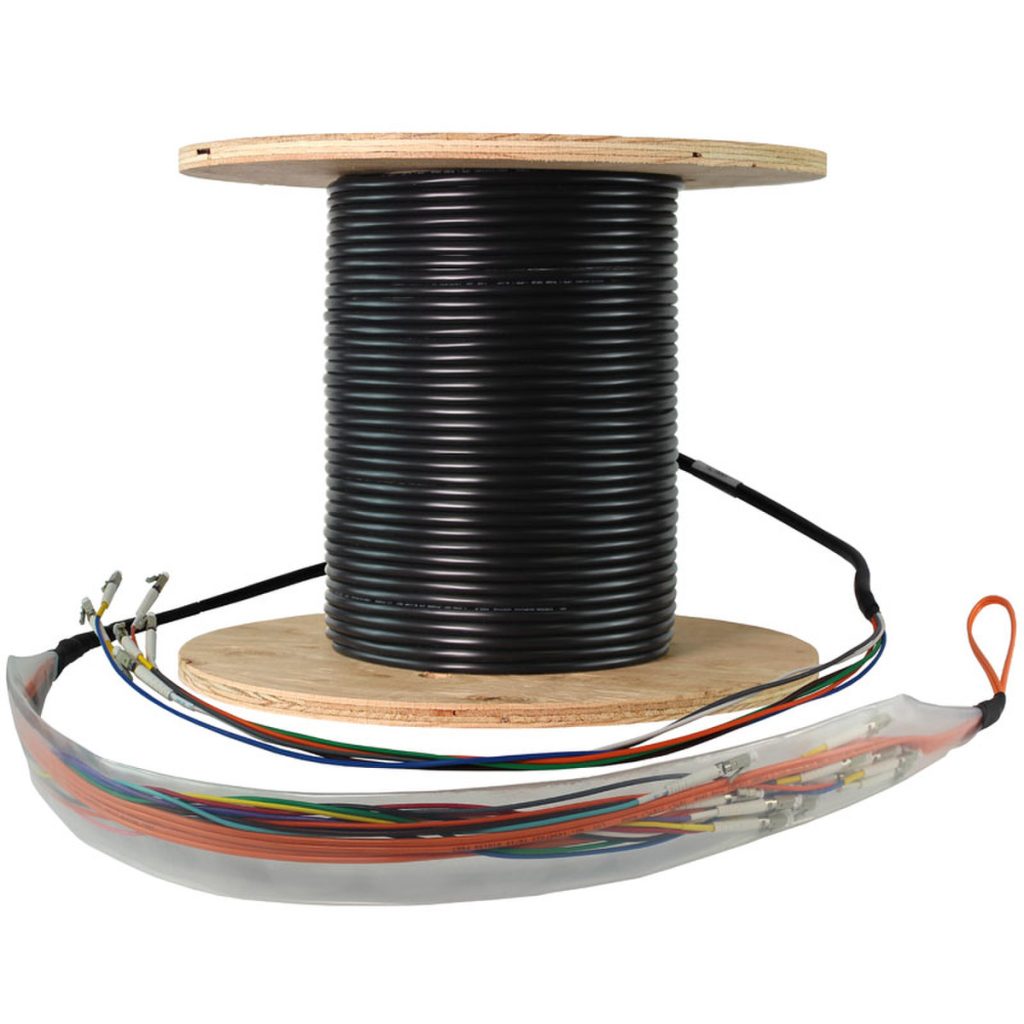

Pre-Terminated Fiber Optic Cable Assembly – 12 Strand Multimode 62.5/125 OM1 Indoor/Outdoor Riser Fiber

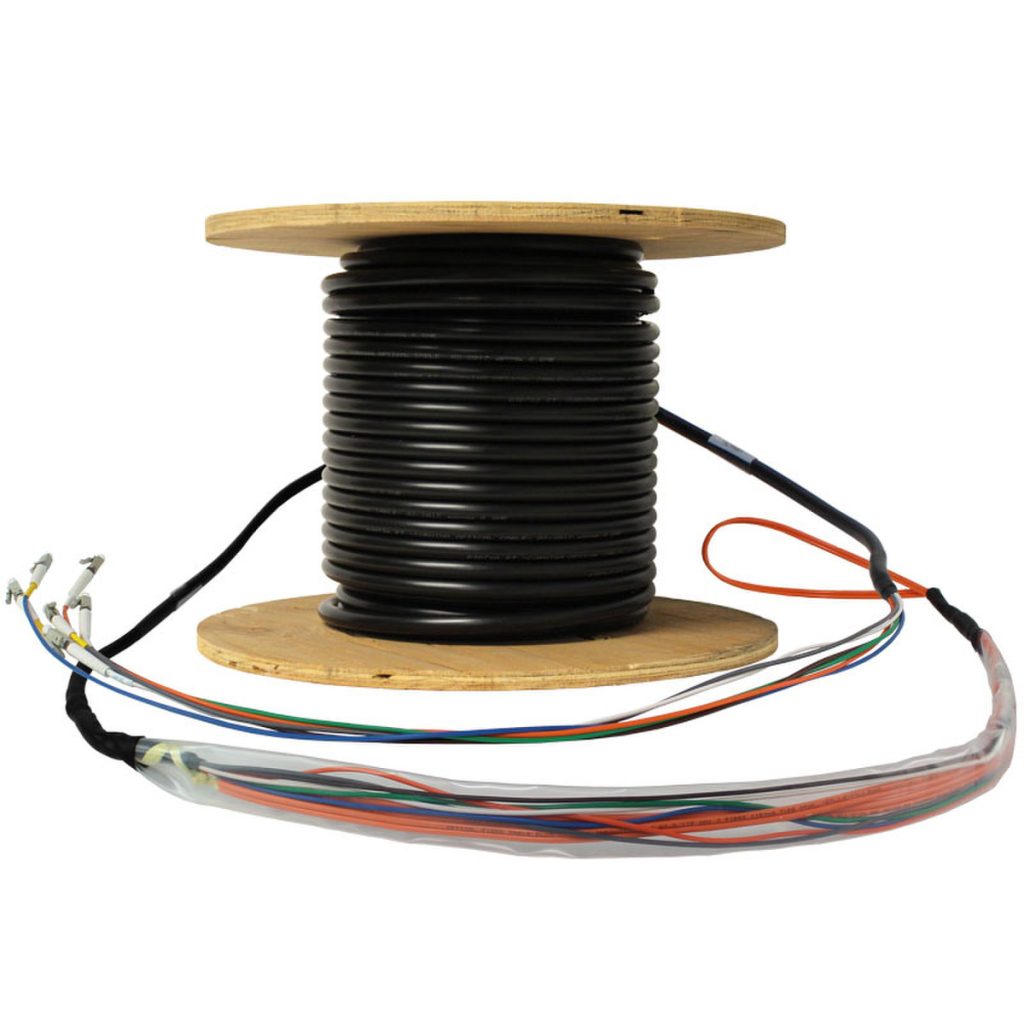

Pre-Terminated Fiber Optic Cable Assembly – 12 Strand Multimode 50/125 OM3 Outdoor Armored OSP Fiber
12 Core Multimode OM3 Fiber Optic Cable Indoor/Outdoor 50/125 OM3 Plenum Cable with MPO Connectors Pre-terminated
12 Core Multimode OM3 Fiber Optic Cable Indoor/Outdoor 50/125 OM3 Plenum Cable with LC Connectors Pre-terminated

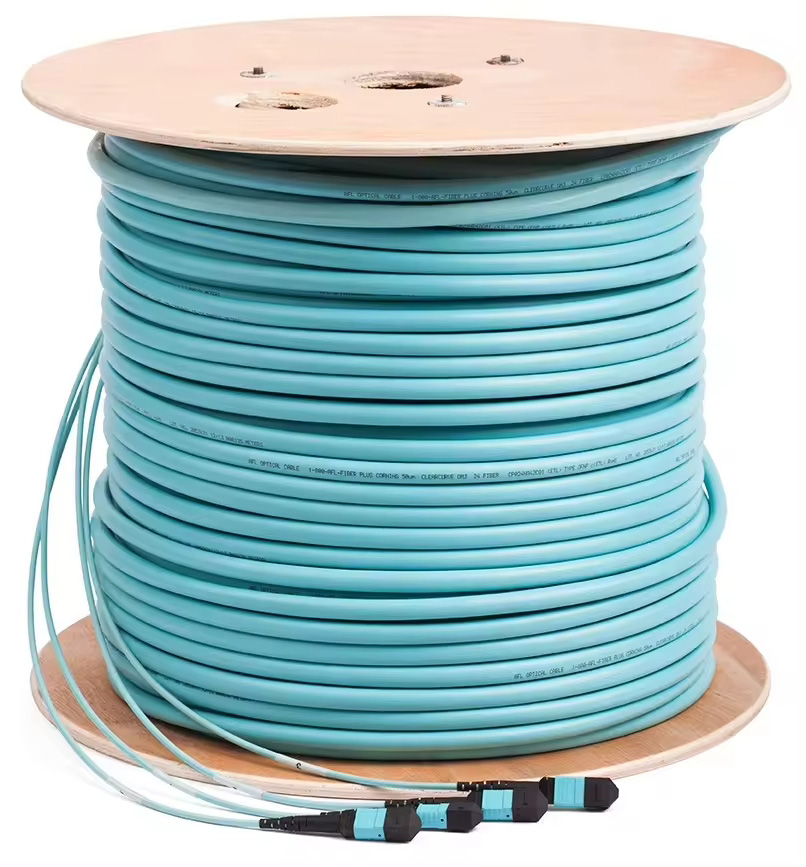

Pre-Terminated Fiber Optic Cable Assembly 4.5mm MPO Fiber Optic Cable OM3 Pre Terminated Fiber Cable
Low Insertion Loss Pre Terminated Multi Fiber Cables Single Mode 12 Core SC APC To SC UPC

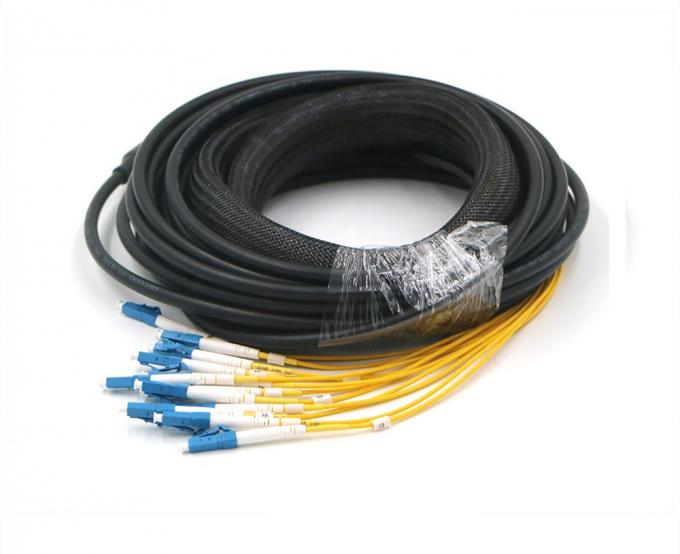

Outdoor Pre Terminated Multi Fiber Cables 12 Core LC/UPC To LC/UPC With Pulling Eyes

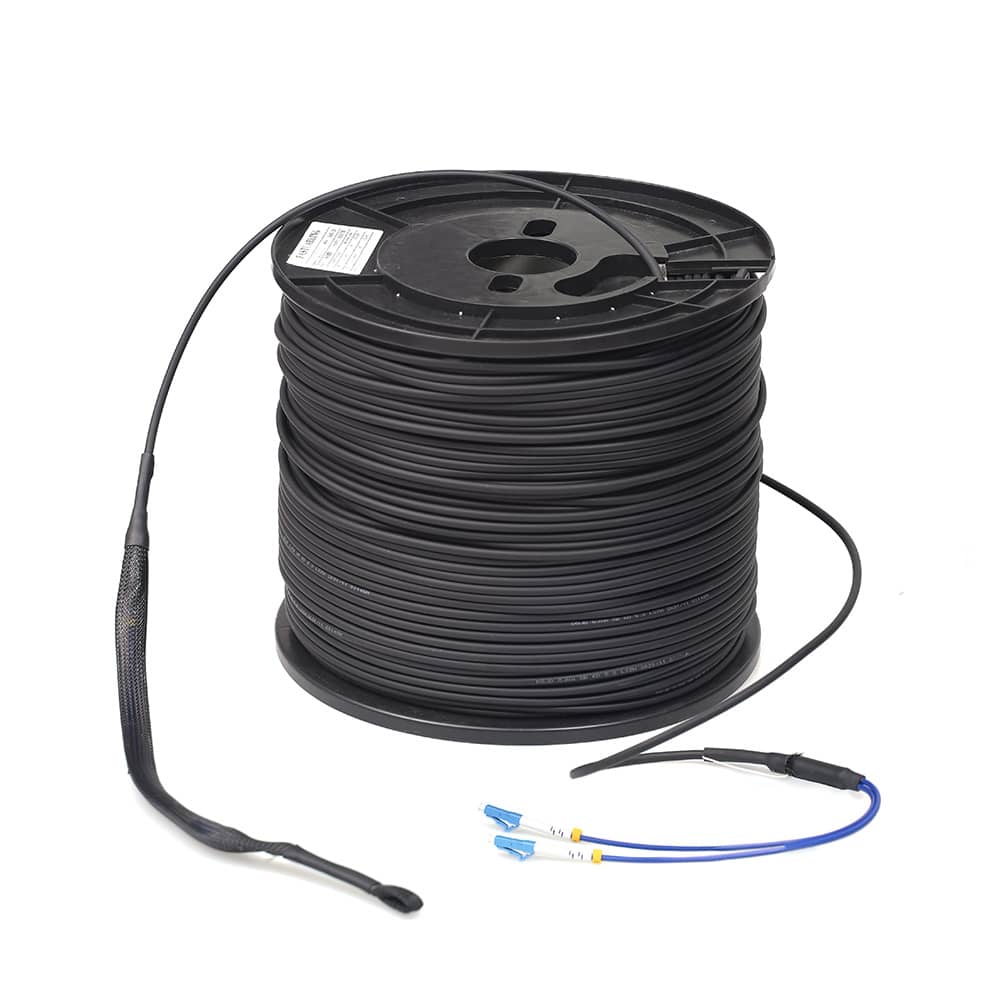

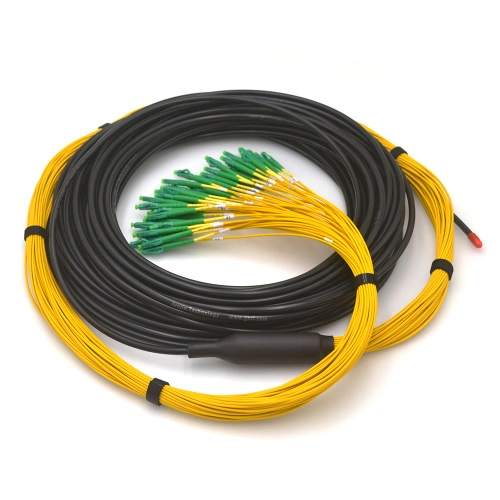

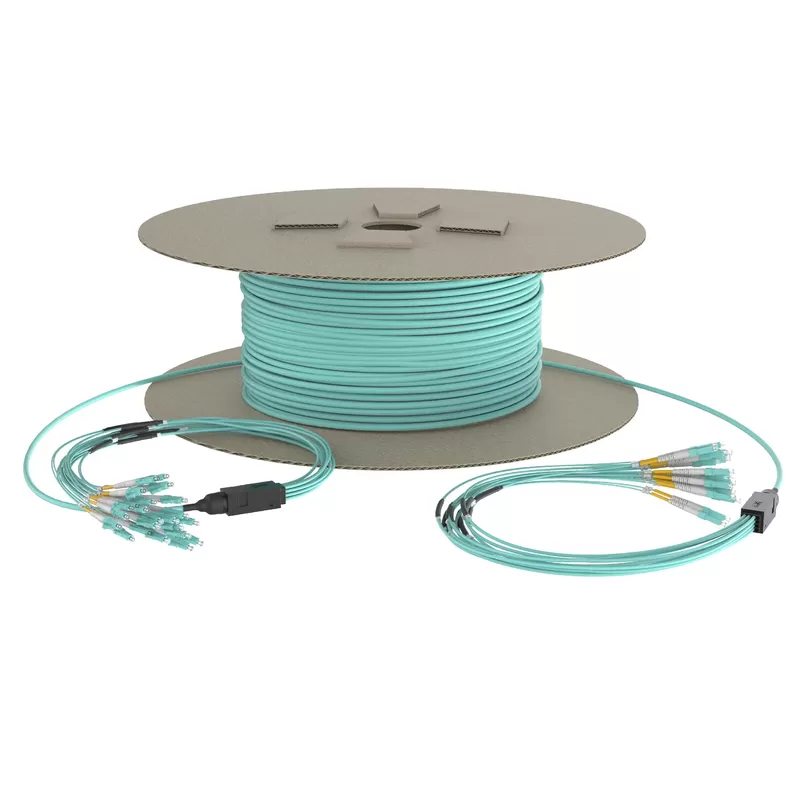

Pre-Terminated Fiber Optic Cable Assembly 48F LCAPC Single-ended Singlemode Pre-Terminated Cable on reel
Availability of Pre-Terminated Fiber Cables
For your choice of pre terminated multimode Fiber optic cables are OM1, OM3, OM4, single mode OS2 cables in 6, 12 or 24 strand using the most popular connector types. Available indoor outdoor, PVC plenum, armored and non-armored configurations.
Connector Types
We keep the following connector types in stock to ensure that we may begin your order immediately:
- SC (Multi-Mode 62.5 micron and 50 micron, Single-Mode, 10 Gig)
- ST (Multi-Mode 62.5 micron and 50 micron, Single-Mode, 10 Gig)
- LC (Multi-Mode 62.5 micron and 50 micron, Single-Mode, 10 Gig)
- FC (Multi-Mode 62.5 micron and 50 micron, Single-Mode, 10 Gig)
- MTRJ (Multi-Mode 62.5 micron and 50 micron, Single-Mode, 10 Gig)
- MTP 12 fiber and up (10 Gig)
- Angle Polish (APC) FC (Single-Mode)
- Angle Polish (APC) SC (Single-Mode)
Fiber Cable Types
We keep the following cable types in stock to ensure that we may begin your order immediately:
- OM1 — These trunk cables provide a high speed infrastructure backbone pathway available in indoor/outdoor plenum (OFNP) and riser (OFNR); armored and non-armored.
- OM3/OM4 — Available in indoor/outdoor plenum (OFNP) and riser (OFNR); armored and non-armored.
- OS2 — These trunk cables provide a high speed infrastructure backbone in a long distance pathway available in indoor/outdoor plenum (OFNP) and riser (OFNR); armored and non-armored.
FAQs
What size conduit will this cable fit through?

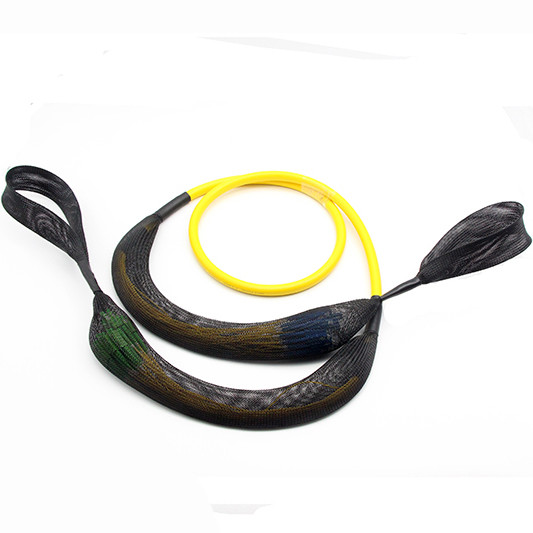

Each cable will have a different diameter and the pulling sheaths will have a minimum recommended conduit size. We have listed the minimum size conduit size each cable will fit into. Our recommendation is a general guideline as conduit pulls are very specific to the conduit path. A larger size conduit can typically handle longer runs, a conduit path with less bends will typically be an easier pull. Conduits with existing cables will have mixed results. The cable end with the pulling sheaths is meant to be run through the conduit, your pulling string should be affixed to the loop at the end of the pulling sheath. For cable assemblies with higher strand count cables the connectors will be staggered in length to allow for the smallest possible diameter.
What will the over all length of my cable be?
To calculate the over all cable length you will need to add: Cable Length + Side 1 Breakout Length + Side 2 Breakout length. The cable length is the value selected when ordering and is charged by foot. This portion of the length will have the heavy jacketing on the cable. The breakout lengths vary based on strand count and can be found in the cables specification section.
What is the breakout length?
The breakout length is the following:
- 2 Strand Cables – 8″
- 6 Strand Cables – 18″
- 12+ Strand Cables – 36″
*Cable breakout lengths will vary slightly on the pulling sheath end as they may be staggered for higher strand count cables.
How are the fibers identified?
Each of the cable assembly ends will have a protective tubing added and the tubing will be color coded to the fiber type:
| Fiber Type | Breakout Color |
|---|---|
| Multimode (OM1) | Orange Tubing |
| Multimode (OM3) | Aqua Tubing |
| Multimode (OM4) | Magenta Tubing |
| Singlemode | Yellow Tubing |

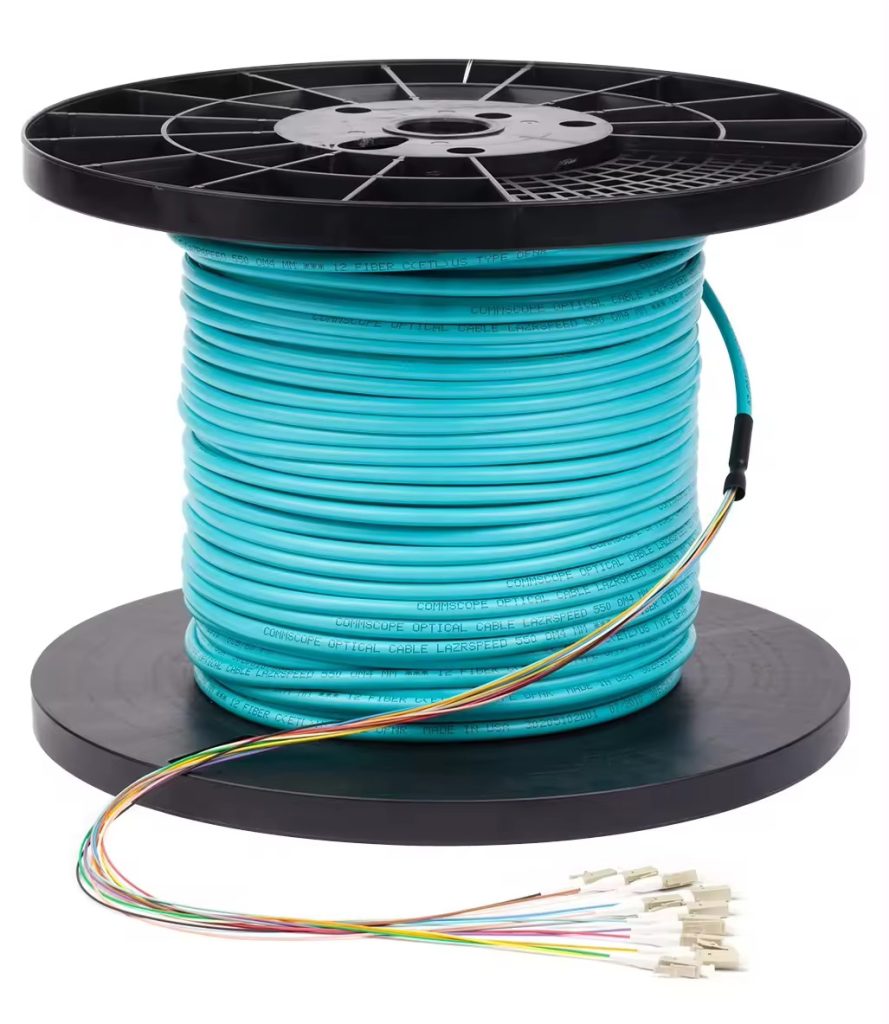

A label is then affixed to each individual fiber strand. These labels will have the fiber # printed on it. These numbers correlate with the TIA color coding standard, as underneath the protective tubing each fiber is color coded:
| Fiber Number | Color |
|---|---|
| 1 | Blue |
| 2 | Orange |
| 3 | Green |
| 4 | Brown |
| 5 | Slate |
| 6 | White |
| 7 | Red |
| 8 | Black |
| 9 | Yellow |
| 10 | Violet |
| 11 | Rose |
| 12 | Aqua |
