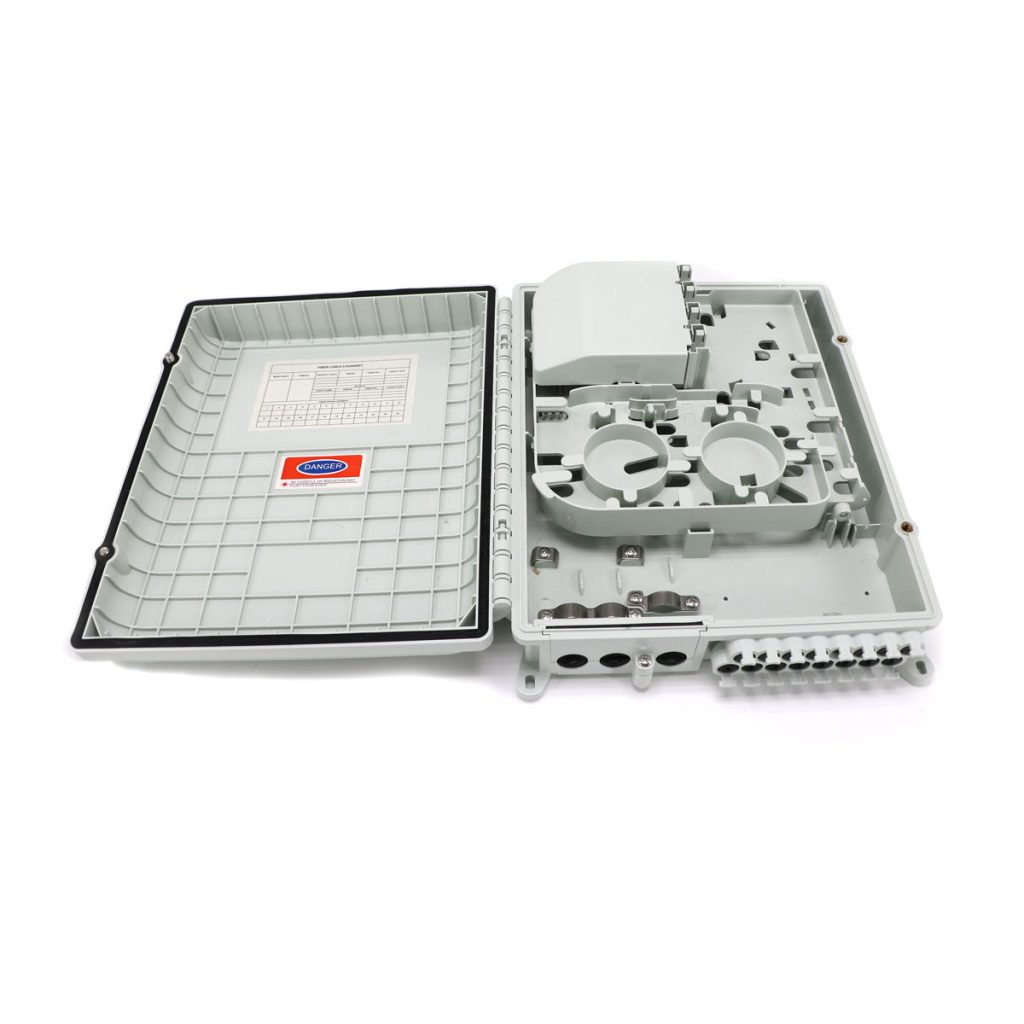

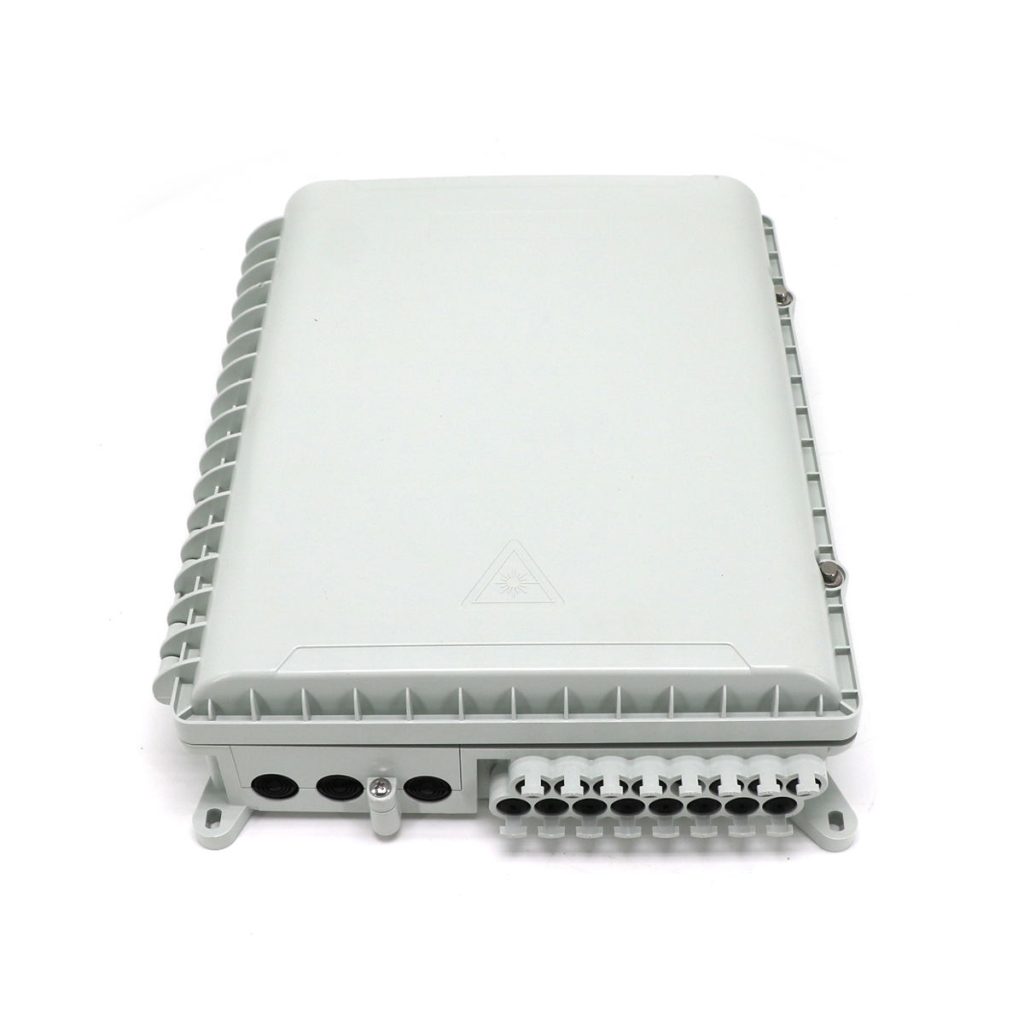

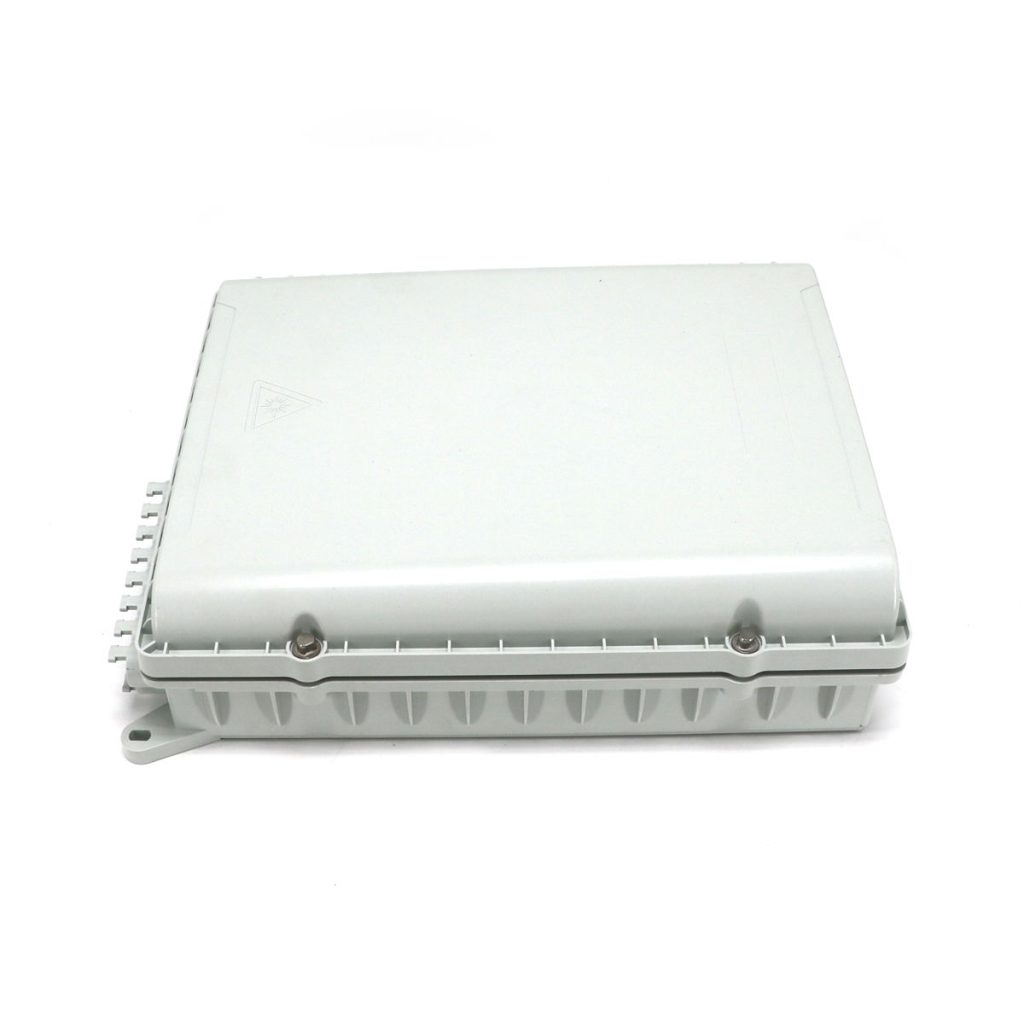

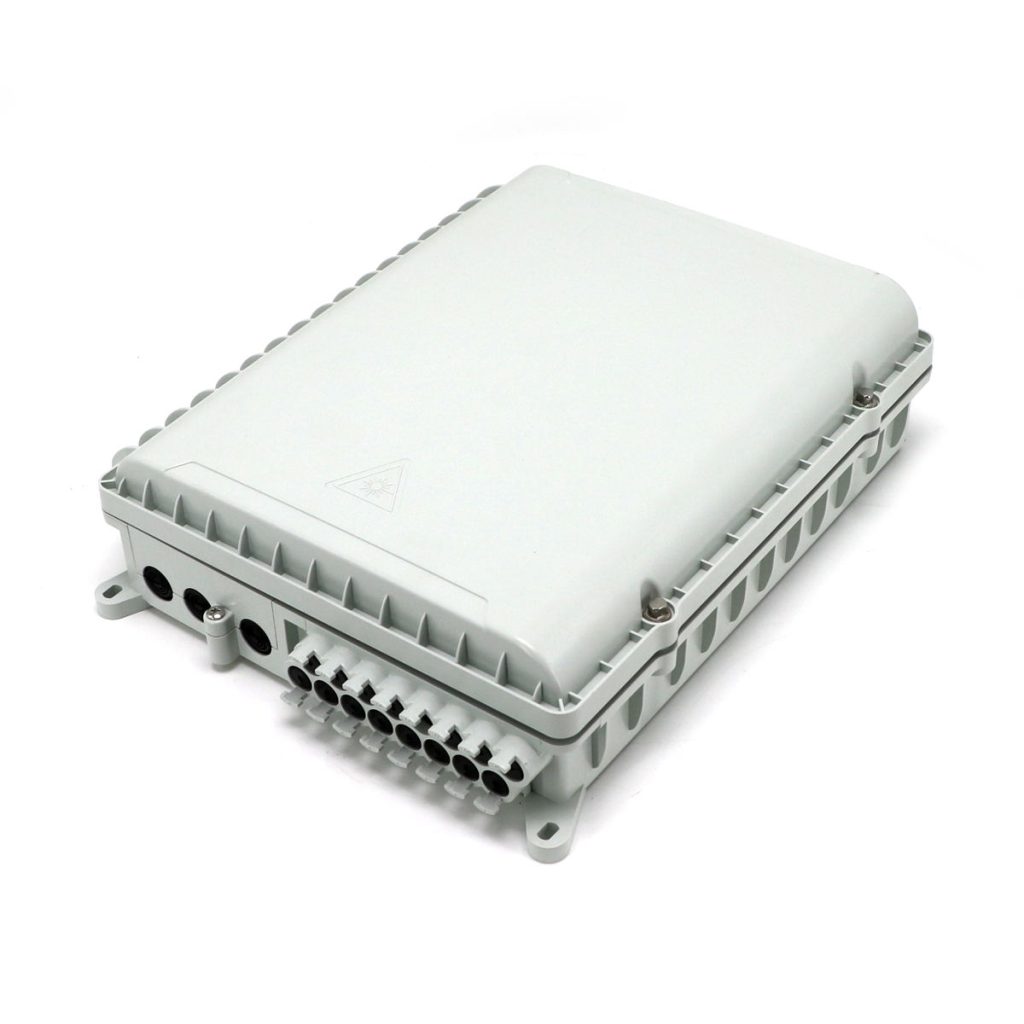

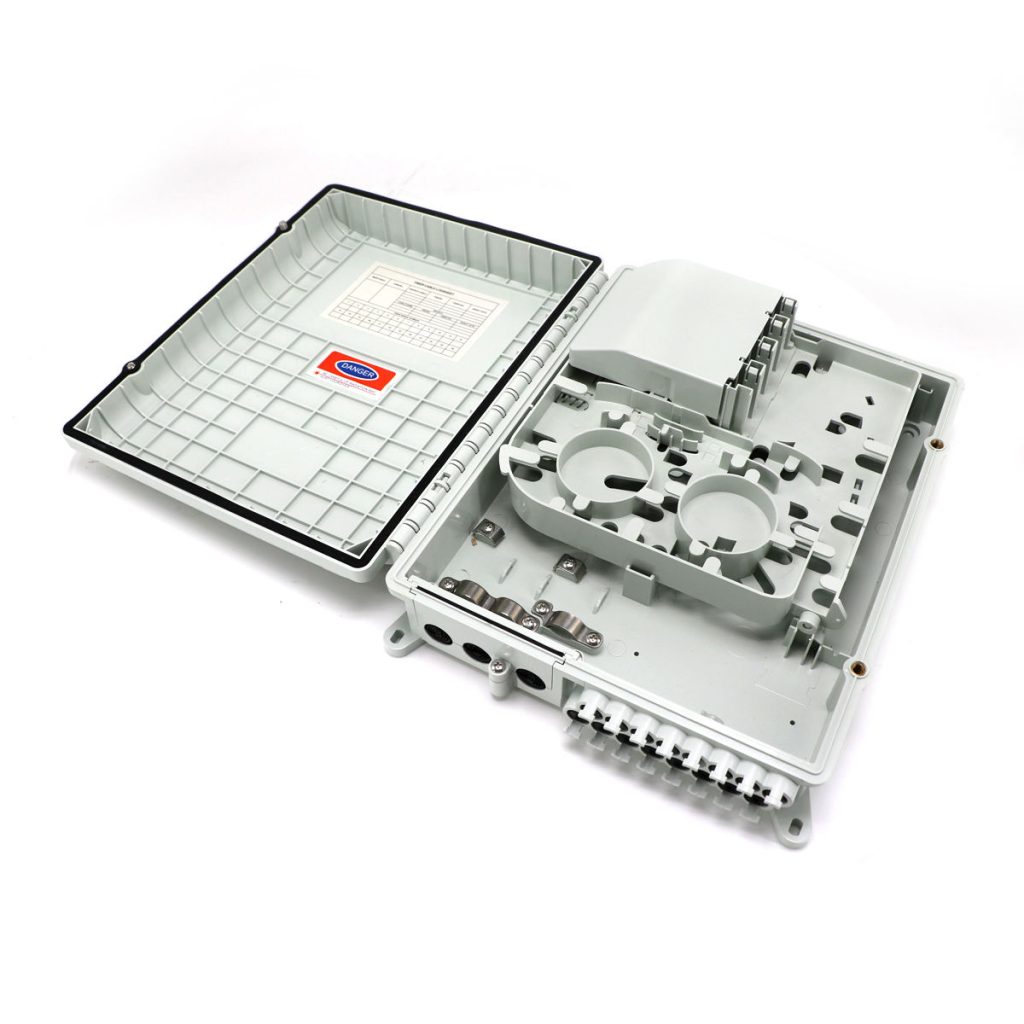

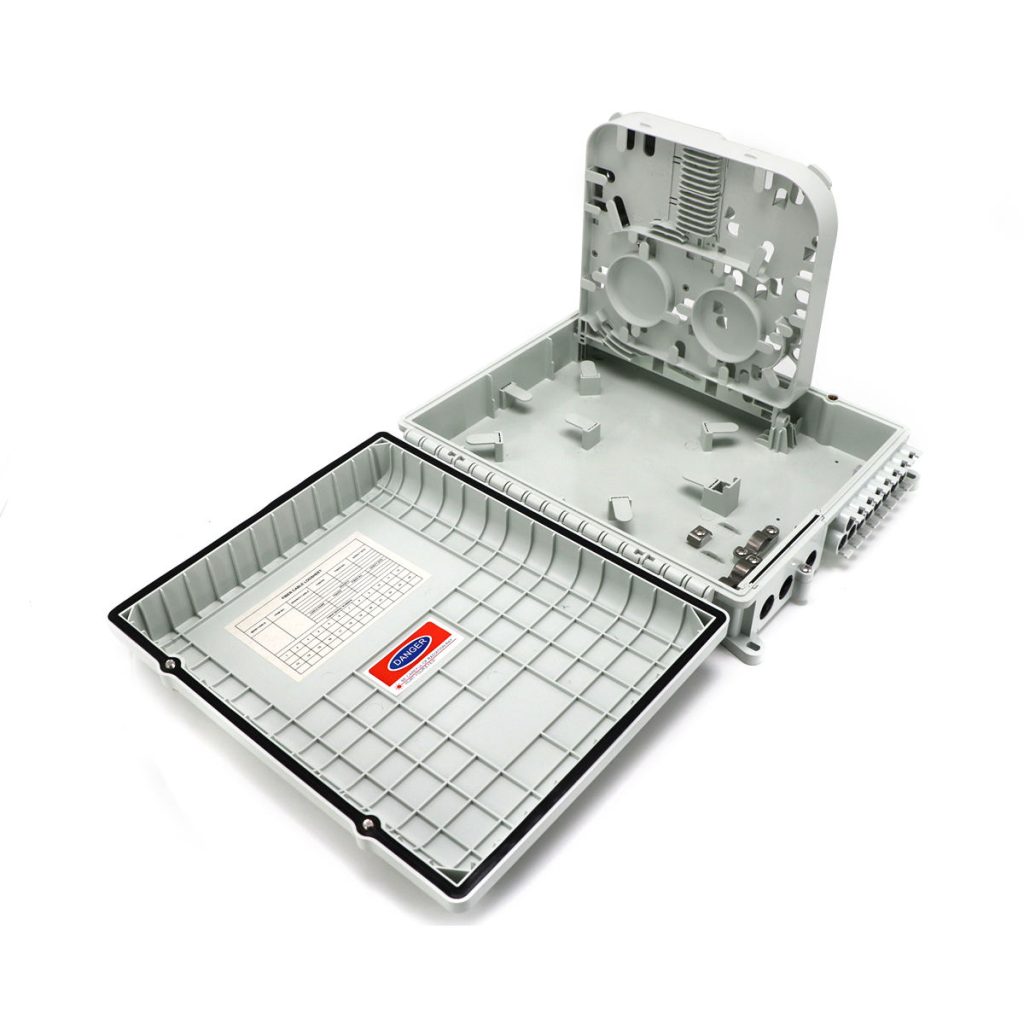

16 port outdoor fiber optic distribution box SC LC Wall Mount is used for splicing and termination between indoor SC LC FC fiber optic cable and pigtails. used for wall mounted type. You can also use this fiber distribution box for 1:16 PLC fiber optical splitter cablings to connect 16pcs drop cables.
Features
- Water-proof design with IP-65 Protection level.
- Integrated with splice cassette and cable management rods.
- Manage fibers in a reasonable fiber radius condition.
- Easy to maintain and extend the capacity.
- Fiber bend radius control more than 40mm.
- Suitable for the fusion splice or mechanical splice.
- 1 pcs of 1*16 Fiber Optic Pigtails can be installed as an option.
- Efficient cable management.
- 16 ports cable entrance for drop cable.
Specification
| Parameters | Value |
|---|---|
| Material | ABS |
| IP Protection | IP65 |
| Max. Capacity of Fiber | 8 Fibers |
| No. of Adapter/Port | 8 |
| Suitable Adapter | SC |
| Accommodate Product | 1×8 PLC Splitter or SC Pigtails |
| Inlet Port Diameter | Ф3mm |
| Outlet Port Diameter | Ф7-Ф12mm |
| Installation Type | Wall mount |
| Dimensions (HxWxD) | 280mm*220mm*80mm/ |
| Weight (g) | 1020g |
