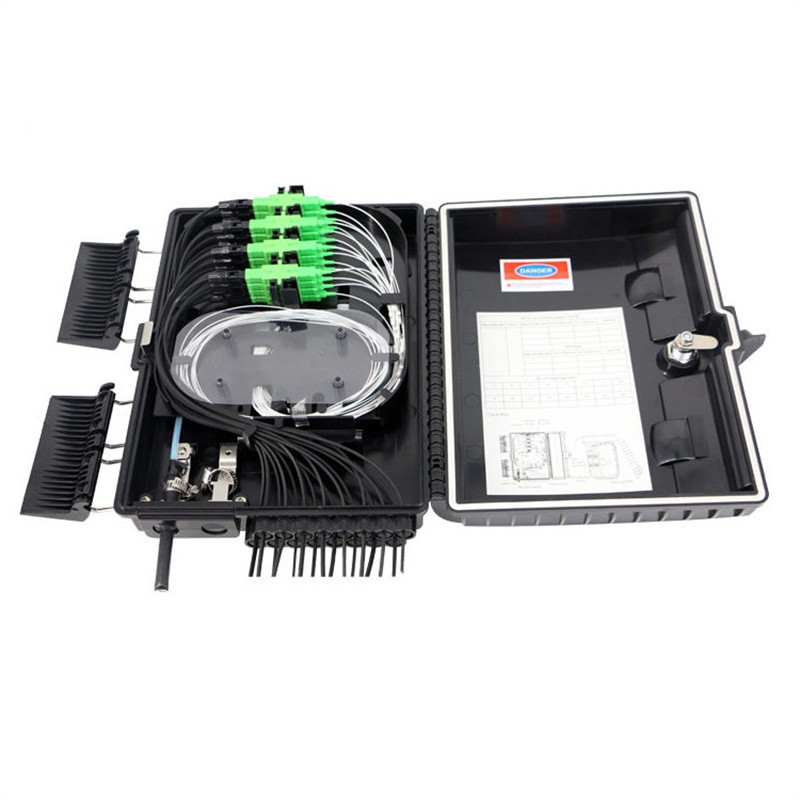

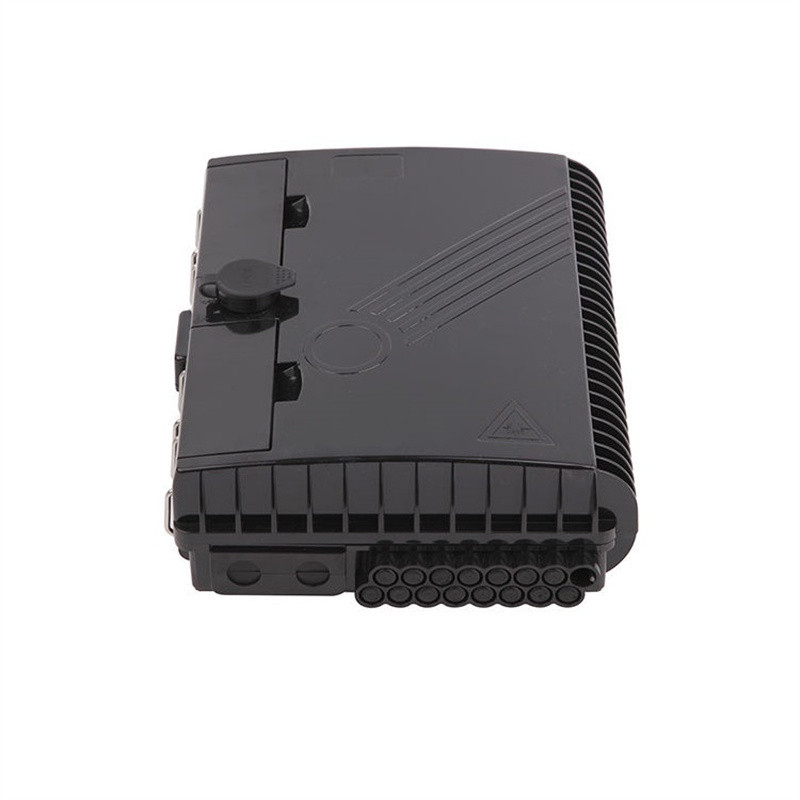

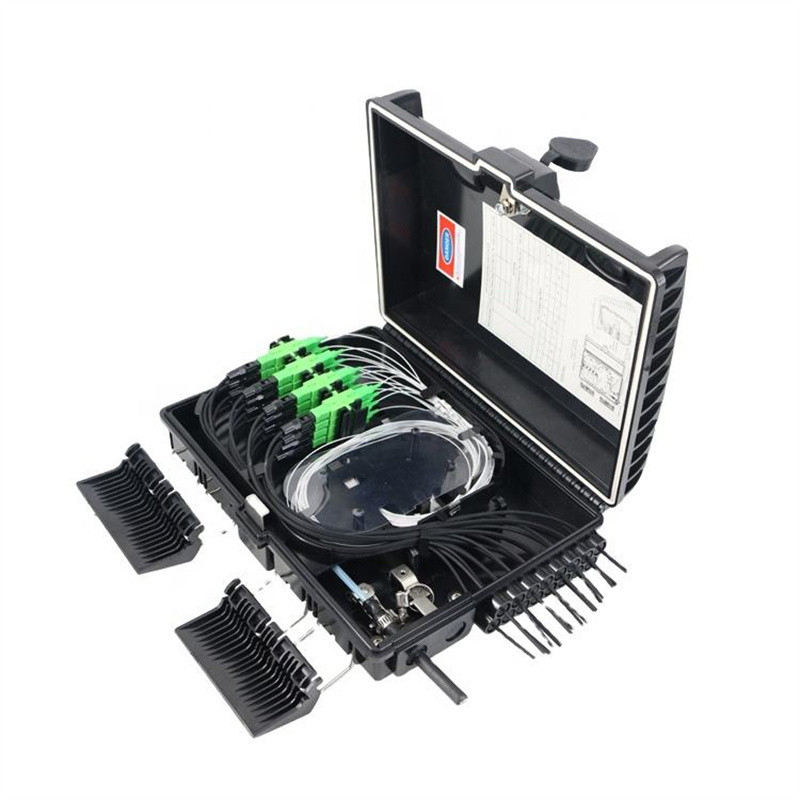

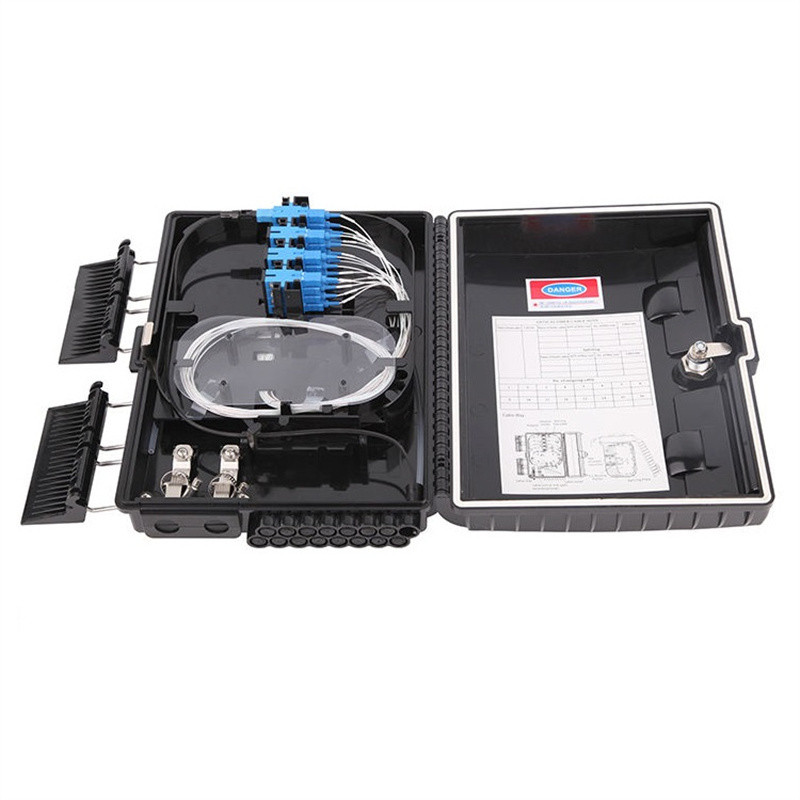

16 port Indoor / Outdoor Wall Mounted Fibre Access Termination FTTH Optical Fiber Splitter Distribution Box Enclosure – Black Color is used for UV ray protection splicing and termination. It has 2 indoor or outdoor cable entrances and 16 ports for drop fiber optic cables. You can assembly it with a 1:16 PLC splitter inside with 16pcs fast connectors drop cables.
Unload or Preloaded with 1:16 PLC fiber splitter with SC/UPC, SC/APC fiber adapters
- Free Fiber Splitter Distribution box Sample
- High Quality ABS Flame Resistant Material
- Suitable to SC LC Fiber Adapters & Pigtails
- Reasonable Bending Radius for Fiber Protection
- Bracket Panel and Metalic Lock for closing
- Maxmized space for operation
Specification
| Parameters | Value |
|---|---|
| Material | ABS |
| IP Protection | IP65 |
| Max. Capacity of Fiber | 16 Fibers |
| No. of Adapter/Port | 16 |
| Suitable Adapter | SC |
| Accommodate Product | 1×16 PLC Splitter or SC Pigtails |
| Inlet Port Diameter | Ф3mm |
| Outlet Port Diameter | Ф7-Ф12mm |
| Installation Type | Wall mount |
| Dimensions (HxWxD) | 280mm*220mm*80mm/ |
| Weight (g) | 1020g |
