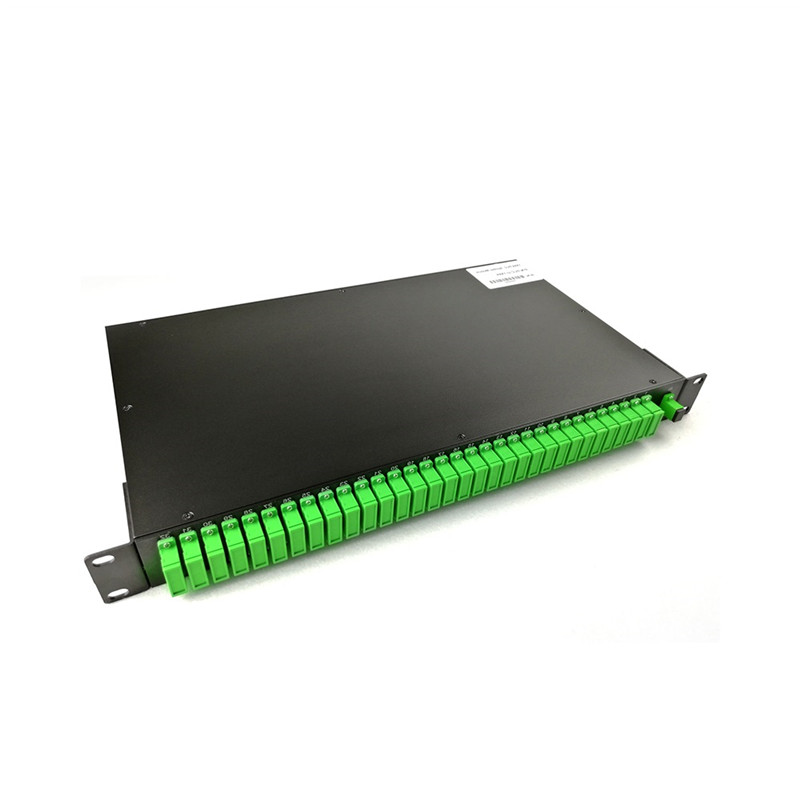

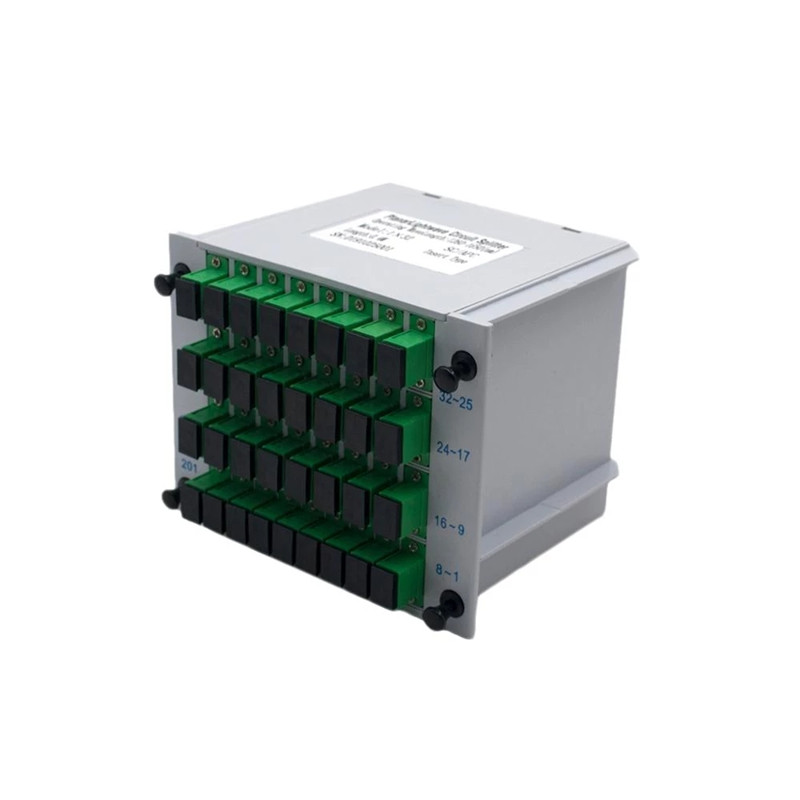

1×32 PLC Fiber Splitter, Blockless, ABS type, Cassette, Rack Mount

PLC132SC
  • Split Input Signal Evenly into 2 Output Ports
  • ≤4.0dB Low Insertion Loss and ≤0.2dB Low Polarization Dependent Loss
  • Fully Passive Optical Branching Device
  • Compact Housing Fits Racks, Wall-mounted Boxes, Optical Distribution Boxes, etc.
  • 1260~1650nm Broad Operating Wavelengths
  • G.657A1 Bend Insensitive Fibers for Low Bending Loss
  • Commonly Found in POL, Datacom, LAN, CATV, LCP, FTTx and More Applications

Overview

1×32 PLC Splitter divides or combines a signal inputs to 32 outputs.

1xN PLC splitters are precision aligning process to divide a single optical input(s) into multiple optical outputs uniformly,while 2xN PLC splitters divide a dual optical input(s) into multiple optical outputs. Fiber-Mart PLC splitters offer superior optical performance, high stability and high reliability to meet various application requirements.
Fiber-Mart provides a various of 1xN and 2xN PLC blockless splitters, including 1×2, 1×4, 1×8, 1×16,1×32, 1×64 blockless fiber type PLC splitter and 2×2, 2×4, 2×8, 2×16, 2×32, 2×64 blockless fiber type PLC splitters.

Characteristics

  • Wavelength: 1260nm / 1650nm
  • Minimum Bend Radius: 10mm – allows for tighter bending in cable routing.
  • Plug and Play Ready
  • Low Insertion Loss
  • Low Polarization Dependent Loss
  • Good channel-to-channel uniformity
  • Excellent Environmental Stability
  • Telcordia GR-1221 and GR-1209
  • Excellent Mechanical Stability

Specifications

ParametersValue
Configuration Type1×32
PLC Splitter TypeBlockless PLC Splitter
Connector TypeSC/APC
Fiber TypeSinglemode G657A1 or G652D
Fiber Length1m or 1.5m or Requested
Package StyleBlockless Steel Tube
Operating Bandwidth1260~1650nm
Fiber Diameter0.9mm
Typical Insertion Loss (≤) dB16.2
Insertion Loss (≤) dB17.1
Loss Uniformity (≤) dB1.5
Polarization Dependent Loss (≤) dB0.3
Wavelength Dependent Loss (≤) dB0.5
Return Loss (≥) dB50
Directivity (≥) dB55
Temperature Dependent Loss (≤) dB0.8

Applications

  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
