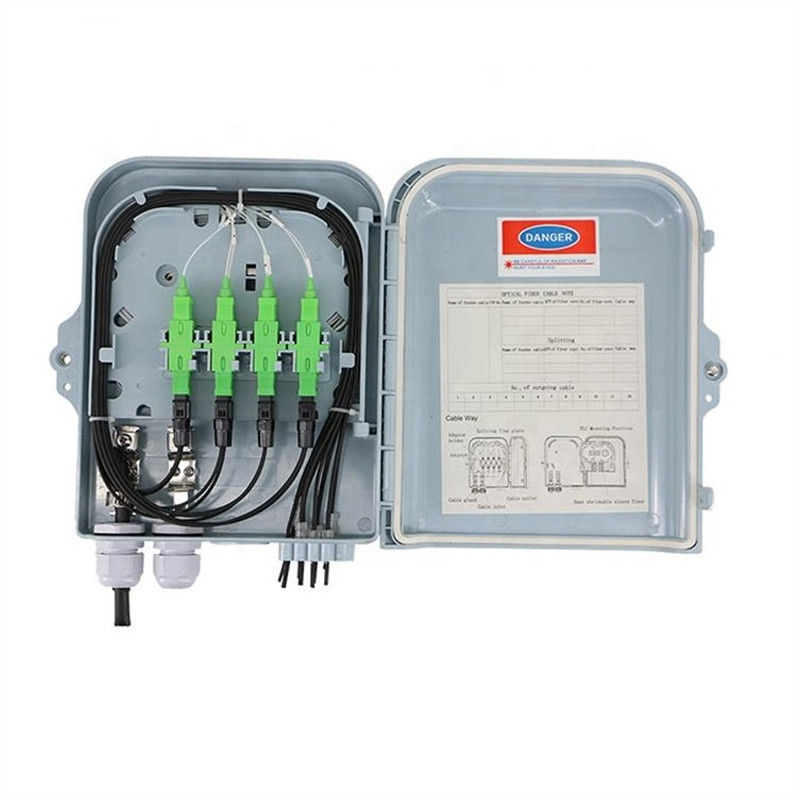

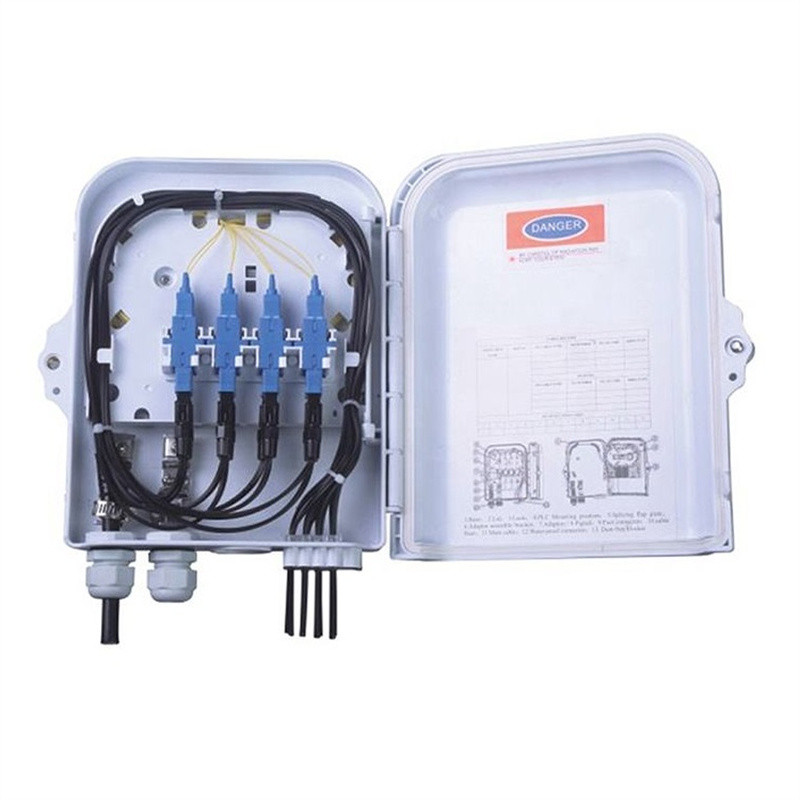

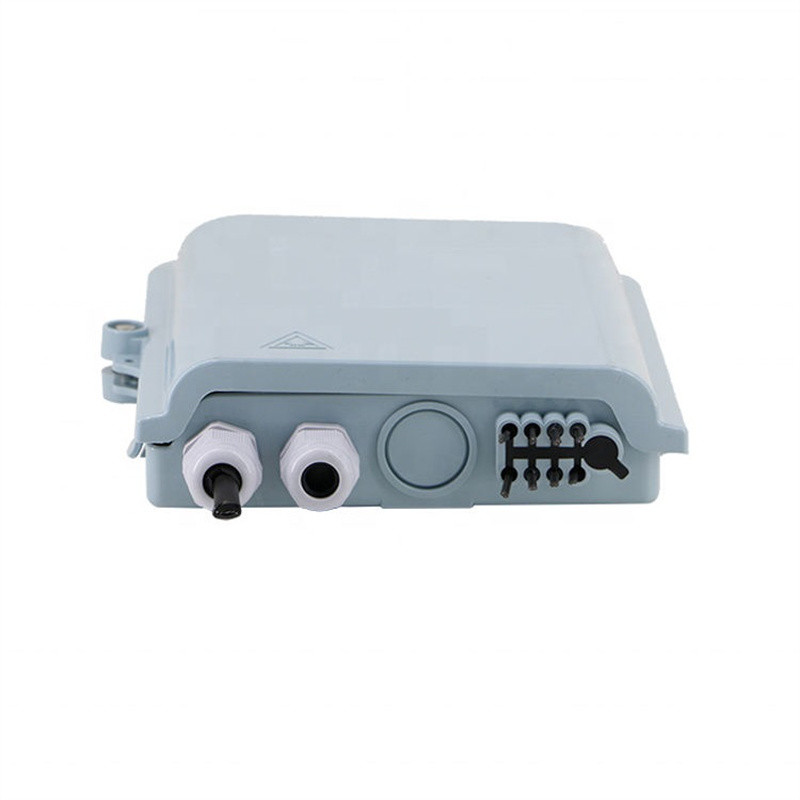

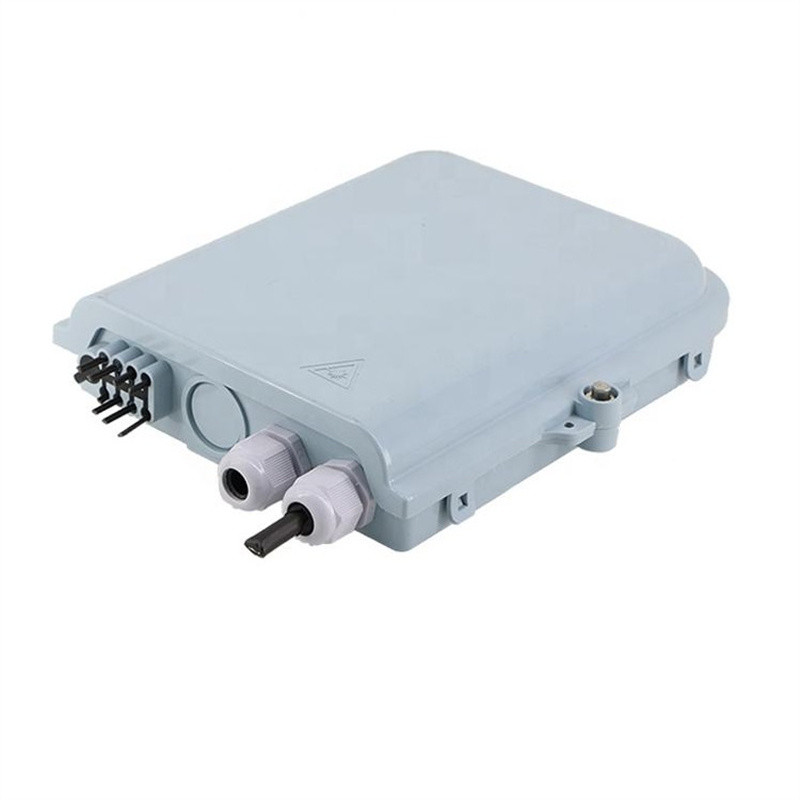

#FDB08A 8 port Optical Fiber Distribution Box Indoor / Outdoor Wall Mounted comes with 2 fiber cable ports + 8 ports for drop ftth fiber optic cables. It can install 8pcs SC/UPC or SC/APC inside the splice tray,Then you can distribution fiber optic pigtails inside this fiber termination box.
You are welcome to contact us for Free Sample with fully loaded 1×8 plc blockless fiber splitter outdoor distribution box.
- Industry Standard User Interface, with high impact plastic
- 8 port Fiber Distribution Box Free Sample Available
- Suitable to fiber pigtails and Splitters
- Can max contain 8 ports FTTH Drop cable
- 2 ports for cable and 8 ports for drop cable
- Function of anti-UV, shock resistance and waterproof
- Can contain 1*4 or 1*8 PLC splitter
Specification
| Parameters | Value |
|---|---|
| Material | ABS |
| IP Protection | IP65 |
| Max. Capacity of Fiber | 8 Fibers |
| No. of Adapter/Port | 8 |
| Suitable Adapter | SC |
| Accommodate Product | 1×8 PLC Splitter or SC Pigtails |
| Inlet Port Diameter | Ф3mm |
| Outlet Port Diameter | Ф7-Ф12mm |
| Installation Type | Wall mount |
| Dimensions (HxWxD) | 280mm*220mm*80mm/ |
| Weight (g) | 1020g |
