8 Ports Fiber Distribution Box FDB08D

FDB08D

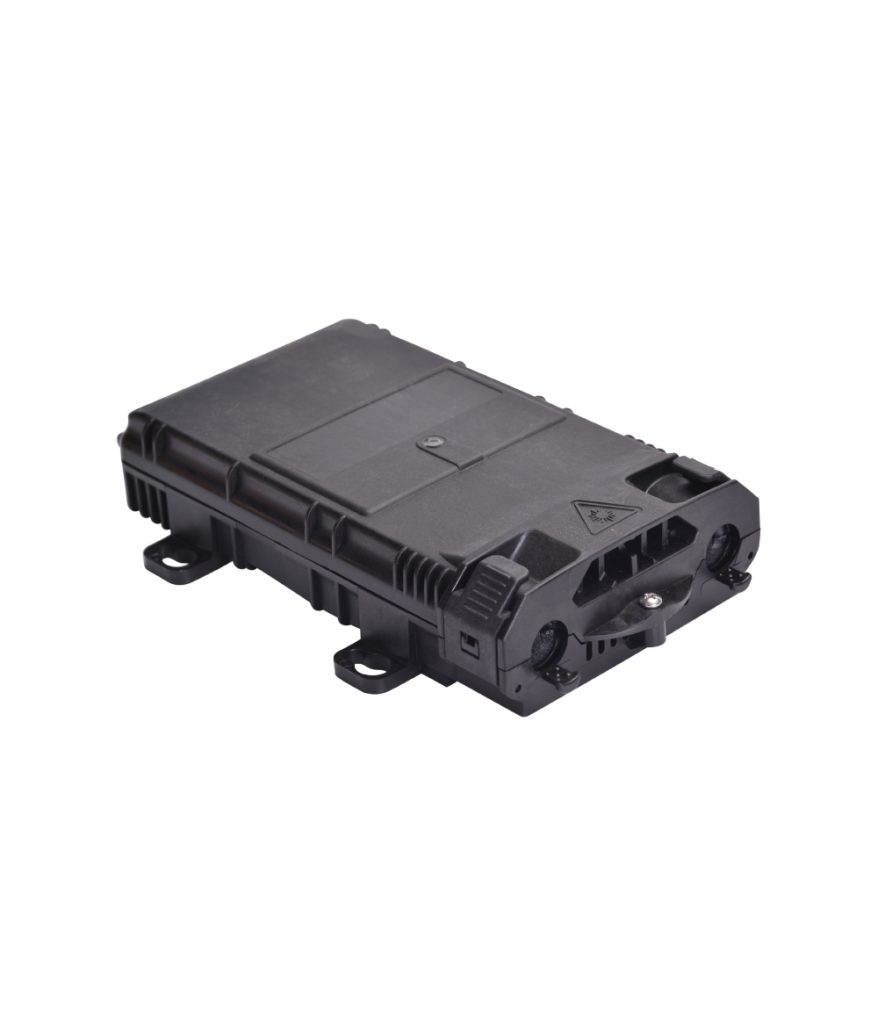

FDB08D Fiber Distribution Box Enclosures are engineered to withstand any environment while providing an easy-to-use solution for fiber-to-the-home (FTTH) installations. Our enclosure has the ability to splice up to 8 fibers and compatible with SC or LC adapters or pigtails.

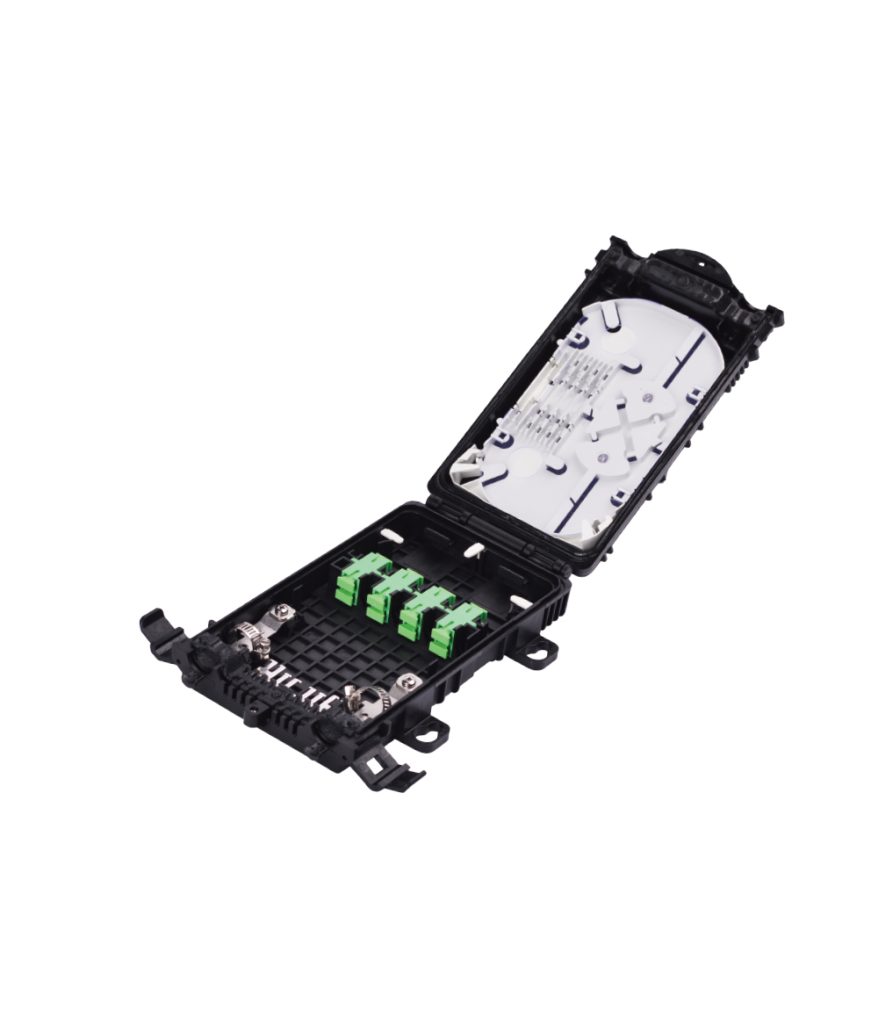

#FDB08D Fiber Distribution Box is a butt type gel sealed fiber optic splicing and patching box designed for fiber access point applications in the telecom outside plant network, has 4 main cable ports and 8 drop cable ports. Loop storage of 6m loose tubes allows 2 main cables loop through at the same time. The box accommodates up to 24 fusion splices (or 8 mechanical splices), two PLC splitters and 8 SC adapters. Sealing is achieved via built-in gel technology, resulting in extremely convenient re-entry and re-sealing.

You are welcome to contact us for Free Sample with fully loaded 1×8 plc blockless fiber splitter outdoor distribution box.

  • Industry Standard User Interface, with high impact plastic
  • 8 port Fiber Distribution Box Free Sample Available
  • Suitable to fiber pigtails and Splitters
  • Can max contain 8 ports FTTH Drop cable
  • 2 ports for cable and 8 ports for drop cable
  • Function of anti-UV, shock resistance and waterproof
  • Can contain 1*4 or 1*8 PLC splitter

Specification

Product8 Ports Fiber Distribution Box FDB08D
MaterialPP
IP ProtectionIP67
Max. Capacity of Fiber8 Fibers
No. of Adapter/Port8
Suitable AdapterSC
Accommodate Product1×8 PLC Splitter or SC Pigtails
Inlet Port DiameterФ3mm
Outlet Port DiameterФ7-Ф12mm
Installation TypePole mounting, Pedestal mounting,Strand mounting,Wall mounting
Dimensions (HxWxD)235*153*52mm
Weight (g)650g
