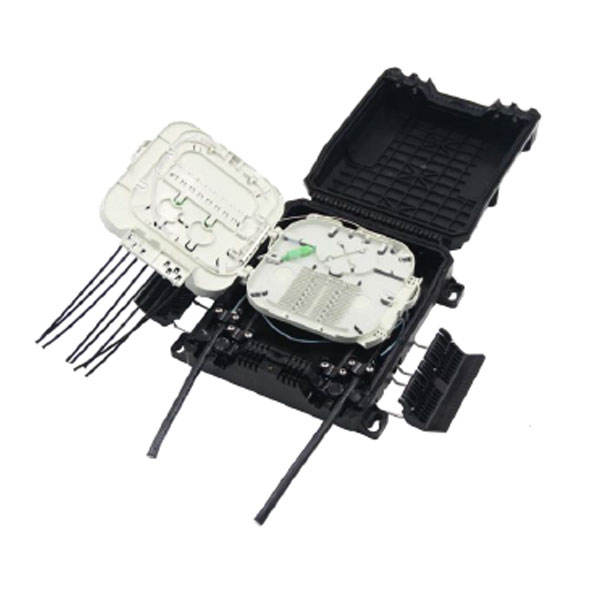

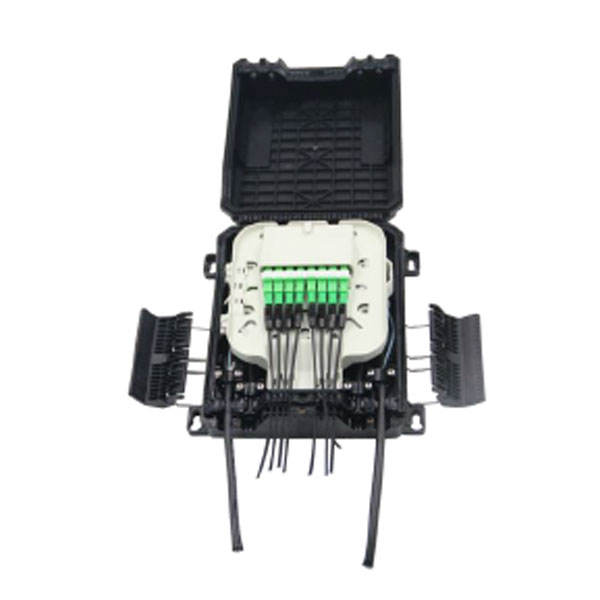

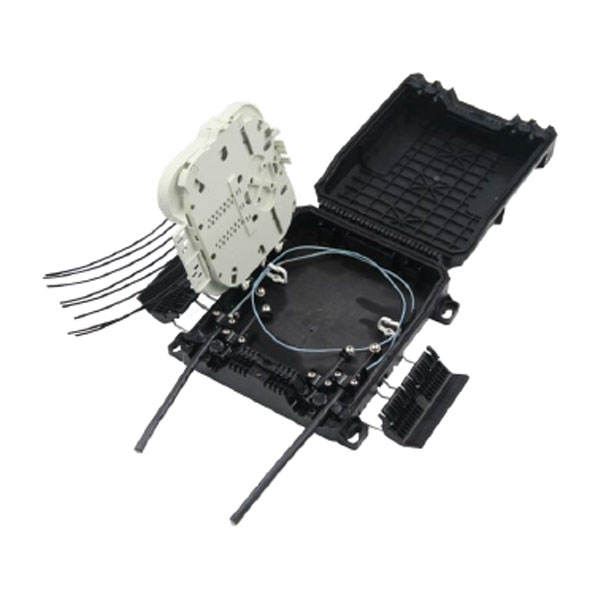

#FDB08E Fiber Distribution Box is a butt type gel sealed fiber optic splicing and patching box designed for fiber access point applications in the telecom outside plant network, has 4 main cable ports and 8 drop cable ports. Loop storage of 6m loose tubes allows 2 main cables loop through at the same time. The box accommodates up to 24 fusion splices (or 8 mechanical splices), two PLC splitters and 8 SC adapters. Sealing is achieved via built-in gel technology, resulting in extremely convenient re-entry and re-sealing.
You are welcome to contact us for Free Sample with fully loaded 1×8 plc blockless fiber splitter outdoor distribution box.
- Industry Standard User Interface, with high impact plastic
- 8 port Fiber Distribution Box Free Sample Available
- Suitable to fiber pigtails and Splitters
- Can max contain 8 ports FTTH Drop cable
- 2 ports for cable and 8 ports for drop cable
- Function of anti-UV, shock resistance and waterproof
- Can contain 1*4 or 1*8 PLC splitter
Specification
| Product | 8 Ports Fiber Distribution Box FDB08E |
|---|---|
| Material | ABS |
| IP Protection | IP65 |
| Max. Capacity of Fiber | 8 Fibers |
| No. of Adapter/Port | 8 |
| Suitable Adapter | SC |
| Accommodate Product | 1×8 PLC Splitter or SC Pigtails |
| Inlet Port Diameter | Ф3mm |
| Outlet Port Diameter | Ф7-Ф12mm |
| Installation Type | Wall mount |
| Dimensions (HxWxD) | 280mm*220mm*80mm/ |
| Weight (g) | 1020g |
