Introduction
Multiport Service Terminals for use in outside plant fiber access networks in Fiber-To-The-X(FTTx) solutions.
Our products offer fast deployment, plug & play applications that help shortening installation time and reducing costs required to connect customers in FTTx networks.
Quick access to your network allows maintenance and troubleshooting, allowing incremental connection of subscribers.
The IP rate of our Multiport Service Terminals ensures resistance to outdoor environmental conditions.
This Multiport Service Terminal is designed specifically for last mile applications as the externally mounted hardened adapters offer an easy “plug-and-play” solution, allowing future installation without closure re-entry.

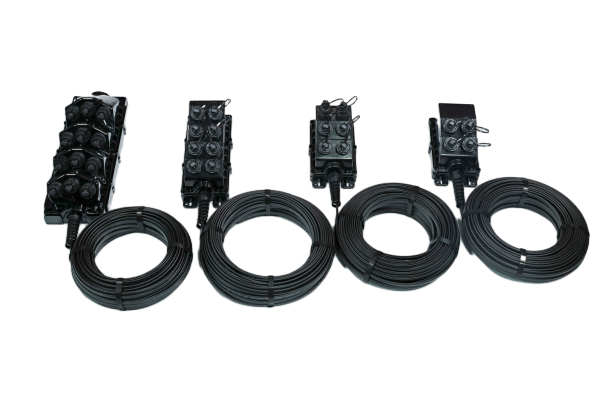

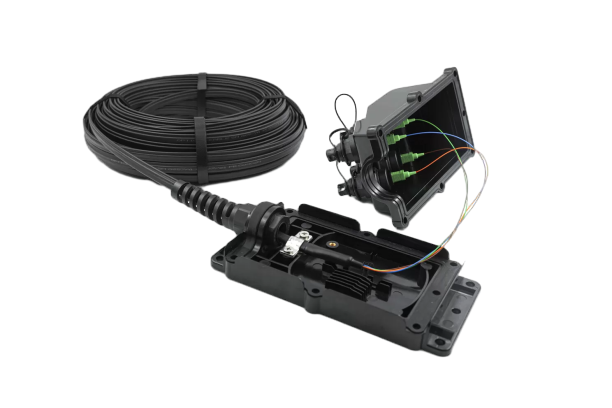

This MST has a capacity of up to 8 connector ports pre-connectorized with the corresponding pigtail and can be adapted depending on the configuration.
Features
- High compatibility: can be assembled ODVA, H connector(OptiTap compatible), Mini SC, ODC, PTLC, PTMPO or power adapter
- Factory-sealed or field assembly
- IP68 water and dust protection
- Strong enough: working under 1200N pulling force long term

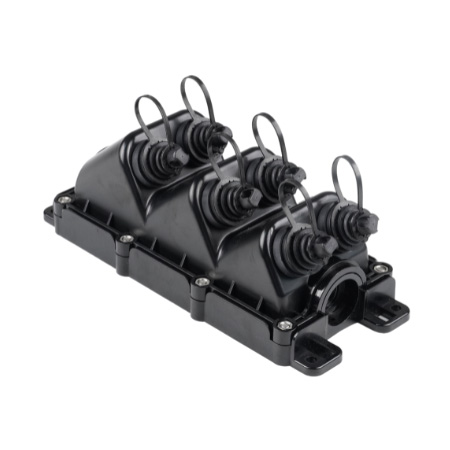

- From 2 to 12 ports for single or multifiber harsh connectors
- IP68 waterproof rating
- Wall-mounting, aerial installation or holding pole installation
- Decreased angle surface and height make sure no connector interfering when operating
- Meet IEC 61753-1 standard
- Cost effective: save 40% operating time

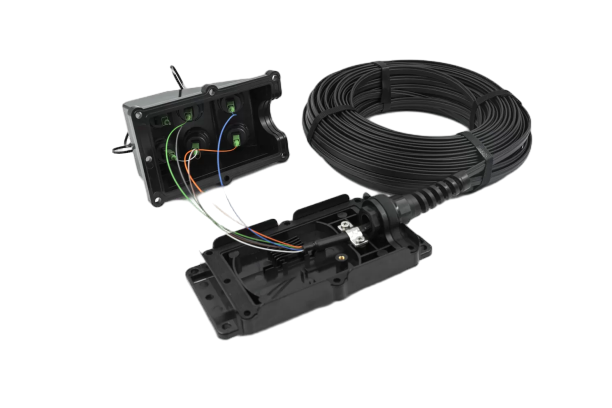

- Available with PLC or splice sleeve for fiber divide
Specification
| Dimensions(LxWxH) | 210x105x93mm(4Core) 283x105x95mm(8Core) |
| Ingress Protection | IP68 |
| Working Temperature | -40~85℃ |
| Cable Strength Member | Armoured or Non-armoured |
| Cable Type | Hybrid or non-hybrid |
| Round Cable OD | 5.0mm to 14.0mm |
| Flat Cable Dimension | 4.6×8.9mm |
| Cable Jacket Material | LSZH,PE or TPU |
| Bending Radius | 20D |
| Cable Crush Resistance | 200N/cm long term |
| Tensile Strength | 1200N long term |
| UV Resistance | ISO 4892-3 |
| Fire Protection Rating | UL94-V0 |
| Number of PLC | 1~2pcs |
| Number of Fusion Protection Sleeves | 1~24pcs |
