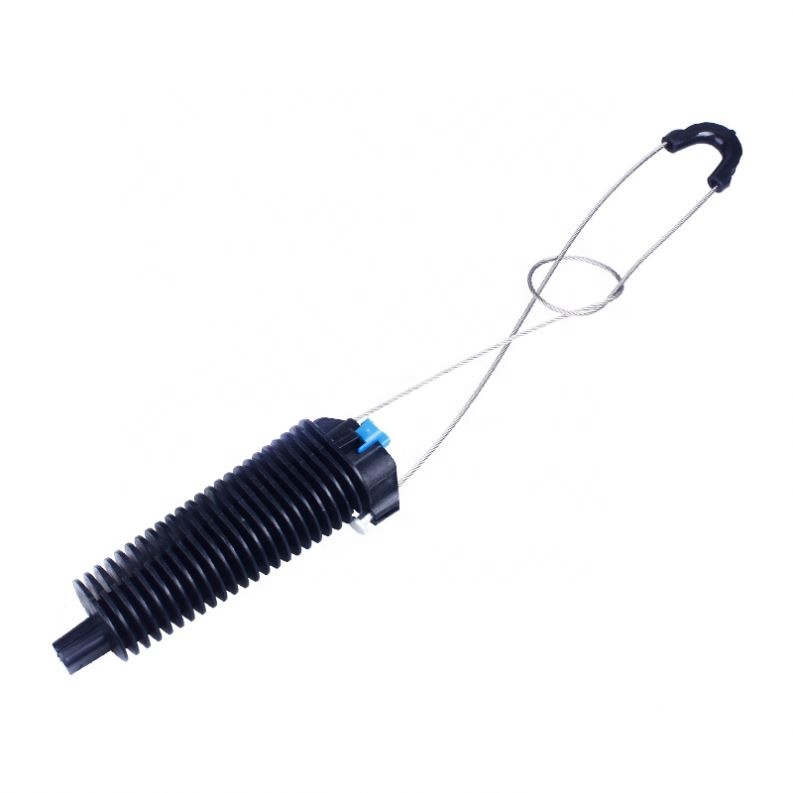

The Anchor Clamp for ADSS Cable PA2000 is a high-performance aerial strain clamp engineered for securing All-Dielectric Self-Supporting (ADSS) fiber optic cables in outdoor aerial installations. Constructed with UV-resistant, high-strength plastic (PA66) and stainless steel components, the PA2000 clamp offers excellent mechanical strength, resistance to environmental stress, and long-term reliability for overhead cable networks.
Reliable Cable Dead-End Solution
The PA2000 Anchor Clamp for ADSS Cable is designed for use as a dead-end cable clamp at termination poles and for supporting intermediate angles or spans with significant differences in length. Its self-adjustable wedge mechanism and easy-installation design make it an ideal choice for both new deployments and network upgrades. With a minimum breaking load of 10 kN, this anchor clamp is engineered to withstand dynamic tension caused by wind, ice, temperature variations, and Aeolian vibrations.
Key Features of the PA2000 Anchor Clamp for ADSS Cable
- Self-Adjustable Wedge Design: Simplifies the installation process. The clamp automatically adjusts to the cable diameter for a secure fit, reducing installation time and labor.
- High-Strength Materials: Manufactured with PA66 plastic for superior UV resistance and a flexible stainless steel bail for high tensile strength and corrosion resistance.
- Wide Cable Compatibility: Supports cable diameters from 12mm to 16mm, making it suitable for a variety of ADSS cable configurations.
- Durable Stainless Steel Bail: Provides flexibility and robust resistance to mechanical stress and oscillations.
- High Load Capacity: Withstands a minimum breaking load of 10 kN depending on cable type and installation conditions.
- Tool-Free Installation: Designed for fast and secure mounting with standard pole brackets and hooks.
- Long Service Life: Engineered to endure harsh outdoor environments for decades without degradation.
- Adjustable Bail Length: Stainless steel bail length of 300 mm offers installation flexibility.
Technical Specifications
| Clamp Type | Cable Diameter (mm) | Materials | Min Breaking Load (kN) | Bail Length (mm) | Packaging |
|---|---|---|---|---|---|
| PA2000 | 12–16 | PA66, Stainless Steel Wire | 10 | 300 | 47×31×35 cm, 33 pcs/carton |
Application Scenarios
The Anchor Clamp for ADSS Cable PA2000 is widely used in:
- End Poles: As a cable dead-end clamp at termination points, using a single clamp per cable end.
- Jointing or Intermediate Angle Poles: When the cable route has a directional change exceeding 20°, two clamps can be installed as a double dead-end for extra support.
- Hilly or Uneven Terrain: Ideal for locations where spans vary in length or elevation, providing reliable cable tensioning and stability.
Engineered for Harsh Environments
ADSS aerial cable networks are exposed to a variety of environmental challenges over their lifespan, including:
- Wind-induced oscillations and pressure
- Accumulated ice sleeve weight
- Wide temperature fluctuations
- Aeolian (wind-induced) vibrations
- Corrosive elements and UV radiation
The PA2000 Anchor Clamp for ADSS Cable is specifically engineered to handle these stresses. The use of durable PA66 and stainless steel ensures the clamp’s resilience and operational performance throughout decades of service, reducing the need for maintenance or premature replacement.
Benefits of Using PA2000 Anchor Clamp for ADSS Cable
- Increases the reliability and safety of your aerial fiber optic network.
- Ensures compatibility with most ADSS cable types in the 12–16mm range.
- Offers a cost-effective solution for both new and retrofitted fiber deployments.
- Provides long-term durability even in extreme climates or corrosive environments.
- Backed by fast production times and competitive pricing for bulk orders.
Why Choose the PA2000 Anchor Clamp for ADSS Cable?
Choosing the right anchor clamp is critical for the success of your aerial fiber optic deployment. The PA2000 Anchor Clamp for ADSS Cable offers a superior balance of performance, ease of installation, and durability. It is engineered not just to hold cables in place but to maintain network stability under fluctuating environmental conditions.
Whether you’re a network installer, telecom contractor, or infrastructure planner, this anchor clamp will simplify your project workflow and ensure your ADSS cable network operates efficiently for years to come.
Send us an inquiry or connect via WhatsApp Chat to get more information, pricing details, and free samples for testing. We offer fast lead times and global shipping support.
