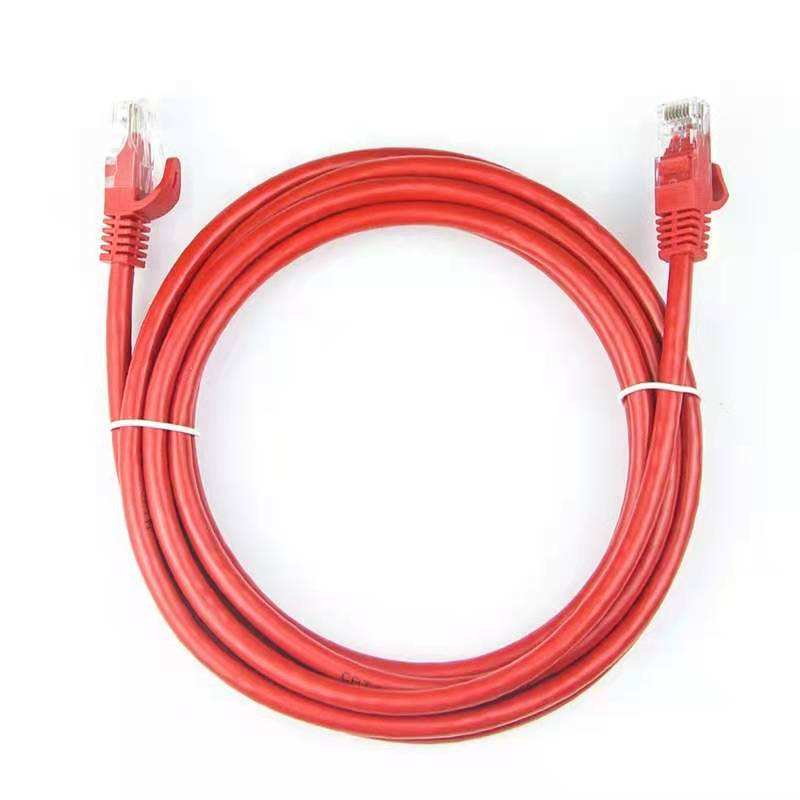

Cat5e Snagless Unshielded (UTP) Ethernet Network Patch Cable, 24AWG, 1000Base-T

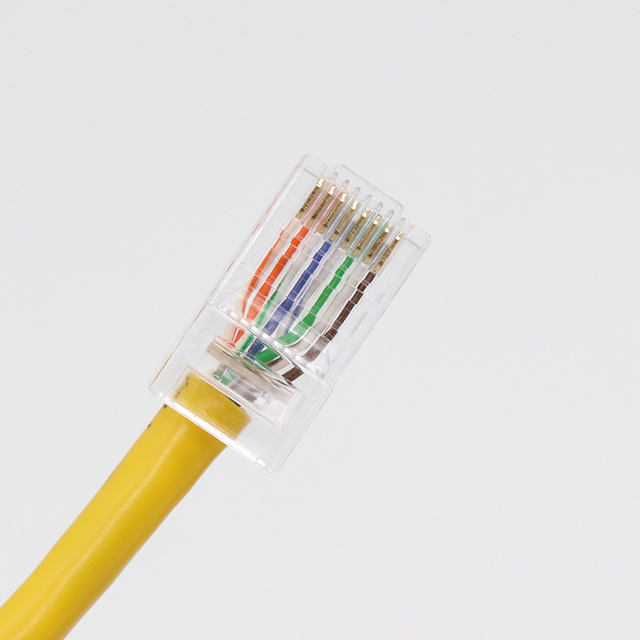

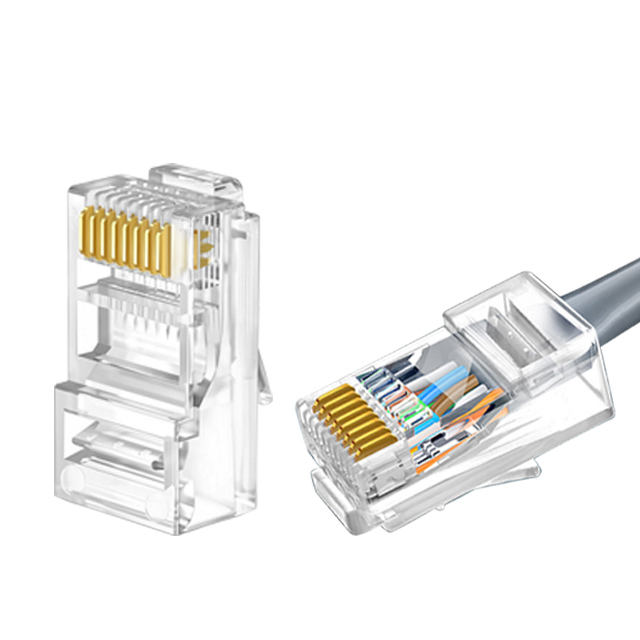

Cat5e UTP patch cable features 24AWG unshielded twisted pair stranded copper cable with a high performance modular plug at each end. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.
It exceeds the performance of the Cat5e Ethernet network cable standard and offers the cost-effective solution for indoor Gigabit Ethernet data center applications, supporting up to 1000Mbps and 250MHz within 100 meters of cable.
Specification
| Cable Type | Cat5e Snagless |
| Shielding Type | Unshielded (UTP) |
| Cable Jacket | PVC CM (Round) |
| Length | 1, 2, 3M or customed length (Including Plugs) |
| Data Rate Support | 10/100/1000Base-T |
| Maximum (Tested) Frequency | 250MHz |
| Conductor Type | Stranded Pure Bare Copper |
| Connectors | RJ45 (Male) |
| Gauge (AWG) | 24 (7/0.20mm) |
| Cable Outer Diameter (mm) | 5.5± 0.4 |
| PoE Compatibility | PoE/PoE+/PoE++ |
| Wire Scheme | T568B, Straight |
| Operating Temperature | -20 to +75°C (-4 to 167°F) |
| Installation Temperature | -10 to +50°C (14 to 122°F) |
