High Quality Cat6 Network Cable 4Pair 24AWG solid/stranded bare copper/cca, High-Performance data cable ,application structured cabling, CCTV system , Alarm system , Telecom project etc.
Exceeds TIA/EIA-568B.2,ISO/IEC 11801. 100Base-TX,100Base-T2 and 100Base-T4 standard. Can be used for voice, integrated service data network (ISDN). Long transmission distance, small transmission loss, wear resistance, resistance to pressure.

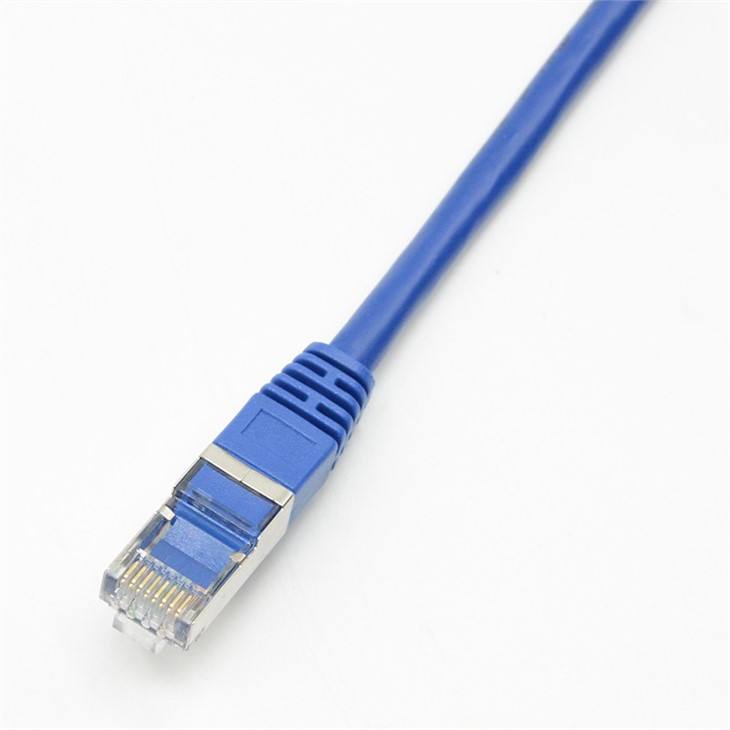

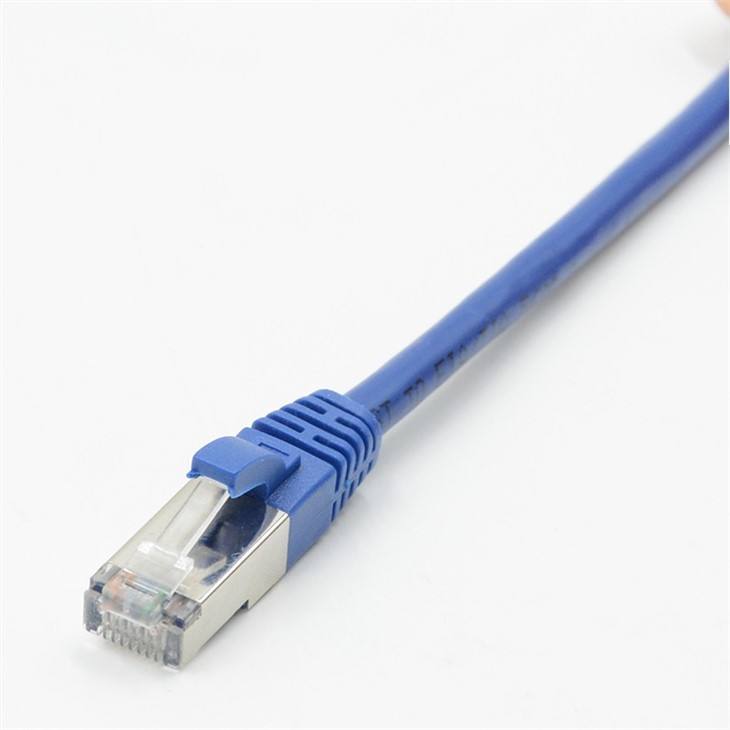

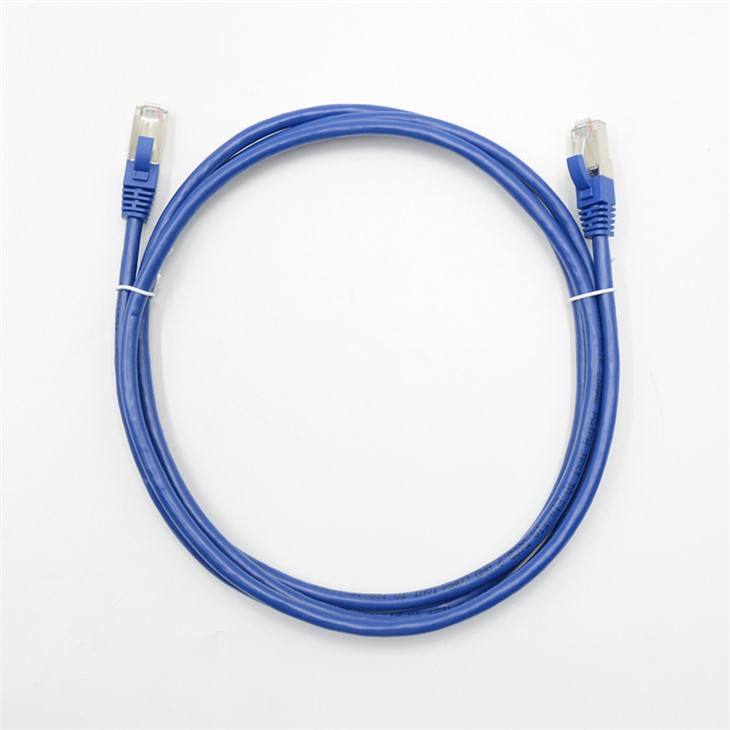

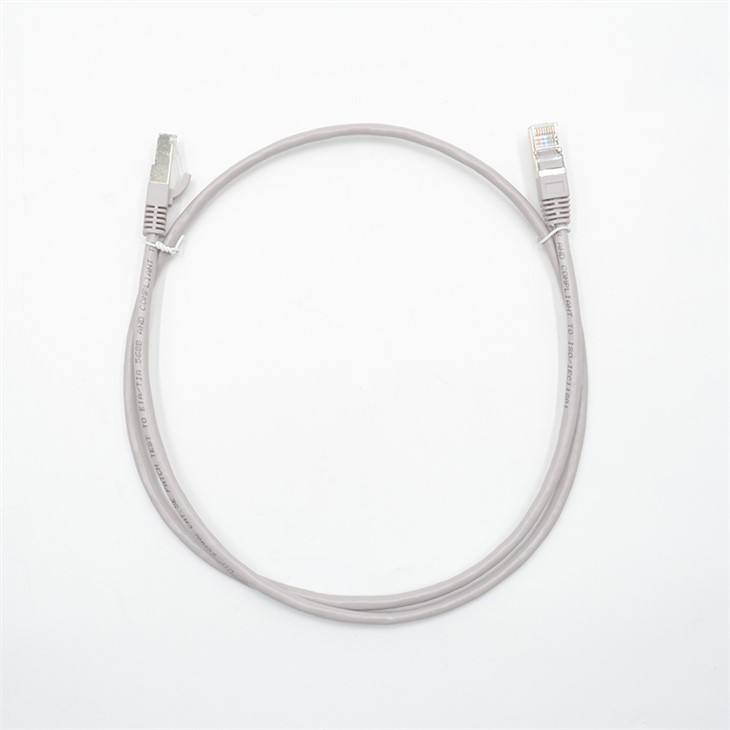

Cat6a Snagless Shielded (S/FTP) Ethernet Network Patch Cable, 26AWG, 10GBase-T
Cat6a network patch cable is the cost-effective solution for indoor data center applications, supporting up to 10GBase-T and 550MHz within 100 meters of cable. And it is fully backward compatible with all the previous categories. The FS cat6a patch cables conductor apply Pure Bare Copper with high electrical conductivity and low signal transmission attenuation. The sheath material is new environmentally friendly material PVC CM, which is durable, flame-retardant, resistant to bending. Cat6a cable uses eight-core four-pair precision twisted pairing technology and passes the Fluke test, which ensures that it can provide stable high-speed network connection and ensure the accuracy and reliability of data transmission.
Specification
| Cable Type | Cat6a Snagless |
| Shielding Type | Shielded (S/FTP) |
| Cable Jacket | PVC CM (Round) |
| Length | 1, 2, 3m or customized (Including Plugs) |
| Conductor Material | Pure Bare Copper |
| Conductor Type | Stranded |
| Data Rate Support | 10GBase-T |
| Maximum (Tested) Frequency | 550MHz |
| Gauge (AWG) | 26 (7/0.16mm) |
| Cable Outer Diameter (mm) | 6.2 +/- 0.3 |
| Max Transmission Distance | 100m |
| Twisted Pairs | 4 Pairs |
| Wire Scheme | T568B, Straight |
| Standard | ISO/IEC 11801, ANSI/TIA-568.2-D |
| Operating Temperature | -20 to +75°C (-4 to 167°F) |
| Installation Temperature | -10 to +50°C (14 to 122°F) |
