Upgrade your network infrastructure with our premium Cat6 RJ45 Connector, engineered for superior data transmission, reliability, and compatibility with both solid and stranded cables. Ideal for professionals in data centers, offices, or home networking setups, this unshielded connector is designed to meet and exceed Category 6 TIA 568.C.2 standards.
Manufactured using environmentally friendly, crystal-clear polycarbonate (PC) housing and high-conductivity phosphor copper terminals, this RJ45 connector ensures durability, high signal integrity, and long service life. It’s a perfect choice for high-speed Ethernet, including Gigabit and 10/100/1000Base-T applications.
As an original manufacturer, we offer bulk and wholesale Cat6 RJ45 connectors at factory-direct pricing, making us your trusted one-stop solution for network cabling components.

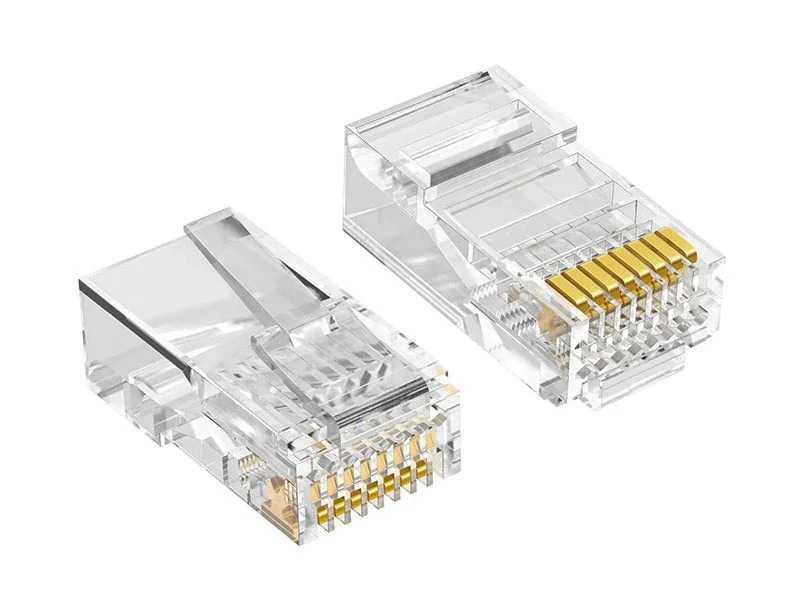

Product Overview – Cat6 RJ45 Connector
The Cat6 RJ45 Connector is a modular plug used to terminate twisted pair Ethernet cables, typically in structured cabling for voice, data, and video transmission. Our connectors feature:
- 3-prong contact design for enhanced connection to each conductor
- Two-piece structure (connector body + load bar) for accurate wire alignment
- Unshielded version for general indoor use, reducing signal crosstalk
- Multiple gold plating options (6μ, 15μ, 30μ, 50μ) for varying durability needs
Key Features of Our Cat6 RJ45 Connector
- Category 6 Certified: Fully compliant with TIA 568.C.2, ISO/IEC 11801:2002 Ed.2, and EN 50173-2 standards
- Stable Data Transmission: Engineered for signal clarity and minimal crosstalk
- Easy to Terminate: Two-piece design ensures clean, fast cable preparation and assembly
- High Durability: Rated for over 1,000 plug-in cycles
- Wide Compatibility: Supports both solid (24–22 AWG) and stranded (26–24 AWG) cables
- RoHS Compliant: Made from eco-friendly, flame-retardant PC housing (UL94V-0 rated)
- Custom Gold Plating Options: Choose between 6μ, 15μ, 30μ, or 50μ inch contact plating depending on performance requirements
- Excellent Contact Performance: Phosphor bronze contacts provide low resistance and high conductivity
Technical Specifications
General Specifications
| Attribute | Details |
|---|---|
| Product Type | Cat6 RJ45, 3-prong, 2-piece |
| Shielding | Unshielded |
| Terminal Base Material | Phosphor Copper |
| Contact Plating Options | Gold – 6μ, 15μ, 30μ, or 50μ inch |
| Terminal Type | IDC (Insulation Displacement Contact) |
| Housing Material | Flame-retardant Polycarbonate (PC) – UL94V-0 |
| Conductor Gauge | Solid: 24–22 AWG; Stranded: 26–24 AWG |
| Color | Transparent with silver contacts |
Electrical Specifications
| Attribute | Details |
|---|---|
| Voltage Rating | 150 VAC / 1.5 Ampere |
| Insulation Resistance | >500M Ohms @ 500VDC |
| Contact Resistance | <35 milliohms |
Environmental Specifications
| Attribute | Details |
|---|---|
| Plug Insertion Life | 1,000 times |
| Tensile Strength | ≥20 lbs (cable-to-plug) |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Standards Compliance | TIA 568.C.2, ISO/IEC 11801, EN 50173, EN 55022 B |
Applications
The Cat6 RJ45 Connector is ideal for:
- LAN and Ethernet cable terminations
- Patch cord assembly
- Network installations in homes, offices, and data centers
- CAT6 UTP cable termination for wall outlets, keystone jacks, and patch panels
- Structured cabling systems supporting Gigabit Ethernet and PoE (Power over Ethernet)
This modular connector is perfect for use in voice, video, and data transmission, ensuring fast, reliable performance for business and residential networks alike.
Durability and Reliability
With a robust insertion life of 1,000+ mating cycles, and gold-plated contacts, this connector is built for repeated use in high-traffic environments. The load bar and IDC design make terminations easy, even for less experienced technicians, while minimizing connection failure.
The polycarbonate housing ensures flame resistance and visual clarity, allowing you to verify proper conductor placement before crimping.
Wholesale and OEM Supply Available
As a professional RJ45 connector manufacturer, we offer bulk ordering, private labeling, and custom packaging options for wholesalers, distributors, and OEM partners. We are committed to providing:
- High-quality production standards
- Fast lead times and global shipping
- Factory-direct prices
- 100% product quality assurance
If you’re seeking a dependable, cost-effective solution for your Ethernet cabling, our Cat6 RJ45 Connector offers unbeatable performance and value.
