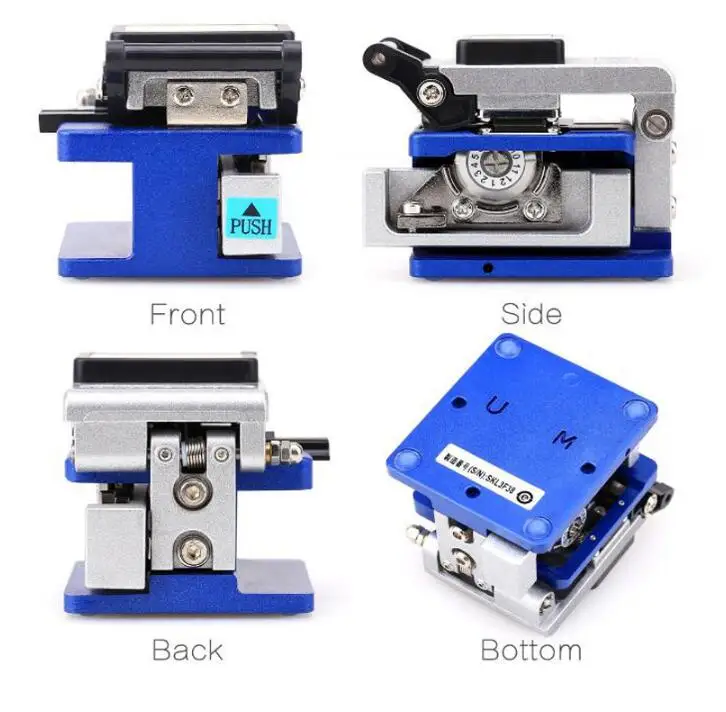

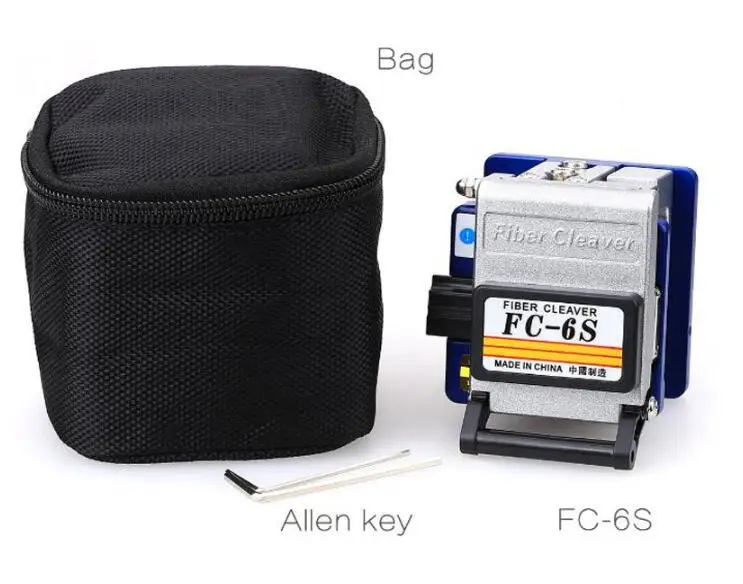

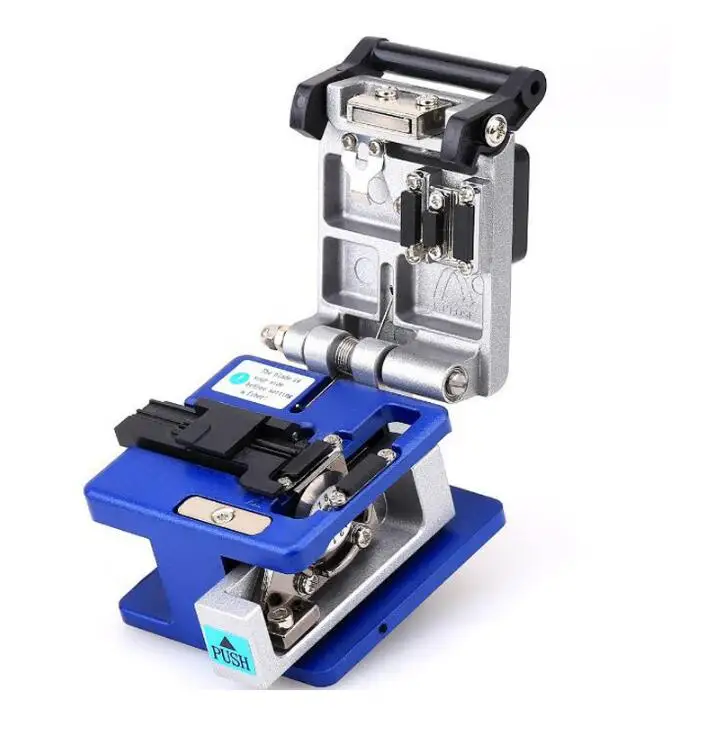

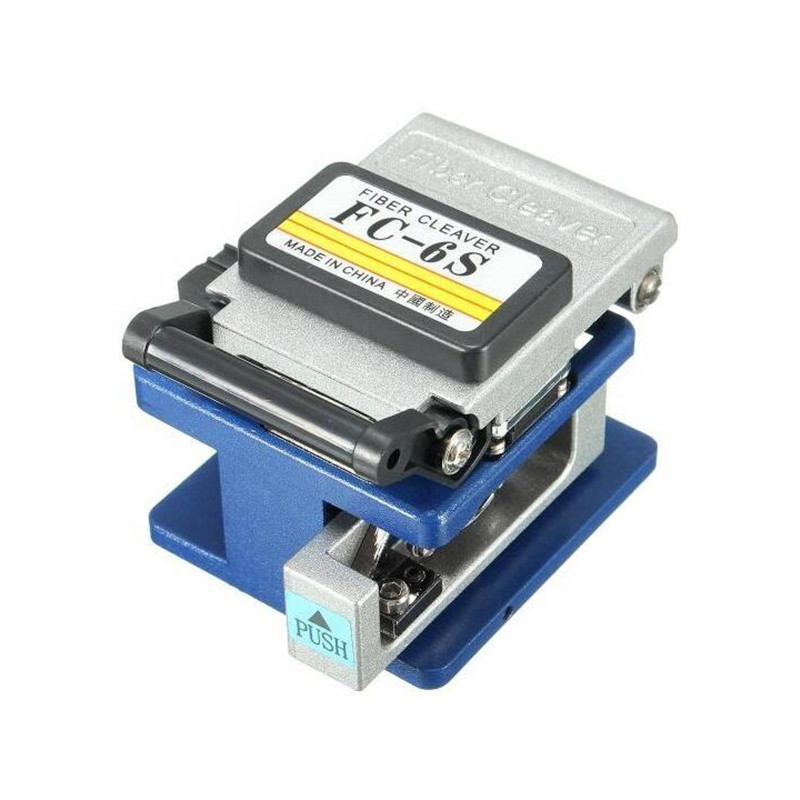

FC-6S high precision Fiber cleaver is designed for field use alongside the Sumitomo splicing units. By using a rotating blade for multiple scoring positions enables a blade life of 36,000 cleaves with a cleave angle better than 0.5 degrees. The unit is constructed to be robust and field serviceable and has options such as tripod mount to enable secure platform mounting. The FC-6S is available with a single fiber adapter for 250 to 900 micron coated single fibers. It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving.
Feature
Used for Single Fiber Cleaving
Utilizes an Automatic Anvil Drop for Fewer Required Steps and Better Cleave Consistency.
Prevents Double Scoring of the Fibers.
Has Superior Blade Height and Rotational Adjustment.
Available With Automatic Fiber Scrap Collection.
Can Be Operated With Minimal Steps
Description
1. Model No.: FC-6S
2. Fiber diameter: 125um
3. Fiber count / size: Single fiber (0.25 & 0.9mm)
4. Cleave length: 9 ~16mm (0.25);
10~16mm (0.9 )
5. Typical cleave angle: 0.5°
6. Dimensions/Weight: 63(W) x 76(D) x 63(H)mm / 430g
7. Blade life: 36,000fibers (1,000fibers x 12 edge positions x 3-step edge height)
