Introduction

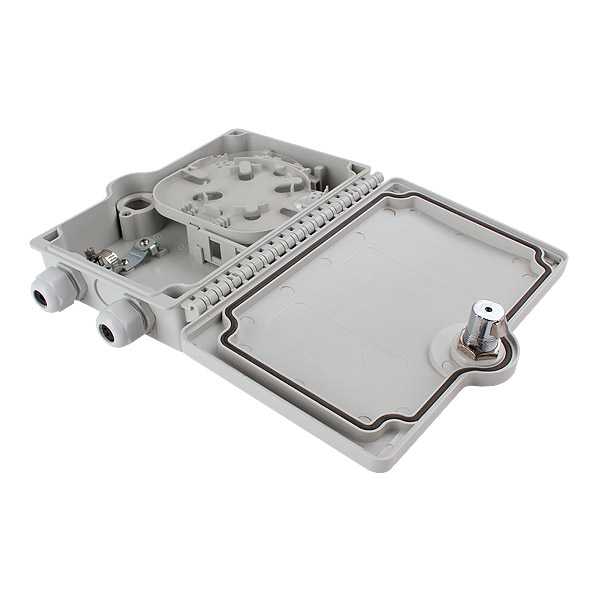

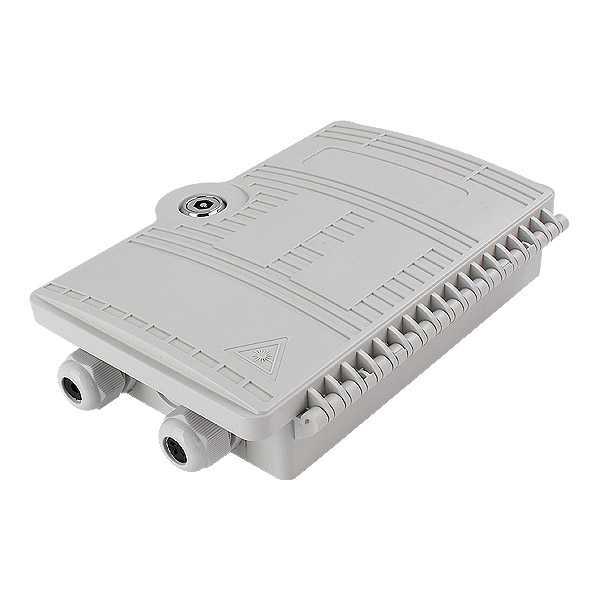

This 2 Ports Fiber Optic Distribution Box FDB02D is used for splicing and termination between indoor SC LC fiber optic cable and pigtails. used for wall mounted to connect indoor cable with drop cables. It is usually connected with 2 SC/APC or SC/PC drop fiber optic cables.
Benefit
- Free Fiber Termination Box Sample Available
- Made of Premium Grade Flame Resistant Material
- Suitable to SC LC Fiber Adapters & Pigtails
- Reasonable Bending Radius for Fiber Protection
- Stainless lock for safe protection
- Maxmized Space for fiber installation
Specification
| Parameters | 2 port FTB Fiber Termination Box |
|---|---|
| Material | ABS |
| IP Protection | IP65 |
| Max. Capacity of Fiber | 2 Fibers |
| No. of Adapter/Port | 2 |
| Suitable Adapter | SC |
| Accommodate Product | 1×2 PLC Splitter |
| Inlet Port Diameter | Ф3mm |
| Outlet Port Diameter | Ф3mm-7mm |
| Installation Type | Wall mount |
| Dimensions (HxWxD) | 200mm*110mm*35mm |
| Weight (g) | 480g |
