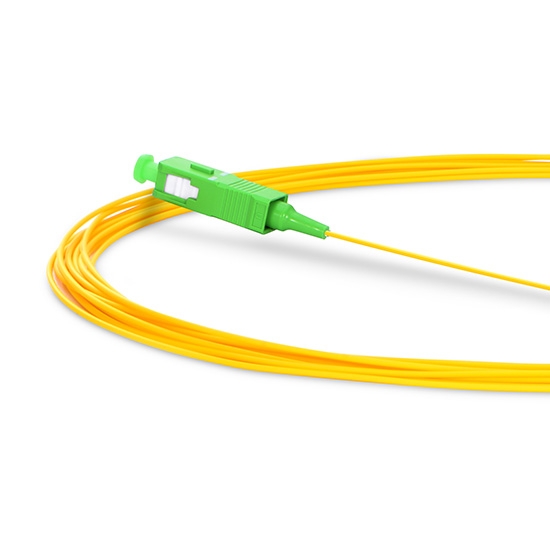

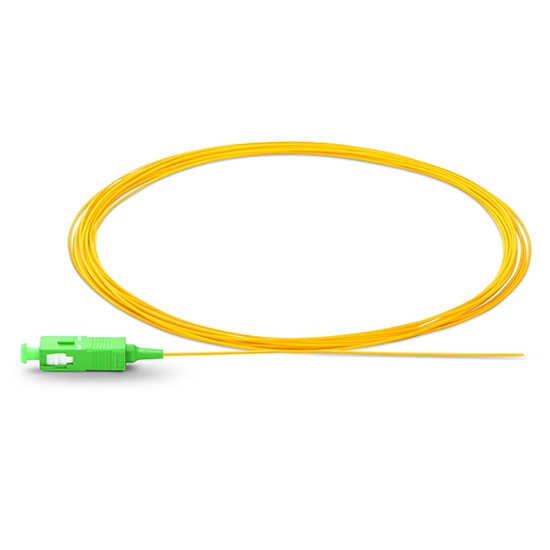

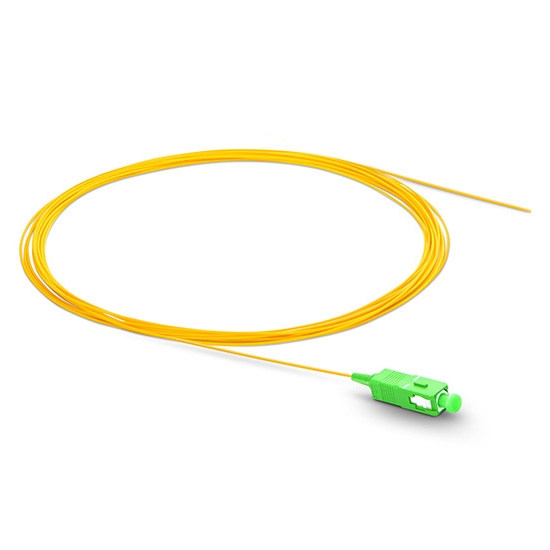

The SC/APC Singlemode Fiber Pigtail is an essential component for fiber optic terminations in modern communication systems, offering high precision, low insertion loss, and excellent signal integrity. Built with G.657.A1 bend-insensitive fiber and factory-installed SC/APC connectors, this simplex fiber pigtail ensures efficient splicing and stable performance across a range of indoor applications.
Ideal for data centers, telecom networks, FTTH deployments, and enterprise environments, our SC/APC Singlemode Fiber Pigtail combines durability, safety, and ease of use for all your fiber optic installation needs.
Why Choose Our SC/APC Singlemode Fiber Pigtail?
G.657.A1 Bend-Insensitive Fiber
This fiber pigtail uses G.657.A1 bend-insensitive singlemode fiber, which allows for tight installations and sharp bends without compromising optical performance. With a minimum bend radius of just 10mm, it is perfectly suited for high-density environments and wall-mounted fiber trays.
Pre-Terminated for Easy Installation
The SC/APC pigtail comes pre-terminated and ready to splice, minimizing installation time and the risk of errors. It is compatible with fusion splicing techniques, making it an ideal solution for Plug & Play fiber networks and fast deployment scenarios.
Low-Loss SC/APC Connectors
Each pigtail is terminated with a precision zirconia ferrule SC/APC connector. The angled polish ensures low return loss and excellent signal integrity, especially in high-bandwidth and long-distance singlemode applications. This makes it perfect for FTTx, PON, and WDM networks where maintaining low reflectance is critical.
Flame-Retardant LSZH Jacket
The outer jacket is made from Low Smoke Zero Halogen (LSZH) material, which emits minimal smoke and no halogen gases when exposed to heat or flames. This makes the pigtail safe for use in indoor environments such as offices, commercial buildings, and data centers, where fire safety compliance is essential.
Key Features – SC/APC Singlemode Fiber Pigtail
- Connector Type: SC/APC (Angled Physical Contact)
- Fiber Type: Singlemode G.657.A1, bend-insensitive
- Configuration: Simplex
- Jacket Material: Flame-retardant LSZH
- Minimum Bend Radius: 10mm
- Jacket Colors: Color-coded for easy identification
- Ferrule Material: Precision Zirconia
- Pre-terminated and tested for insertion loss and return loss
- RoHS and REACH compliant
Technical Specifications
| Parameter | Details |
|---|---|
| Connector Type | SC/APC |
| Fiber Type | G.657.A1 Singlemode |
| Insertion Loss | ≤ 0.3 dB (Typical ≤ 0.2 dB) |
| Return Loss | ≥ 60 dB |
| Fiber Count | 1 (Simplex) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Jacket Diameter | 0.9 mm or 2.0 mm (optional) |
| Minimum Bend Radius | 10 mm |
| Cable Length Options | Custom lengths available (0.5m – 10m+) |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | RoHS, REACH, IEC, TIA/EIA standards |
Applications of SC/APC Singlemode Fiber Pigtail
The SC/APC Singlemode Fiber Pigtail is engineered for a wide range of indoor fiber optic applications, especially in situations that demand low signal loss, high signal quality, and fire-safe materials. Common applications include:
- Enterprise & Commercial Networks
Use in LAN backbone and cross-connect systems for streamlined optical connectivity. - FTTH & FTTx Installations
An essential component in last-mile connectivity from fiber distribution hubs to customer premises. - Telecommunication & Carrier Networks
Provides consistent signal transmission in central offices, remote terminals, and node cabinets. - Data Centers & Server Rooms
Supports high-bandwidth networking infrastructure in dense rack and cabinet systems. - Field Termination and Splice Trays
Perfect for fusion splicing to trunk cables and fiber patch panels.
Benefits of Using SC/APC Singlemode Fiber Pigtails
- Quick and Reliable Installation: Pre-polished connectors save labor time and reduce error.
- High Performance: Low insertion and return loss ensure excellent signal transmission quality.
- Flexible Deployment: Available in a variety of lengths and colors to match your system needs.
- Safe for Indoor Use: LSZH material meets strict fire safety standards.
- Long-Term Durability: Rugged construction and bend-insensitive fiber improve lifespan and reduce maintenance costs.
Wholesale & Custom Orders Available
As a direct manufacturer of SC/APC Singlemode Fiber Pigtails, we offer:
- Factory-direct pricing
- Bulk and OEM orders
- Private labeling
- Custom jacket colors and fiber lengths
Whether you’re a system integrator, ISP, contractor, or distributor, we provide reliable supply and one-stop fiber optic solutions for your business.
Request a Quote or Sample Today
Contact us now to get a competitive quote or request free samples for testing. We ensure short lead times, stable supply, and top-tier customer service. Let us support your network deployment with high-quality SC/APC Singlemode Fiber Pigtails made to the highest international standards.
