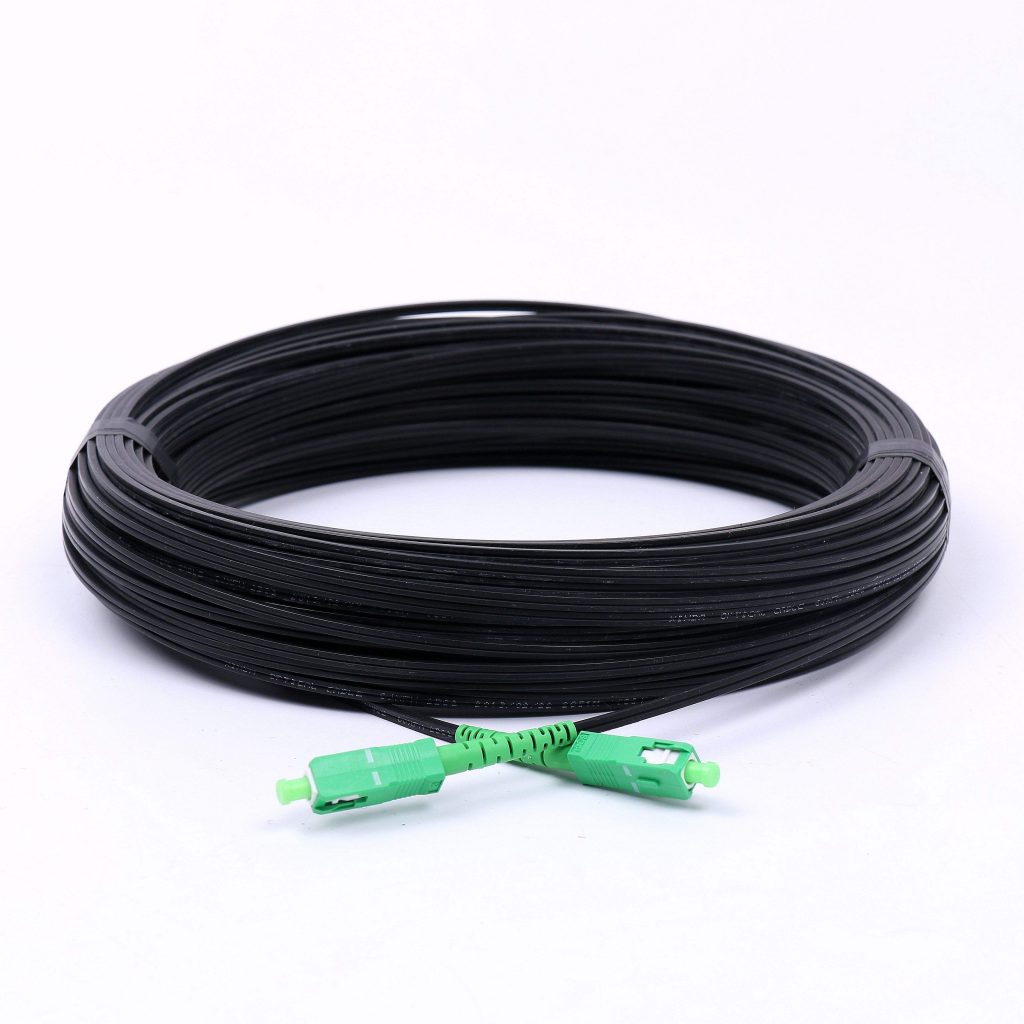

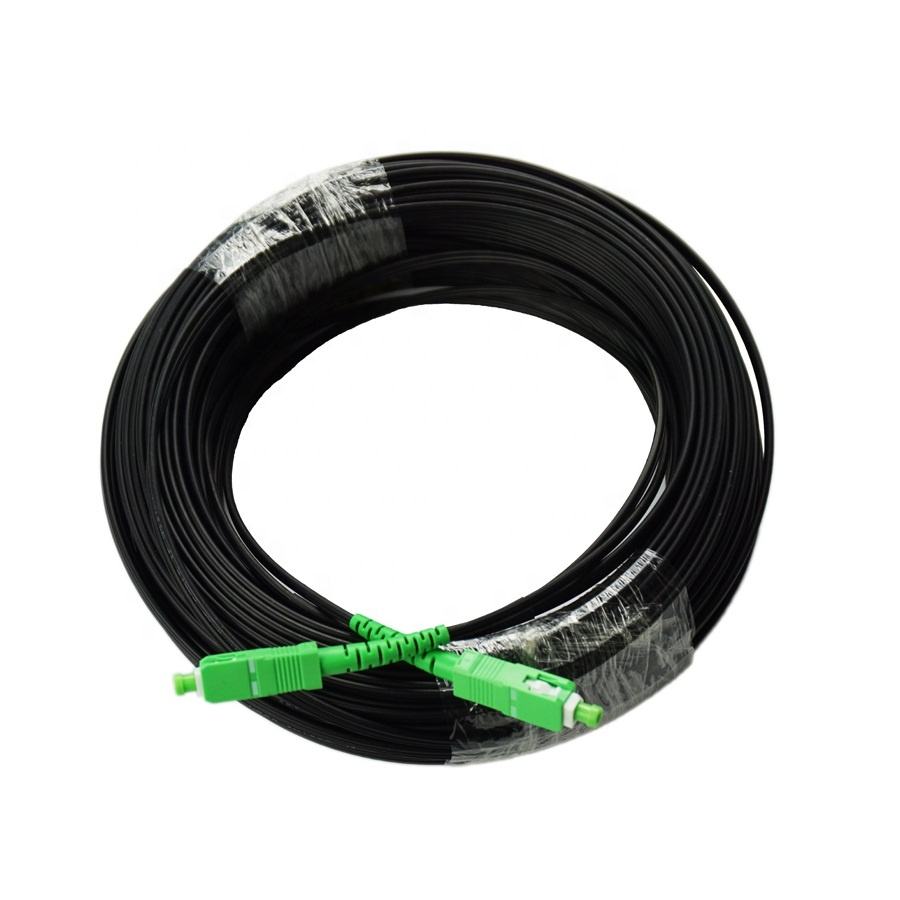

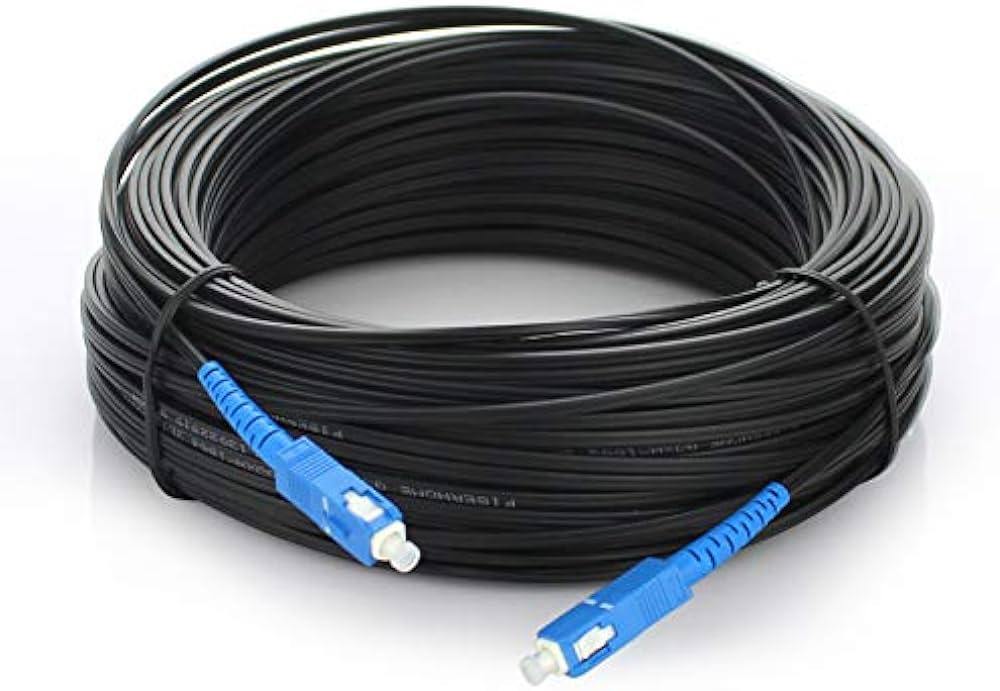

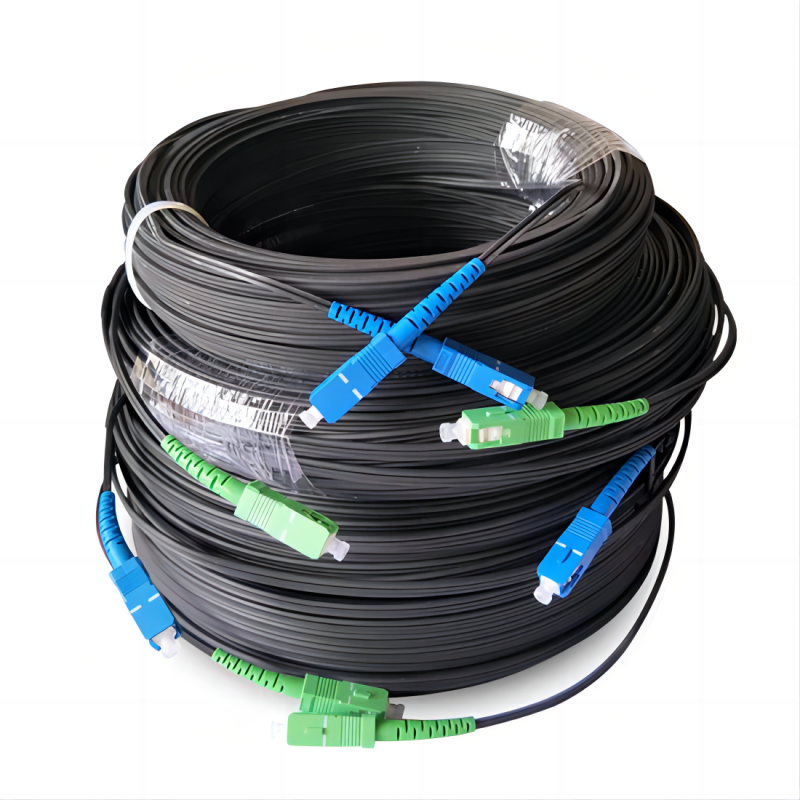

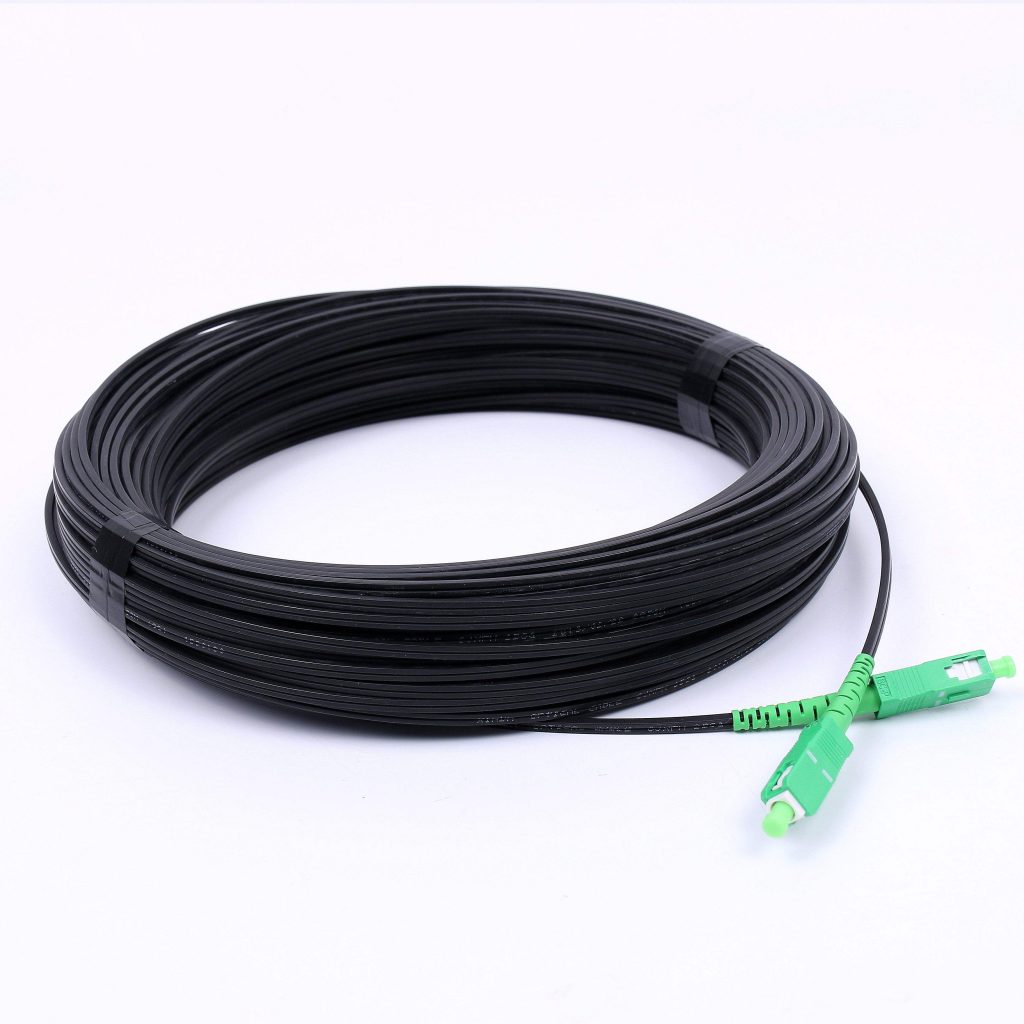

FTTH fiber optic cable is Fiber to Home, which used for linking the equipment and components in the fiber optic network. The fibers is between two parallel KFRP/ FRP / steel wire. Then it is self-supported by diameter 1.0mm steel wire/FRP. Finally this cable is completed with black or white LSZH sheath.
Feature
- High tensile of the diameter 1.0mm steel wire/FRP meet the requirement of self-supporting and reducing the installation cost.
- Two parallel KFRP/FRP/ steel wire strength members ensure good performance of crush resistance to protect the fiber
- Novel flute design, easily strip and splice, simplify the installation and maintenance
- Low smoke zero halogen and flame retardant sheath
- Single mode G657A1/A2 (2.0±0.2)x(5.0±0.2)mm
- Compliant with Telcordia GR-326-CORE
Specification
| Product | SC Fiber Drop Cable |
| Color | Black/White |
| Fiber Core | 1 Core/2 core/4 core/ Optional |
| Jacket | LSZH |
| Fiber | G657A1/G657A2/customzied |
| OD | 2.0*5.0mm outdoor /2.0*3.0mm indoor |
| Connector | SC,LC (UPC/APC) customzied |
| Insert Loss | <0.3dB |
| Length | 30m/50m/100m/150m/200m, Customized |
| Package | 1pcs/Roll |
