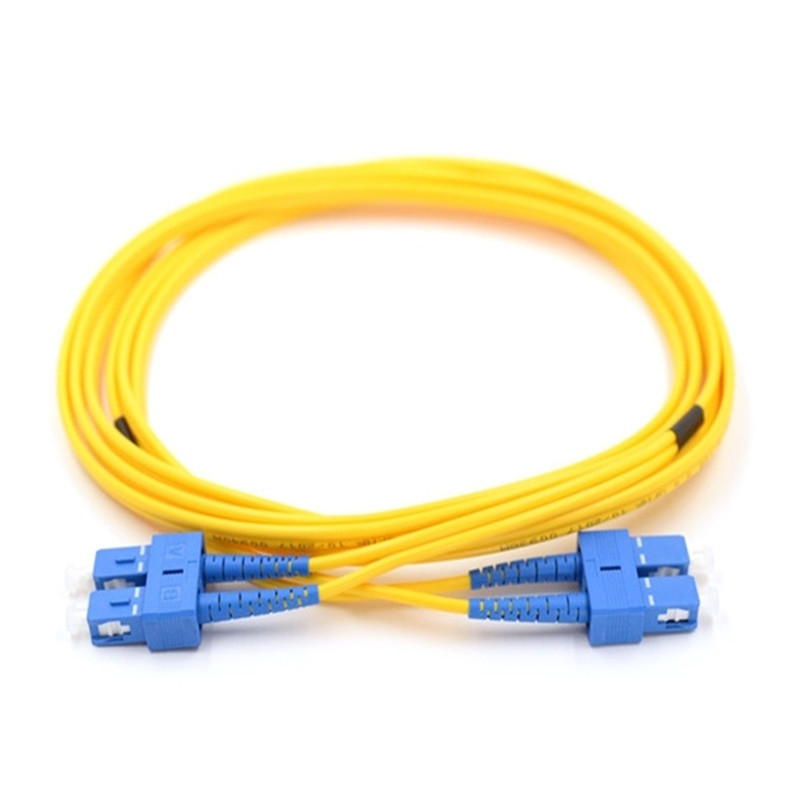

SC/UPC Fiber Patch Cable

FOPTSCU

Our SC/UPC Fiber Patch Cable delivers reliable single-mode fiber connectivity with low insertion loss and high return loss. Designed for high-speed data transmission, it features pre-terminated SC/UPC connectors, bend-insensitive fiber, and a durable LSZH or PVC jacket. Ideal for telecom, data centers, LAN, and FTTH applications, this patch cable ensures stable performance and easy installation. Available in various lengths and compliant with RoHS, REACH, and TIA/EIA standards, it’s perfect for demanding indoor fiber optic networks.

Looking for a high-quality, high-performance SC/UPC fiber patch cable for your network infrastructure? Our SC/UPC Single-Mode Fiber Optic Patch Cord delivers exceptional optical performance, low insertion loss, and long-distance transmission capability for a variety of fiber optic applications.

Whether you’re building a data center, upgrading a telecom network, or deploying fiber to the home (FTTH), this pre-terminated fiber patch cable ensures easy installation and superior reliability. Designed to meet strict industry standards, it is compatible with SC/UPC interfaces and available in multiple lengths for flexible deployment.

What Is an SC/UPC Fiber Patch Cable?

An SC/UPC fiber patch cable is a type of fiber optic jumper cable terminated with SC (Subscriber Connector) connectors featuring an Ultra Physical Contact (UPC) polish. This type of polish ensures a flat connector end face that minimizes insertion loss and maximizes signal clarity, making it ideal for single-mode (OS2) applications over long distances.

SC/UPC connectors are widely used in telecom rooms, central offices, and fiber optic transmission systems due to their simple push-pull design and secure connection.

Key Features of Our SC/UPC Fiber Patch Cable

  • Low Insertion Loss & High Return Loss
    Precision SC/UPC connectors ensure insertion loss ≤ 0.3 dB (typical) and return loss ≥ 60 dB, supporting stable, high-quality signal transmission.
  • Single-Mode Fiber (9/125μm)
    Optimized for long-distance transmission with minimal signal loss. Ideal for telecom, enterprise, and ISP networks.
  • Robust Construction
    Comes with LSZH (Low Smoke Zero Halogen) or PVC jacket for flame resistance and low smoke output, suitable for both commercial and residential installations.
  • Pre-Terminated & Ready-to-Use
    SC/UPC to SC/UPC connectors are pre-polished and factory-tested. No need for on-site splicing or polishing.
  • Bend-Insensitive Design
    Engineered for tight routing spaces and harsh installation conditions without compromising optical performance.

Technical Specifications

SpecificationDetails
Connector TypeSC/UPC to SC/UPC
Fiber TypeSingle-Mode (OS2, 9/125μm)
Cable Diameter3.0mm
Jacket MaterialLSZH or PVC
Wavelength1310nm / 1550nm
Insertion Loss≤ 0.3 dB typical, ≤ 0.5 dB max
Return Loss≥ 60 dB
Operating Temperature-20°C to +70°C
Length Options1m, 2m, 5m, 10m, custom lengths
Standards ComplianceRoHS, REACH, IEC, TIA/EIA

Applications of Our SC/UPC Fiber Patch Cable

Our SC/UPC fiber patch cables are designed for high-speed optical transmission and are used in a wide range of professional environments:

  • Telecommunications Networks – Stable and low-loss connectivity for central offices and long-haul transmission.
  • Data Centers – Reliable interconnections between switches, routers, and servers.
  • FTTH (Fiber to the Home) – Connects ONTs (Optical Network Terminals) to distribution points in residential deployments.
  • LANs (Local Area Networks) – Ideal for point-to-point fiber connectivity inside office or campus buildings.
  • CATV Systems – Reliable signal delivery for cable television networks.
  • High-Speed Transmission Systems – Supports 1G, 10G, and future-ready networks.

Compatibility & Integration

The SC/UPC fiber patch cable is universally compatible with all devices and systems that accept SC/UPC connectors, including fiber patch panels, optical transceivers, and fiber distribution boxes. It is also backward compatible with older network infrastructures that require SC/UPC terminations.

Always ensure the equipment in your setup is compatible with UPC (Ultra Physical Contact) connectors to prevent performance loss due to connector mismatch.

Why Choose Our SC/UPC Fiber Patch Cable?

  • Factory-Direct Quality Control
    Every patch cable undergoes rigorous testing for IL/RL and end-face geometry to ensure optimal performance.
  • Multiple Length Options Available
    Choose from a wide range of standard lengths or request a custom cut to suit your installation needs.
  • Global Standards Compliance
    Manufactured according to RoHS, REACH, TIA/EIA, and IEC standards for safe and efficient operation.
  • Competitive Wholesale Pricing
    As an original manufacturer, we provide cost-effective fiber patch cords with fast lead times and bulk order support.
  • Dedicated Support and Warranty
    All SC/UPC patch cables are backed by a 1-year warranty and technical support team ready to assist with installation, troubleshooting, or product selection.
SC/UPC Fiber Patch Cable

Ordering and Customization

We offer customization options including:

  • Jacket type: PVC or LSZH
  • Cable color: Yellow, Blue, or Custom
  • Lengths: From 0.5m to 100m
  • Connector types: SC/UPC, LC/UPC, ST, FC, hybrid options

Contact our team to request a quote, free sample, or discuss project-specific fiber cabling solutions.
