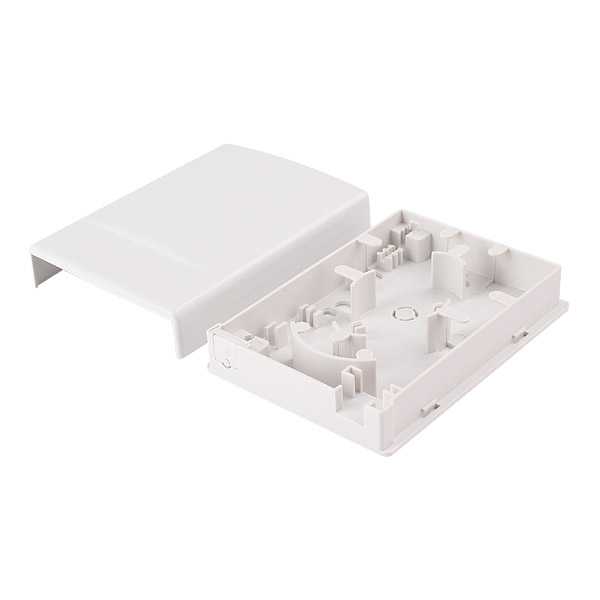

The SC Wall Mount Socket Outlet Faceplate is a sleek and functional solution for terminating and routing fiber optic connections in FTTH (Fiber to the Home) environments. Designed for indoor use in residential and commercial settings, this faceplate allows for the seamless integration of SC, LC, or FC adapters and fiber optic pigtails. Whether for a new fiber install or an upgrade, this wall-mounted socket faceplate delivers performance, protection, and professional aesthetics in one simple unit.
Perfect for use in living spaces, office walls, or utility rooms, the SC Wall Mount Socket Outlet Faceplate offers quick installation, safe fiber management, and a clean appearance that blends with modern interiors.
Key Features of the SC Wall Mount Socket Outlet Faceplate
- Supports SC, LC, and FC adapters and pigtails
- Wall-mounted or desktop installation for flexible use
- Premium flame-resistant ABS plastic housing
- High bonding adhesive backing with peel-and-stick installation
- Push-type cover for easy fiber access and maintenance
- Larger-than-standard size for easy operation and cable routing
- Reasonable fiber bending radius for added protection
- Custom logo printing available for OEM/ODM branding
- Supports single or dual-port SC adapter configurations
Functional and Aesthetic Design for Indoor Fiber Installations
The SC Wall Mount Socket Outlet Faceplate is designed to simplify fiber optic terminations in FTTH deployments. Its sleek white casing blends seamlessly with residential or office walls, maintaining a clean and professional look. Unlike traditional faceplates, this model features a larger panel size (120mm × 86mm × 22mm), allowing for easier access and fiber routing during splicing or maintenance.
Its flame-retardant ABS plastic material ensures safety in indoor environments, while the smooth surface allows for private label customization and clean laser printing of logos or identifiers.
The unit supports 1 or 2 SC ports, with optional configurations for LC or FC adapters. Its design allows for secure fixing of 900μm fiber inside the socket without causing signal degradation due to bending or stress.
Simple Peel-and-Stick Installation
Installing the SC Wall Mount Socket Outlet Faceplate is quick and tool-free. The base features high-bond adhesive backing with an easy-peel liner, enabling secure mounting to most wall or flat surfaces. This saves time and labor costs during large-scale installations and retrofit projects.
An optional fiber installation tool can be used to press 900μm fiber into the faceplate’s channels. The fiber is easily removed later without damage, allowing for future upgrades or service without reinstallation.
Applications
The SC Wall Mount Socket Outlet Faceplate is ideal for:
- FTTH (Fiber to the Home) residential terminations
- Offices and commercial buildings requiring indoor fiber access
- Fiber splicing and pigtail termination near workstations or living areas
- Desktop or wall-mount connections between drop cable and ONU/modem
- Lab and equipment testing setups for secure SC/LC fiber connections
It is also commonly used by ISPs, telecom contractors, and network integrators deploying passive optical networks (PON), GPON, EPON, or other singlemode and multimode solutions.
Specifications
| Parameter | Details |
|---|---|
| Product Name | SC Wall Mount Socket Outlet Faceplate |
| Material | Fire-resistant ABS plastic |
| Weight | 60g |
| Dimensions | 120mm × 86mm × 22mm |
| Mounting Method | Wall-mounted / adhesive-based installation |
| Fiber Support | 900μm tight buffer fiber |
| Adapter Compatibility | SC, LC, FC (Simplex/Duplex optional) |
| Available Ports | 1 or 2 SC ports |
| Cable Type | Indoor drop fiber cable |
| Cover Mechanism | Push-type removable cover |
| Customization | Logo printing available (OEM/ODM) |
Benefits of Choosing Our SC Wall Mount Socket Outlet Faceplate
Tool-Free, Time-Saving Installation
The self-adhesive back eliminates the need for drilling or screw mounting, making it ideal for retrofits, apartments, and spaces with limited access to tools.
Secure and Safe Fiber Management
Maintain the recommended fiber bend radius and reduce the risk of fiber breakage or signal loss during installation or maintenance.
OEM Branding and Customization
Available with private label logo printing, making it perfect for ISPs and system integrators seeking to reinforce their brand identity in end-user installations.
Factory Wholesale Pricing
As a direct manufacturer, we offer bulk and OEM pricing, making this product highly cost-effective for large-scale FTTH rollouts.
Order Your SC Wall Mount Socket Outlet Faceplate Today
If you’re looking for a clean, efficient, and professionally designed outlet faceplate for FTTH and indoor fiber applications, our SC Wall Mount Socket Outlet Faceplate is the smart choice. With support for SC, LC, and FC adapters, flame-retardant housing, and effortless peel-and-stick installation, it provides everything you need for a secure fiber termination point.
