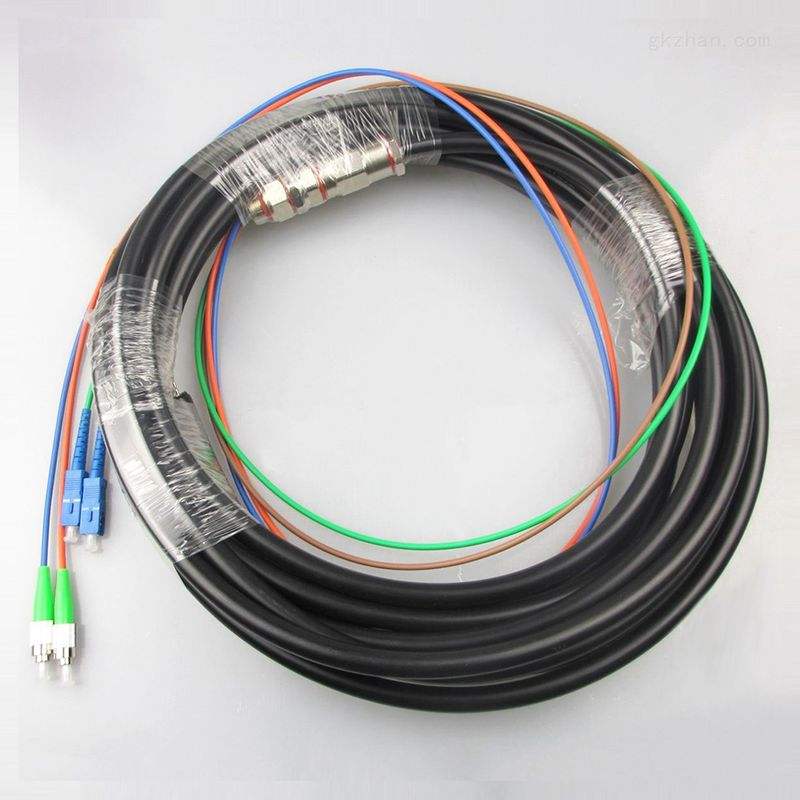

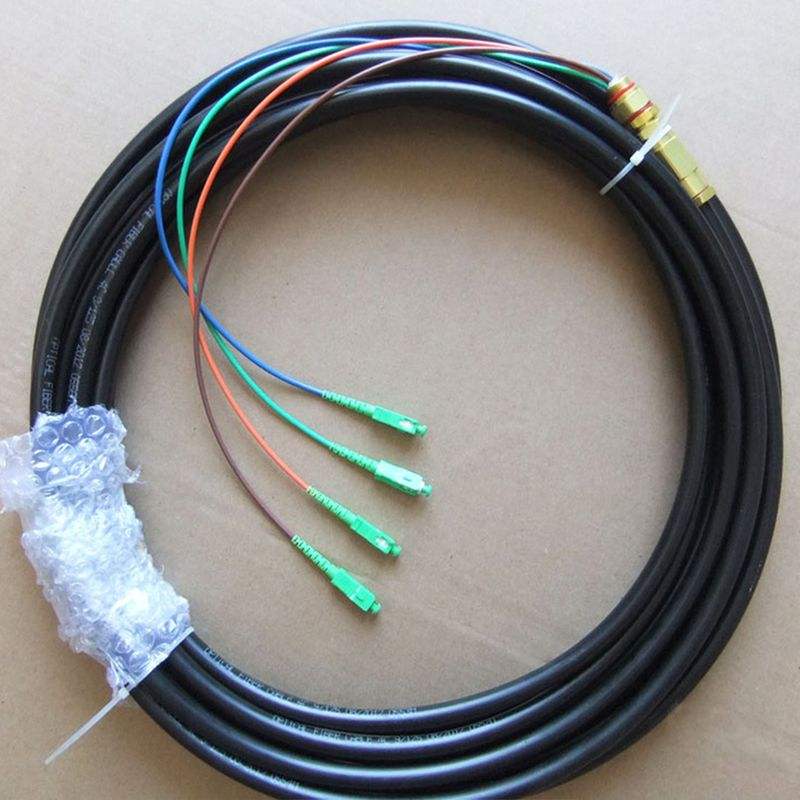

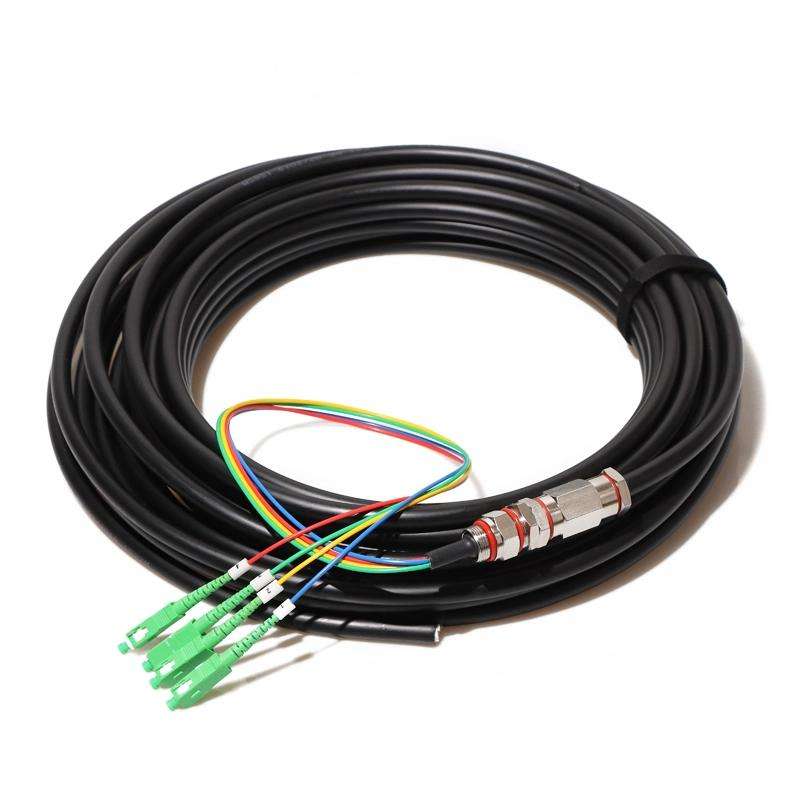

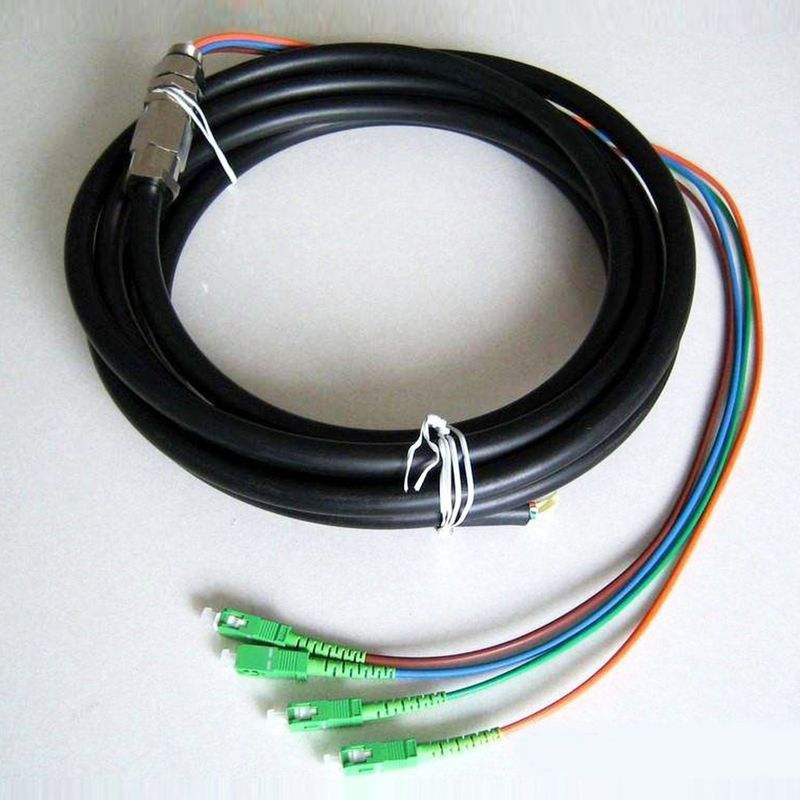

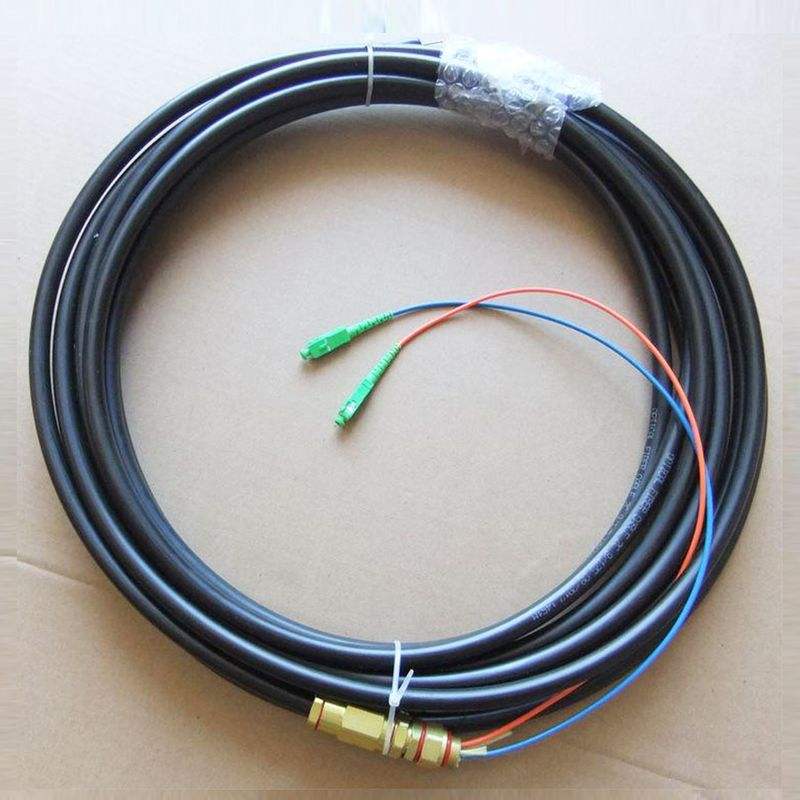

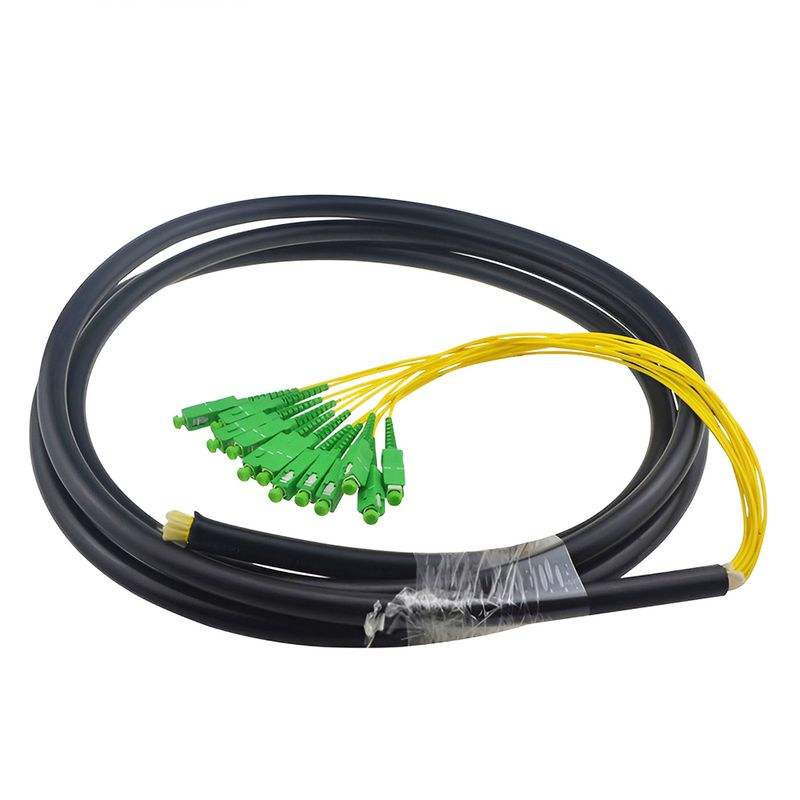

The SC Waterproof Fiber Optic Pigtail is a rugged and high-performance fiber optic assembly designed to ensure reliable signal transmission in outdoor or harsh environments. Built with a waterproof SC connector on one end and a length of exposed fiber on the other, this pigtail provides a seamless connection between outdoor fiber optic cables and indoor terminal equipment, such as optical receivers, distribution boxes, or splice closures.
As fiber optic networks continue to expand into more challenging environments—including outside plant (OSP), FTTH, FTTx, and industrial applications—the need for waterproof and weather-resistant components becomes increasingly critical. The SC waterproof pigtail is specially designed to resist water, dust, UV exposure, and temperature extremes, making it ideal for mission-critical installations.
Key Features of SC Waterproof Fiber Optic Pigtail
- Waterproof and Rugged Design
The SC connector is encased in a protective, weatherproof housing that offers excellent sealing against water and dust ingress, meeting IP67 or higher protection standards. - Superior Signal Performance
Manufactured with high-grade single-mode optical fiber, this pigtail ensures low insertion loss and excellent return loss for stable and high-speed signal transmission. - Versatile Fiber Options
Available in multiple single-mode fiber types including G652D, G655, G657A1/A2, and G657B3, the SC waterproof pigtail meets the diverse needs of telecom, data center, and outdoor broadband systems. - Customizable Lengths and Jackets
Choose from a wide range of lengths, jacket materials (PVC, LSZH, OFNR, OFNP), and diameters to suit different installation scenarios. - Reliable Connector Options
Supports SC/PC and SC/APC types for precision mating and reduced reflection, with optional customization for other connector types upon request.
Applications of SC Waterproof Fiber Optic Pigtail
1. Fiber to the Home (FTTH) Networks
- Connects outdoor fiber distribution points to indoor optical network terminals (ONTs)
- Ensures reliable signal transmission in residential broadband deployments
2. Outdoor Telecom Infrastructure
- Deployed in harsh environments for long-haul backbone networks
- Used in metropolitan area networks (MANs) and access networks
- Suitable for aerial installations and underground conduit systems
3. Industrial Communication Systems
- Withstands vibration and mechanical stress in factory automation
- Connects industrial switches, PLCs, and control equipment
- Resistant to moisture and temperature fluctuations
4. Waterproof Enclosure Applications
- Sealed termination in outdoor junction boxes and closures
- Maintains performance in humid or wet locations
5. Wireless Base Station Connectivity
- Links antennas to baseband units in 4G/5G deployments
- Survives extreme weather conditions at tower sites
6. Data Center External Links
- Interconnects between buildings or external equipment
- Provides stable transmission for high-bandwidth applications
The solution supports both direct burial and pole-mounted installations, with optional armored versions for additional mechanical protection.
Specifications of SC Waterproof Fiber Optic Pigtail
| Specification | Details |
|---|---|
| Fiber Type | Single Mode: 9/125 – G652D, G655, G657A1/A2, G657B3 |
| Fiber Brand | YOFC, Corning, Sumitomo, Fujikura |
| Connector Type | SC/PC, SC/APC (customized connectors available on request) |
| Cord Type | Simplex or Duplex |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mm, 4.1mm |
| Jacket Material | PVC, OFNR, LSZH, OFNP |
| Standard Lengths | 0.5m, 1m, 2m, 5m, 10m, 25m, 50m, 100m (custom lengths available) |
Why Choose Our SC Waterproof Fiber Optic Pigtail?
- Trusted Quality: We source fibers from globally recognized brands like Corning and Fujikura to ensure exceptional quality and performance.
- Customization Ready: Need a specific length, connector, or jacket type? We offer full customization to meet project-specific requirements.
- Quick Lead Time: Our streamlined production and inventory systems guarantee fast turnaround for both standard and custom orders.
- Proven Durability: Designed for long-term outdoor use with resistance to water, corrosion, and UV radiation.
Request a Sample Today
To experience the quality and reliability of our SC waterproof fiber optic pigtails firsthand, we offer free samples ready for immediate shipping. Contact us today to discuss your needs or request a quotation.
Optimize your fiber network installations with the robust performance of our SC Waterproof Fiber Optic Pigtail – the ideal solution for reliable outdoor and industrial connectivity.
