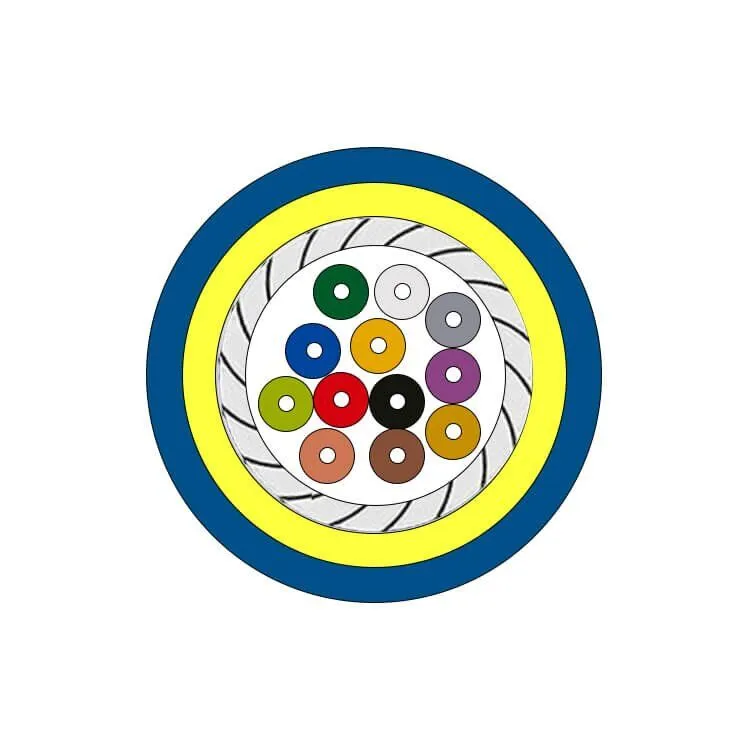

This indoor armored tactical fiber has both aramid yarn and spiral steel tube for strength member, which is perfect for anti-rat application. Multiple tight buffered fibers are well protected within the outside cable sheath, aramid yarn and spiral steel tube.
The stainless steel spiral steel tube of this armored fiber cable is resistant to compression, tension and rat bite. Therefore, this tactical fiber can be used in various harsh and complex wiring environment.
Application
It is suitable for outdoor aerial installation and FTTH
Features
- Tight buffered optical fiber is easy for stripping and operation
- Tight buffered fiber also has good flame retardant performance
- Aramid yarn strength member provides excellent tensile characteristics
- Stainless steel tube provides extra tensile and pressure strength
- Available for adding stainless steel weaven mesh for further tension and anti-rats performance
- Small circular cable for convenient laying
- Flexible and good bending radius in operation
Characteristics
| Fiber Count | Cable Diameter (mm) | Crush long/short term (N/100mm) | Tensile long/short term (N/100mm) | Bending Radius dynamic/static (mm) | Attenuation 1310/ 1550nm | Attenuation 850/ 1300nm | Operation Temperature °C | Cable Weight |
|---|---|---|---|---|---|---|---|---|
| 1 | 2.0/2.4 | 400/600 | 3000/4000 | 48D/24D | ≤0.4 | ≤0.3 | -40 ～ 80 | 7/9 |
| 2 | 2.8 | 400/600 | 3000/4000 | 48D/24D | ≤0.4 | ≤0.3 | -40 ～ 80 | 10 |
| 2 | 4 | 1200/1500 | 3000/4000 | 80D/40D | ≤0.4 | ≤0.3 | -40 ～ 80 | 28 |
| 4 | 4 | 1200/1500 | 3000/4000 | 80D/40D | ≤0.4 | ≤0.3 | -40 ～ 80 | 28 |
| 6 | 5 | 1200/1500 | 3000/4000 | 100D/50D | ≤0.4 | ≤0.3 | -40 ～ 80 | 32 |
