Single Mode Indoor/Outdoor Plenum Distribution Fiber Optic Cable with Corning Fiber

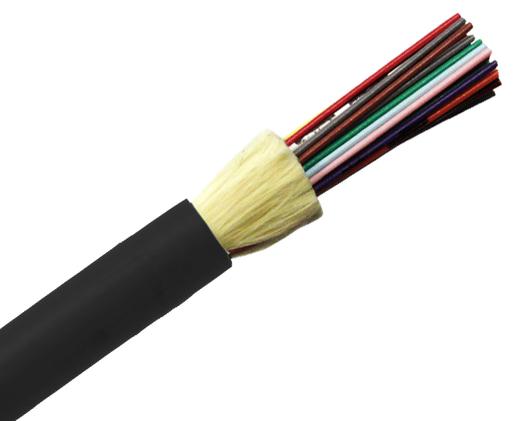

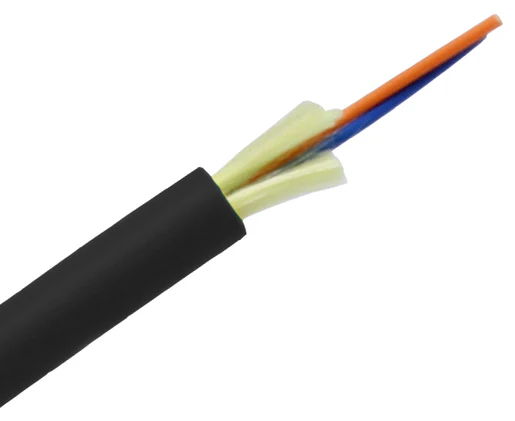

This plenum distribution fiber cable is composed of 2-24 colored tight buffers, aramid yarn, and a PVC outer jacket. All component materials meet the EU RoHS and REACH Directive standards.
The plenum distribution fiber Cable is available in 12 TIA standard colors or special order colors. Our Fiber is UL Listed with a OFNP fire rating. Standard surface print denotes construction, NEC rating, and fiber type, and includes footage markers.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
- 900um tight buffered
- Water blocking aramid yarn strength members
- UV resistant jacket, OFNP rated construction
- Exclusive use of Corning® optical fibers
- Jacket print ensures product identification and fiber compatibility
- Buffers strip consistently between 3.5 – 5 lbs/FT, helpful for onsite termination
- Durable jacket offers added protection during installation and in rugged use applications
Applications
- Rated for indoor/outdoor applications
- Trunk cable between floors
- Data centers
Temperature Range
- Storage Temperature: -40ºC to +70ºC
- Operating Temperature: -40ºC to +70ºC
Cable Characteristics
- Fiber Count Options: 2, 6, 12, 24, 48, 72
- Outer Jacket Material: Flame Retardant PVC
- Buffer Tubes: Flame Retardant PVC
- Strength Member:
- 2-24 Strand: Aramid Yarn
- 48-72 Strand: Water Blocking Aramid Yarn
- Central Strength Member: Fiber Reinforced Rod
- Coating on Central Strength Member: Flame Retardant PVC
Mechanical Characteristics
Nominal Outer Diameter:
- 2 Strand: 4.4 mm
- 6 Strand: 4.8 mm
- 12 Strand: 5.8 mm
- 24 Stand: 7.8 mm
- 48 Stand: 15.40 mm
- 72 Stand: 20 mm
Weight:
- 2 Strand: 44 lbs/km
- 6 Strand: 57 lbs/km
- 12 Strand: 81 lbs/km
- 24 Stand: 138 lbs/km
- 48 Stand: 480 lbs/km
- 72 Stand: 765 lbs/km
Minimum Bend Radius (Installation):
- 2 Strand: 6.6 cm
- 6 Strand: 7.2 cm
- 12 Strand: 8.7 cm
- 24 Stand: 11.7 cm
- 48 Stand: 23.10 cm
- 72 Stand: 30 cm
Minimum Bend Radius (Operation):
- 2 Strand: 4.4 cm
- 6 Strand: 4.8 cm
- 12 Strand: 5.8 cm
- 24 Stand: 7.8 cm
- 48 Stand: 15.40 cm
- 72 Stand: 20 cm
Optical Characteristics
- Core Size: 9 um
- Wavelength: (1310/1550) nm
- Max. Attenuation: (0.5/0.4) dB/km
- Bandwidth (EMB) (High Performance): –
- Link Length : 10,000/5,000 (1/10Gb/s@1550nm)
