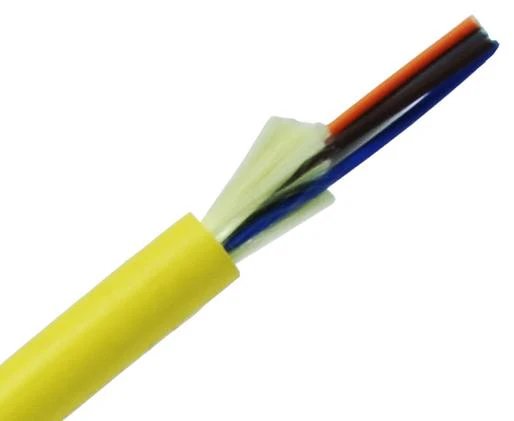

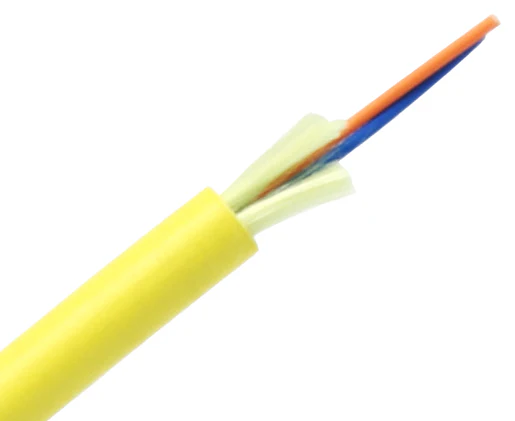

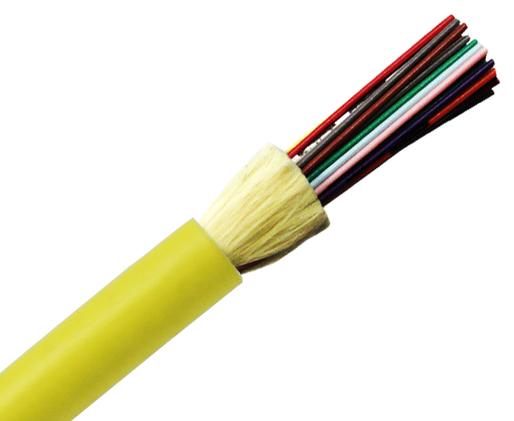

The plenum distribution fiber cable is available in 12 TIA standard colors or special order colors. The fiber cable is UL Listed OFNP for use in vertical runs in building riser shafts or from floor to floor. Standard surface print denotes construction, NEC rating, and fiber type, and includes footage markers. Custom print can also be accommodated.
Cleaning your fiber connector end faces and components regularly is crucial for avoiding a total network failure. Ensure your optical fiber system is working properly and prevent major network issues with fiber cleaning kits, pens, fluids, and wipes.
Features
- 900um tight buffered
- Aramid yarn strength members.
- Durable OFNP plenum jacket.
- Exclusive use of Corning® optical fibers.
- Jacket print ensures product identification and fiber compatibility.
- Buffers strip consistently between 3.5-5 lbs/FT, helpful for onsite termination.
- Durable jacket offers added protection during installation and in rugged use applications.
Applications
- General indoor applications.
- Trunk cable between floors.
- Data centers.
Temperature Range
- Storage Temperature: -40ºC to +70ºC
- Operating Temperature:
- 2-24 Strand: 0ºC to +70ºC
- 48-72 Strand: -40ºC to +70ºC
Cable Characteristics
- Fiber Count Options: 2, 6, 12, 24, 48, 72
- Outer Jacket Material: Flame Retardant PVC
- Buffer Tubes: Flame Retardant PVC
- Strength Member: Aramid Yarn
- Central Strength Member: Fiber Reinforced Rod
- Coating on Central Strength Member: Flame Retardant PVC
Mechanical Characteristics
Nominal Outer Diameter:
- 2 Strand: 4.4 mm
- 6 Strand: 4.8 mm
- 12 Strand: 5.8 mm
- 24 Stand: 7.8 mm
- 48 Stand: 15.40 mm
- 72 Stand: 20 mm
Weight:
- 2 Strand: 44 lbs/km
- 6 Strand: 57 lbs/km
- 12 Strand: 81 lbs/km
- 24 Stand: 138 lbs/km
- 48 Stand: 410 lbs/km
- 72 Stand: 695 lbs/km
Minimum Bend Radius (Installation):
- 2 Strand: 6.6 cm
- 6 Strand: 7.2 cm
- 12 Strand: 8.7 cm
- 24 Stand: 11.7 cm
- 48 Stand: 23.10 cm
- 72 Stand: 30 cm
Minimum Bend Radius (Operation):
- 2 Strand: 4.4 cm
- 6 Strand: 4.8 cm
- 12 Strand: 5.8 cm
- 24 Stand: 7.8 cm
- 48 Stand: 15.40 cm
- 72 Stand: 20 cm
Optical Characteristics
- Core Size: 9 um
- Wavelength: (1310/1550) nm
- Max. Attenuation: (0.5/0.4) dB/km
- Bandwidth (EMB) (High Performance): N/A
- Link Length : 10,000/5,000 (1/10 Gb/s@1550nm)
