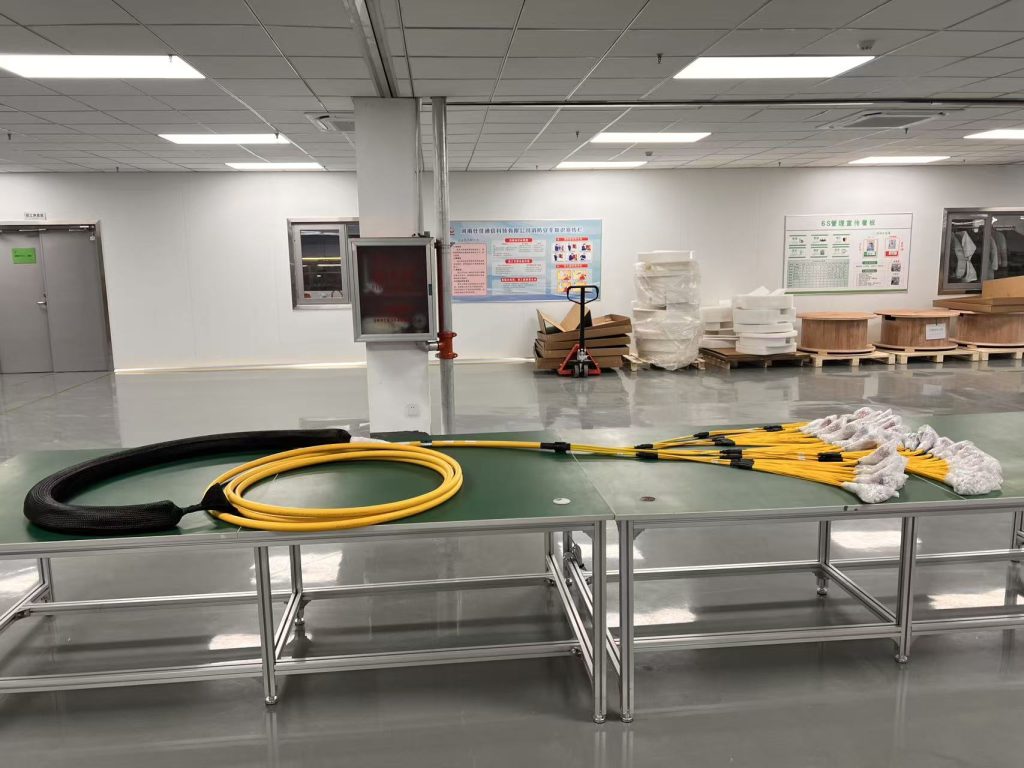

Ultra High Fiber Count Assemblies SC LC MPO
Our groundbreaking Ultra-High Fiber Count MPO,LC,SC Trunks redefine data center interconnectivity, delivering an exceptional density of up to 3456 fibers per assembly. Skilfully engineered using state-of-the-art technology, these trunks fuse our pioneering Wrapping Tube Cable (WTC) with our innovative SpiderWeb Ribbon® (SWR®) fiber. This allows the assembly to accommodate a high number of fibers within an incredibly compact and lightweight cable while ensuring superior climatic and water-blocking protection.
Our use of MPO,LC,SC connectors eliminates the need for field splicing, considerably reducing labor costs and installation time. Each trunk can be customized to meet specific application requirements and hardware design considerations, including tailored fanout tail length and breakout module positioning. We also offer the flexibility of single-end termination, leaving the other end accessible for field splicing, if needed.
These trunks present a game-changing solution for organizations striving to optimize their data center potential, all while reducing installation and operational complexities. Experience the revolution in data center connectivity with our Ultra-High Fiber Count MPO,LC,SC Trunks.
Features
Built with industry-leading Wrapping Tube Cable (WTC) and SpiderWeb Ribbon® (SWR®) Cable
Ultra-high-fiber count assemblies ranging from 288 to 3456 fibers
Smallest cable diameter and the lowest weight in the industry
Collapsible fiber ribbons for superior cable adaptability
Superior climactic and water-blocking properties
MPO Interface
MPO components feature superior optical and mechanical properties
Female and Male MPO connectors available
MPO Connectors both ends or one end
Base-12, Base-16, Base-24 connectors available
Standards-based polarity options available
Optimized Performance
Low loss Premium MPO connectors and Bend Insensitive fiber assure low insertion losses and reduced power penalties in tight budget high-speed network environments
100% factory tested for proven reliability connectivity
Manufactured in accordance with TIA 568 and IEC 61754 standards
Ultra-High Fiber Count Trunk for Easy Installation:
Convenient pulling grip, available on one or both ends
Customizable fanout tail length and breakout module position can be tailored to specific needs
Waterproof pulling grip available upon request
Benefits
Fast, One-Person Installation
Factory terminated and pre-tested for immediate plug-and-play deployment
Less specialized installation work required
Rapid Deployment
Factory-terminated assembly saves installation and reconfiguration time during moves, adds, and changes
Select your required assembly length to reduce cable pathway congestion
Space-Efficient
High fiber packing and compact cable construction maximize duct and rack space
Applications
Data Center Interconnect (DCI)
Campus Back Bone
Hyperscale Data Center
Colocation Data Center
Specifications
Fiber
Characteristic
Fiber
G657A1
Breakout Tails
Customized according to application
Pulling Grip
One End or Both Ends; Standard 50mm OD or Compact Size 40mm OD
