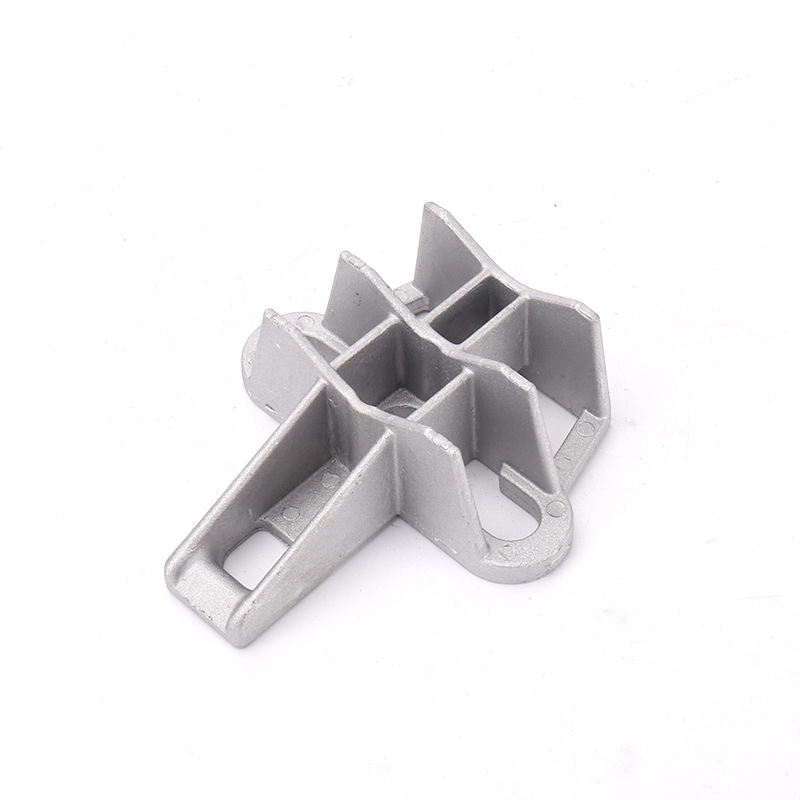

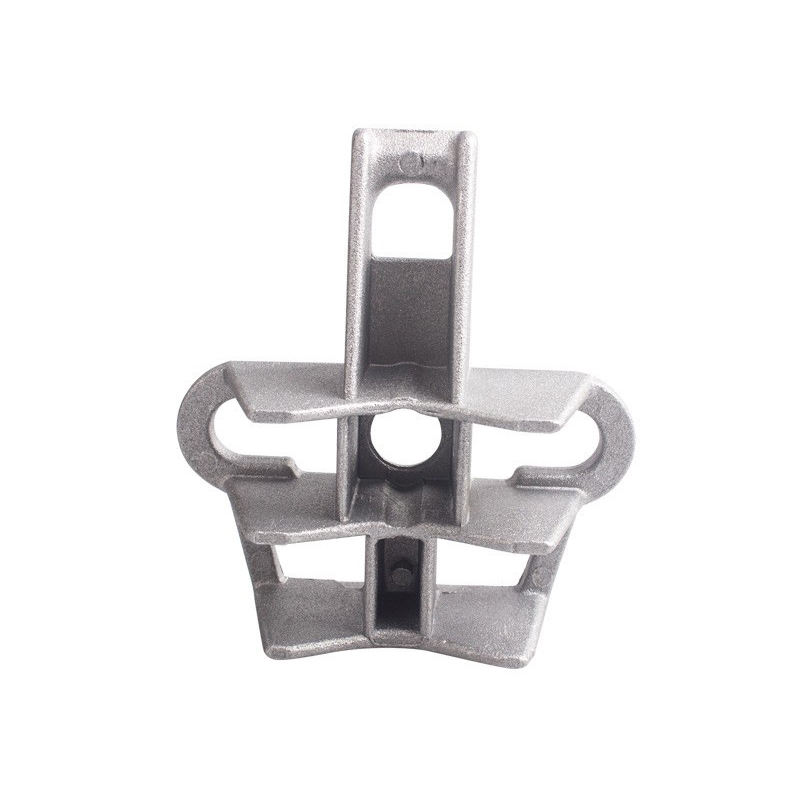

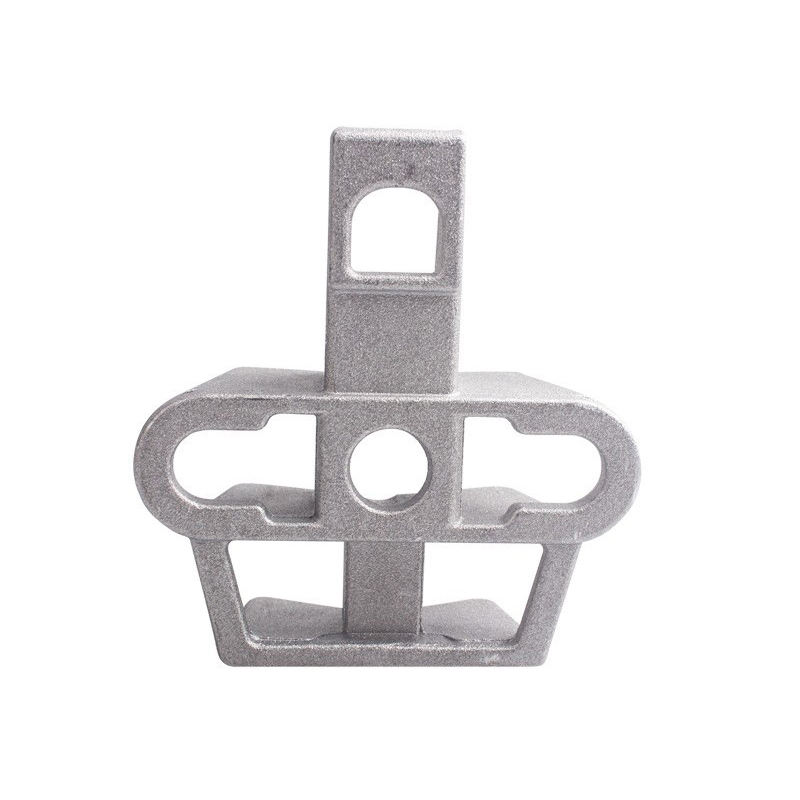

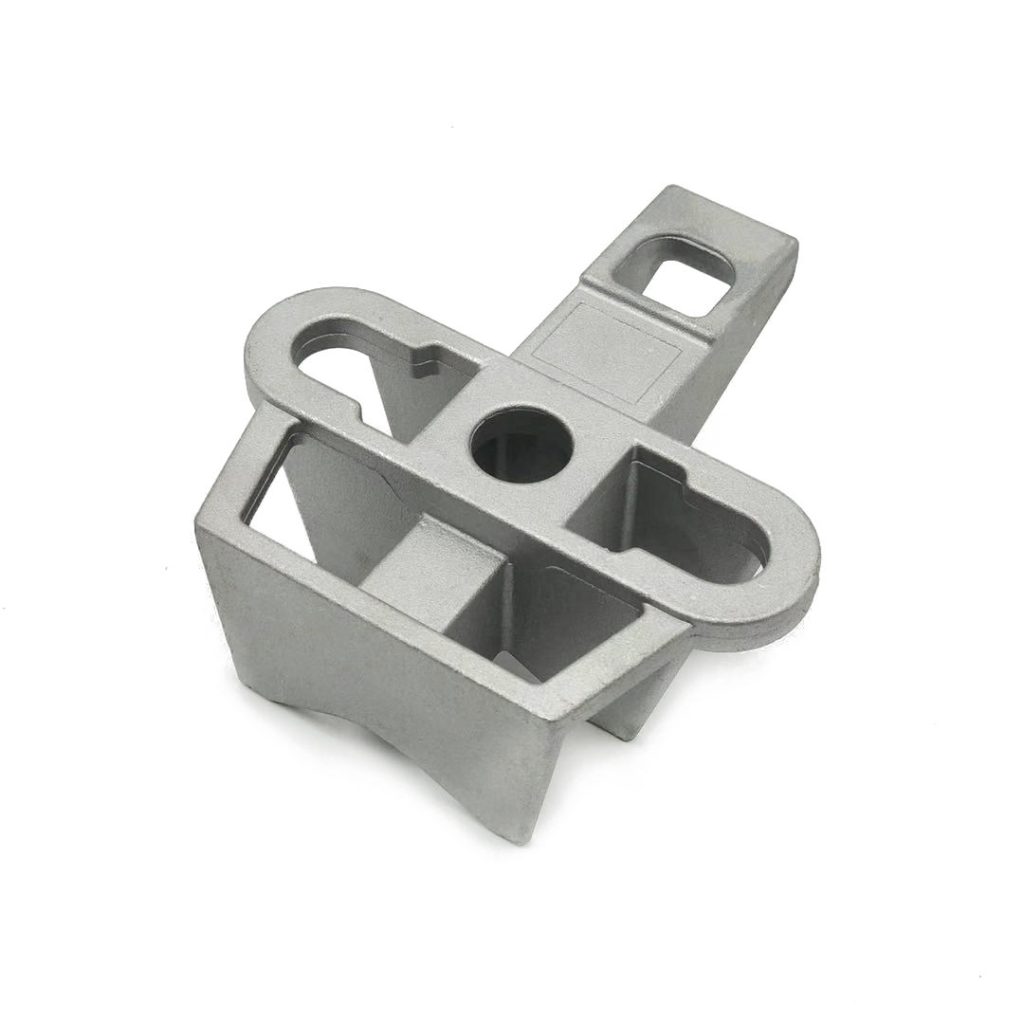

The Universal Pole Bracket (UPB) is a robust, patented bracket solution engineered for high-performance support in a wide range of outdoor telecom, utility, and fiber optic installations. Designed for maximum flexibility and reliability, the UPB bracket adapts seamlessly to all types of poles—wooden, metal, or concrete—making it the go-to universal mounting hardware for pole-based deployments.
Whether you are working on fiber optic networks, power distribution, or communication line installations, the Universal Pole Bracket delivers unmatched versatility, strength, and ease of installation.
Engineered for Strength and Durability
The UPB bracket is manufactured from high-grade aluminum alloy, offering exceptional mechanical strength while remaining lightweight and corrosion-resistant. This material choice ensures long-lasting performance even in harsh outdoor environments, such as coastal areas, industrial zones, or extreme weather conditions.
The aluminum alloy structure is:
- Corrosion-resistant for long service life
- High tensile strength to withstand heavy loads and external stress
- Lightweight, reducing overall installation effort and transport cost
Universal Design – One Bracket for Every Pole
What makes the Universal Pole Bracket truly stand out is its patented universal design. It eliminates the need for multiple bracket types by accommodating all common pole materials and installation methods. Whether the pole is drilled or undrilled, and whether it’s made of wood, concrete, or steel, the UPB bracket can be reliably mounted using one of two common methods:
Two Installation Options

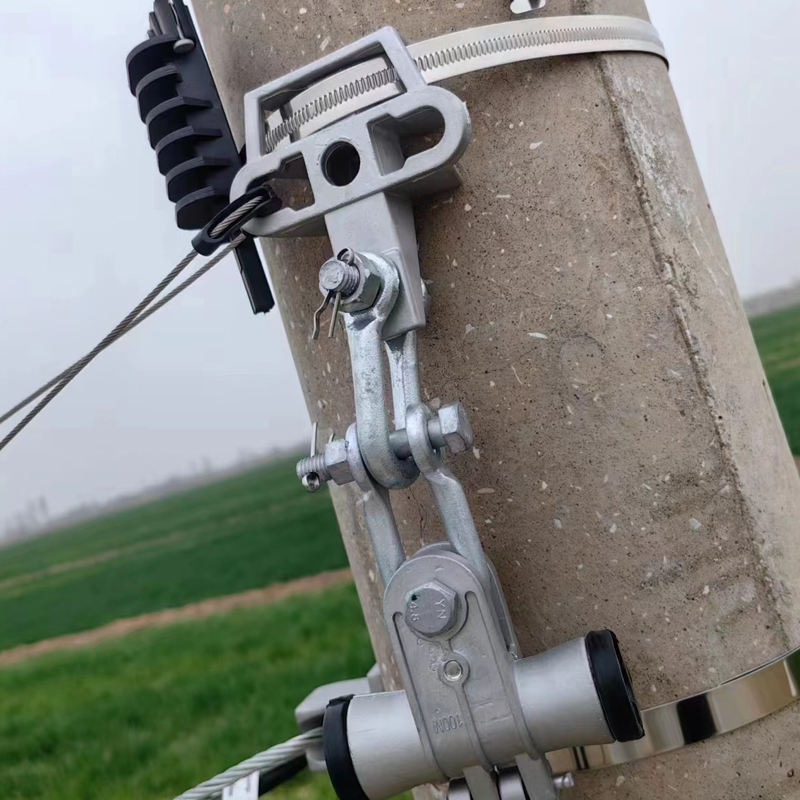

1. Band Mounting Method (Undrilled Poles)
The UPB bracket can be mounted to any undrilled pole using stainless steel bands. This is the most commonly used method for poles where drilling is not allowed or feasible.
Recommended setup:
- Two stainless steel bands (20 mm x 0.7 mm) – Model: SB207
- Two stainless steel buckles – Model: B20
Each bracket typically requires two bands, each about 1 meter long. These bands provide a secure grip around the pole without causing damage to the structure.
We recommend exploring our full range of pole banding products for compatible accessories.
2. Bolt Mounting Method (Drilled Poles)
For drilled poles, particularly wooden poles and some concrete ones, the UPB bracket can be securely fastened using bolts.
Recommended bolt size:
- Diameter: 14 mm or 16 mm
- Length: Pole diameter + 50 mm (to account for bracket thickness)
Bolts offer a more rigid, permanent solution where pole drilling is permitted. Visit our bolt accessories page to explore suitable options.
Applications of the Universal Pole Bracket
The Universal Pole Bracket is designed for a variety of outdoor network infrastructure projects, including:
- FTTH (Fiber to the Home) installations
- Aerial cable suspension systems
- Telecommunication line anchoring
- Utility pole equipment mounting
- Power and transmission cable support
Its adaptable design reduces installation time and simplifies logistics for field engineers, making it a favorite among telecom operators, fiber internet providers, and utility contractors worldwide.
Key Benefits of the Universal Pole Bracket
- Universal Compatibility – Fits wood, metal, and concrete poles
- Multiple Mounting Options – Use with bands or bolts
- Corrosion-Resistant Aluminum Alloy – Ideal for outdoor conditions
- Patented Design – Engineered for strength and reliability
- Reduces Inventory Complexity – One bracket covers all use cases
- Lightweight & Easy to Transport – Simplifies field logistics

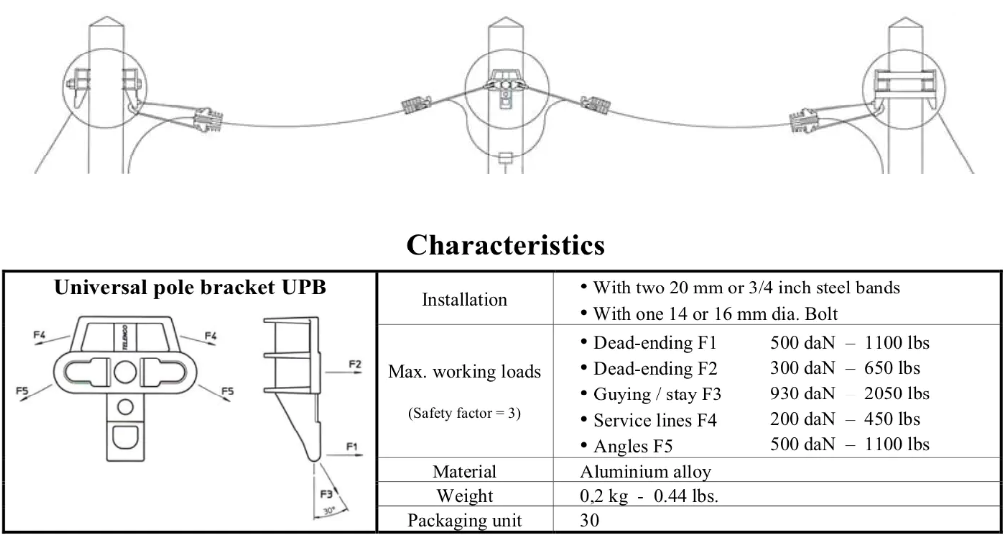

Technical Specifications
| Feature | Specification |
|---|---|
| Material | High-strength aluminum alloy |
| Mounting Methods | Band (SB207 & B20) or Bolt (14/16 mm) |
| Compatible Pole Types | Wood, Metal, Concrete |
| Recommended Band Size | 20 mm x 0.7 mm stainless steel |
| Recommended Bolt Length | Pole diameter + 50 mm |
| Corrosion Resistance | Yes (suitable for outdoor environments) |
| Patented Design | Yes |
| Application | Telecom, Utilities, Fiber Optic, Aerial Cabling |
How to Install the Universal Pole Bracket
Step 1: Choose Your Mounting Method
- For undrilled poles: Use SB207 bands and B20 buckles.
- For drilled poles: Use appropriate bolts.
Step 2: Position the Bracket
Align the bracket to the desired height and orientation on the pole.
Step 3: Secure the Bracket
Tighten the bands using a banding tool, or insert and tighten bolts through the bracket holes.
Step 4: Attach the Cable Hardware
Once secured, proceed with mounting aerial cables or other hardware components to the bracket.
Get a Quote or Free Sample
Interested in testing the Universal Pole Bracket for your project? We offer free samples and fast worldwide shipping. Contact us now to request a quote or start a WhatsApp chat with our technical sales team.
