Fabric Innerduct That Maximize Your Business
Maximize your Cablings with High Quality Fabric Innerduct, Ready to Ship for Urgent Orders usually.
Various Sizes
Robust Packing
Quality Assurance
Custom & Stock Fabric Innerducts
China Fabric Innerducts supplier from Custom to Delivery, Urgent Order fulfilled
2 Inch 3 Cell Fabric Innerduct
2.2″ 3 Cell Fabric Innerduct
3 Inch 3 Cell Fabric Innerduct
Fabric Innerducts Catalog for You Specially
Learn more details and prices from the Fabric Innerducts brochure especially for you. It might be a good benchmark to your future purchasing.
Why Use Fabric Innerducts?
Long Distance Laying
The friction coefficient of sub-pipe is low and prevents the friction between cables
Suitable Special Environment
Low requirement on construction site, especially in downtown area
Convenient Construction
Braided sub-pipe has no bending memory and doesn’t curl like PE sub-pipe
Long Service Life
The textile sub-pipe has high chemical inertness and could be exposed with design life of 50 years
Protect Cable & Pipe
Tensile strength of braided sub-pipe is more than 1,000 kg
Bent Freely
Braided sub-pipe is not twisted during the laying and could be bent freely
How to Choose Fabric Innerduct?
3 Easy steps for you to custom or wholesale fabric innderduct, Your logo can be printed on the innerducts.
1

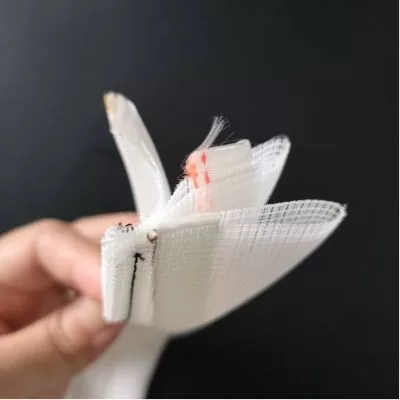

Cells of fabric innerduct
Such as single cell, 2 cells and 3 cells fabric innerduct for installation.
2
Width of Each Cell
The width of cell is to fit your fiber optic cable diameters,or just tell us if you already have an idea.
3
With or Without Tonable Wire
If tonable is requested, You can ask us to add a copper wire inside the fabric innerduct.
If you have any further questions, Please feel free to contact our sales experts, You will be answered within 6 hours.
What is more?

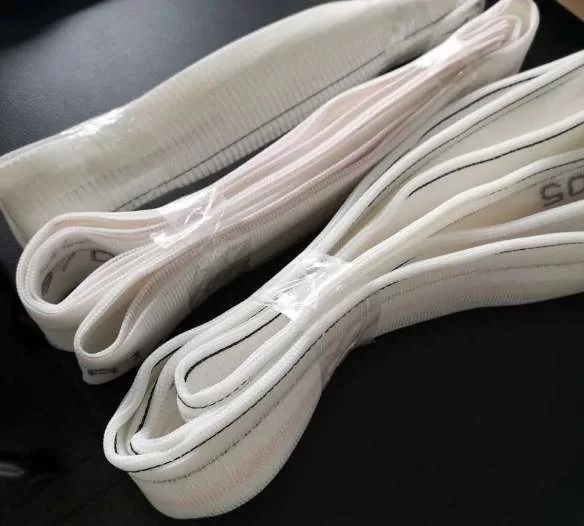

Custom or wholesale fabric innderduct, Free sample is ready for same day shipping.
Your Fabric Innerducts Supplier
Bativ is your one-stop supplier for all custom & urgent need Fiber Fabric Innerducts solutions. We promise to be there for you if you want to scale your business. We provide 1 cell, 2 cells, 3 cells fabric innerducts, Also the size can be 1 inch, 2 inches, 2.2 inches, 4 inches or as your request, With us, you have all Fabric Innerducts buying will be extremely easy and safe.

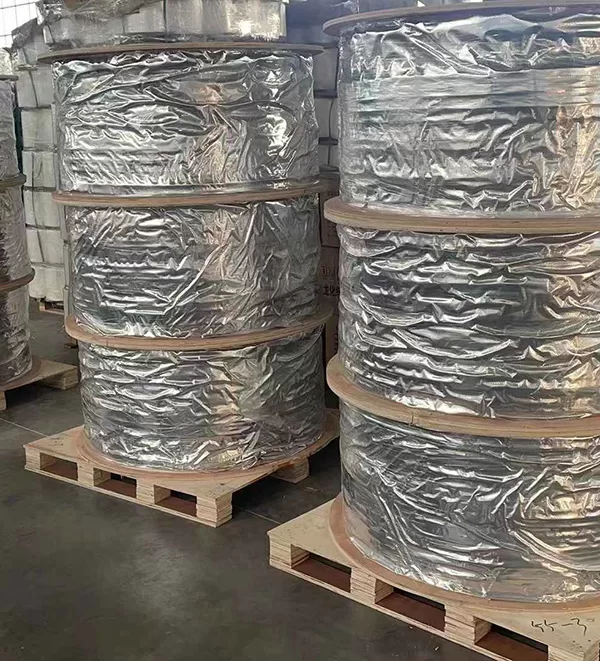

Packaging & Shipping
When we pack your Fabric Innerducts, Each of them are on a robust wood drum and every 2-4 drums loaded on a pallet. The whole delivery process will be very safe and convenient.

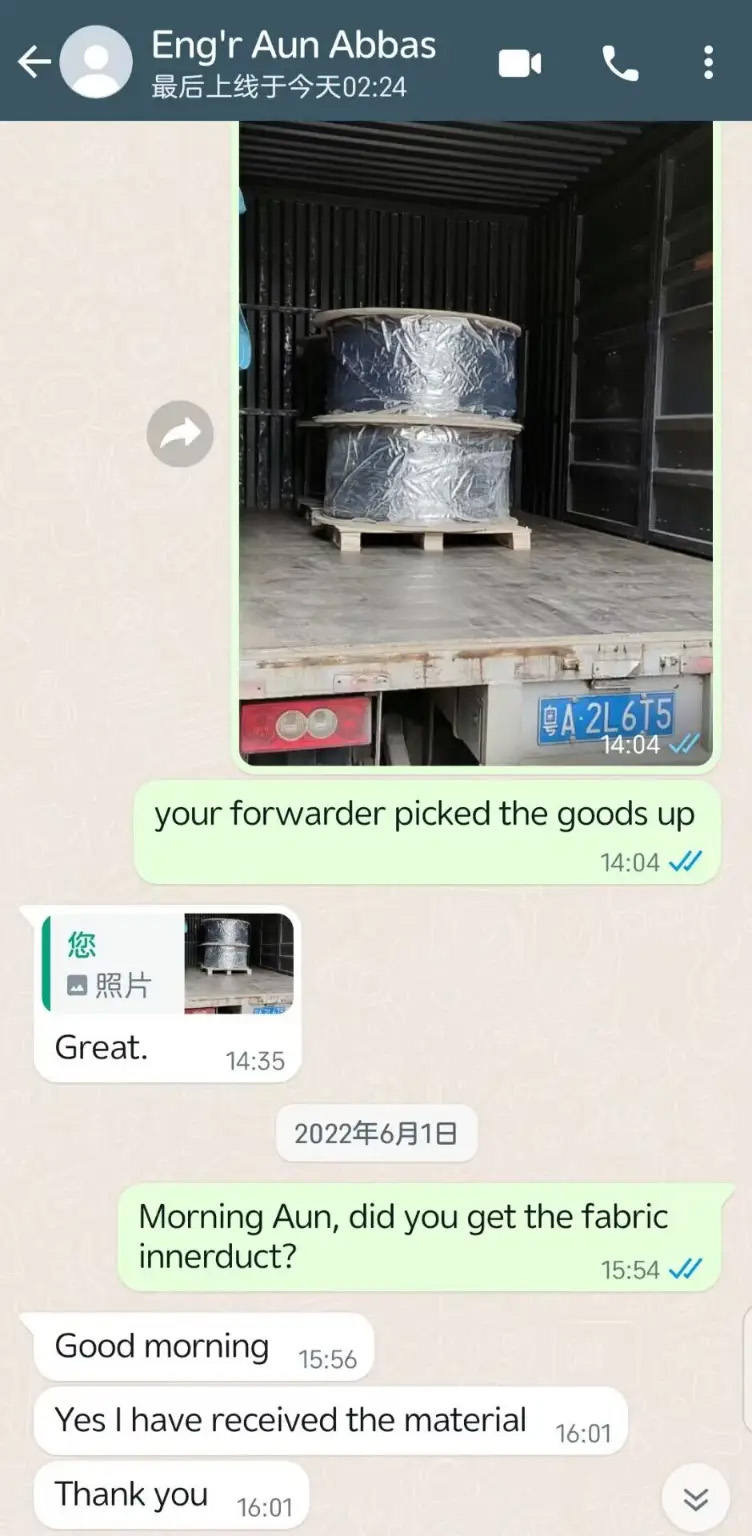

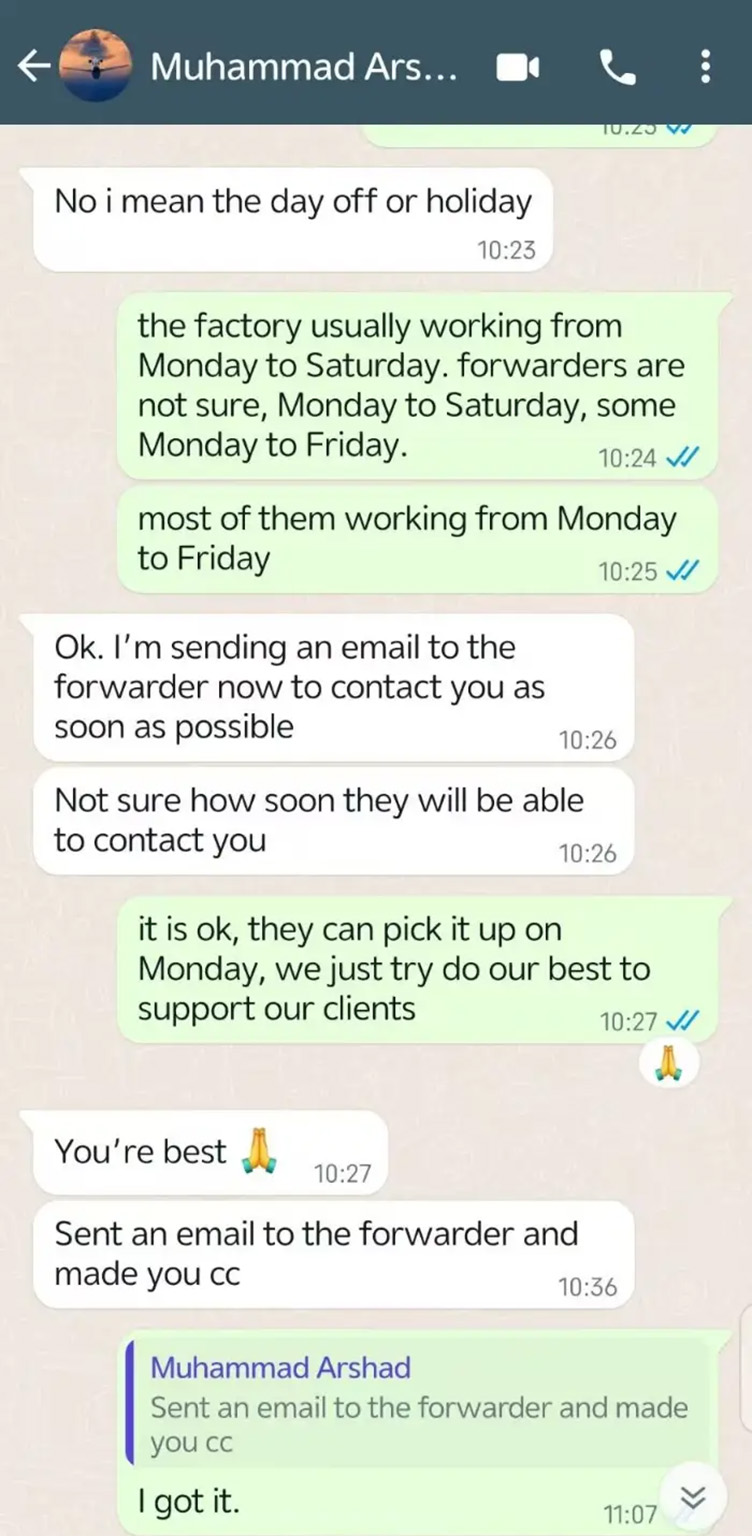

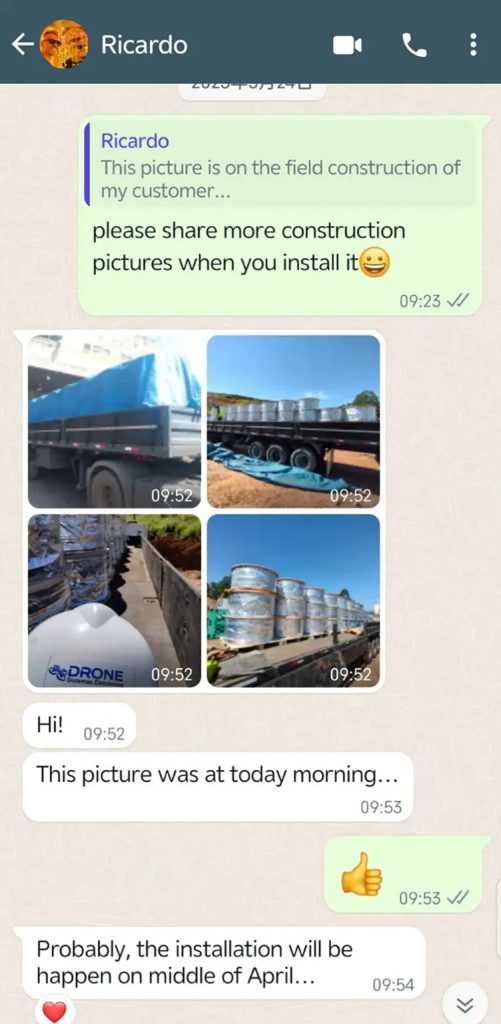

Our Customers Reviews
With successful projects for 680+ customers, your projects will be also fulfilled.
FAQs

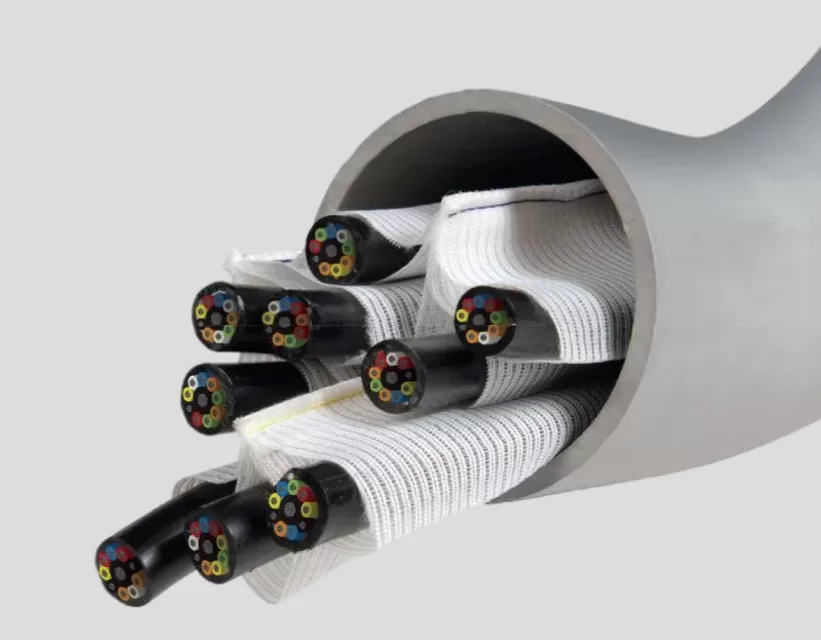

What is fabric innerduct ?
An innerduct for segregating cables in a conduit is provided wherein the innerduct is constructed from one or more strip-shaped lengths of a woven textile fabric and configured to provide multiple longitudinal compartments for the cables, and the textile fabric has a warp of monofilament yarn ends and a filling of a combination of monofilament and multifilament yarn picks, with the multifilament yarn picks being multiple-inserted yarns.
Fabric Innerduct is the only flexible fabric innerduct system designed specifically for the network construction industry. The unique fabric construction greatly reducing the wasted space associated with rigid innerduct.
Fabric Innerduct is an new material pipe, it is specialized design for network constructionindustry.Comparing with HDPE Sub-pipe, Fabric Innerduct is flexible belt pipe which weavedby mesh fabriC, but HDPE Sub-pipe is fixed pipe. Our Fabric Innerduct need less spaceinunderground pipeline, so it can put more optical cable in same space pipeline withour FabricInnerduct. It have character of good flexible, easily installing and unrecyclable etc
Inflatable type culvert sealing system, which have been widely used in the design of underground culvert constructions in the industries of electric system, telecommunications, port, urban construction, rail transportation and so on. Provide a clean and dry operating environment to cables and other electrical equipment after installation, improve the degree of protection, and reduce the works of cleaning up sludge and stagnant water in the manual well before the maintenance works.
What is the most used Fabric Innerduct Specifications?
When you have an idea about your fiber optic cable diameters, You can refer to the below table to choose the suitable fabric innerduct for your application. To make sure the suitability, You can ask us directly or request a free sample for evaluation.
| Model | Max Cable Diameter(mm) | Width（±2.0mm）（mm） | ||||
| Circum | Diameter | Width A | Seam B | Pull Tape WidthC | ||
| FZ8638-x | 38 | 163 | 52 | 86 | 4 | 8 |
| FZ6428-x | 28 | 121 | 38 | 64 | ||
| FZ5624-X | 24 | 103 | 33 | 55 | ||
| FZ5222-x | 22 | 97 | 31 | 52 | ||
| FZ4418-x | 18 | 81 | 26 | 44 | ||
| FZ3614-x | 14 | 65 | 21 | 36 | ||
| FZ3212-x | 12 | 56 | 18 | 32 | ||
| FZ2810-x | 10 | 49 | 15 | 28 | ||
What are the features of fabric innerduct?
1. Light construction
The textile sub-tube has no bending memory; it does not curl like a PE sub-tube;
The textile sub-tube will not be kinked during laying and can be bent freely during laying;
The textile sub-tube is preset with high-strength draw tape in each hole, and the laying of the cable does not need to be through-hole, and the laying is more convenient and quick;
The construction site requirements are very small, especially suitable for busy districts.
2. Protection cable and outer tube
The breaking strength is above 1000 kg;
Textile tube melting point = 215。C, while HDPE sub-tube = 110。C;
The thermal expansion and contraction rate of the textile tube is 1/7 of that of the HDPE sub-tube;Prevents wear between cables.
3. Long lasting
The textile sub-tube has high chemical inertness and can be exposed to a harsh underground environment for a long time. The design life is 30-50 years, and the life of the PE sub-tube is only 15 years.
4. Resolution recognition design
Two holes in the textile sub-tube product family, three holes will be preset with different colors of the draw tape for the differentiation during construction;
The textile sub-tube will print the meter mark when it leaves the factory to prevent unnecessary waste during construction;
When the textile sub-tube is delivered from the factory, it will be labeled according to the customer’s needs, such as A, B, C A1, A2, A3, etc., used to distinguish the multiple textile sub-tubes in the pipeline, to facilitate the maintenance of the line.
5. Environmentally friendly design concept
The textile sub-tube can reach 30-50 years underground. Ordinary HDPE sub-tubes will form slag due to aging in the ground for a long time, and become a blockage in the pipeline. The textile sub-tube solves this problem from the design concept and has high environmental protection for the pipeline.
What is the application of fabric innerduct?
Our Fabric Innerduct mainly applicate for the network construction industry of:
- Telecom
- Mobile Backhaul
- Cable TV
- Municipalities
- Power/Utilities
- Military and Government installations
- University, Corporate, and Hospital campuses
What is tensile strength of textile fabric innerduct?
| Fabric Innerduct Item # | Tensile strength |
| FZ8638-1 | >760kg |
| FZ8638-2 | >1440kg |
| FZ8638-3 | >2120kg |
| FZ6428-1 | >592kg |
| FZ6428-2 | >1104kg |
| FZ6428-3 | >1616kg |
| FZ5222-1 | >496kg |
| FZ5222-2 | >900kg |
| FZ5222-3 | >1300kg |
| FZ4418-1 | >432kg |
| FZ4418-2 | >784kg |
| FZ4418-3 | >1136kg |
| FZ3614-1 | >368kg |
| FZ3614-2 | >650kg |
| FZ3614-3 | >940kg |
| FZ3212-1 | >332kg |
| FZ3212-2 | >584kg |
| FZ3212-3 | >836kg |
| FZ2810-1 | >304kg |
| FZ2810-2 | >528kg |
| FZ2810-3 | >752kg |

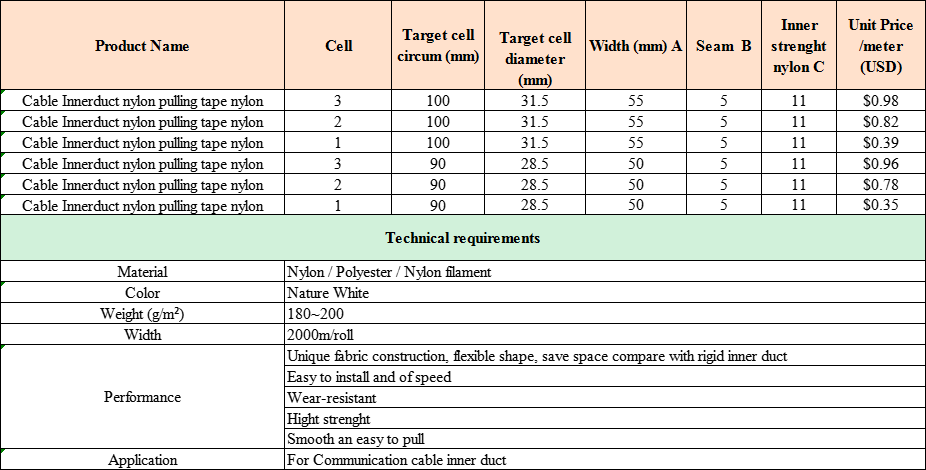

Price list of the most commonly used fabric innerduct?
Most customers who are interested in Fabric Innerduct send inquiries for the below common items, if you are also looking for similar Fabric Innerduct for your outside plants, you can refer to the below pricing table.
For more assistance, please feel free to contact us to get a quick quote or discount.
Send Inquiry Now
Bativ Services Always Go Extra Mile
OEM & ODM Available
Whether you want to have your logo on package or want to custom it differently, we can help you.
Lighting Fast Delivery
If you are no in need of special fiber optic products, just the finished product, The inventory will be of fast delivery.
Start With Low MOQ
If you want to wholesale fiber optic products, we support a minimum order quantity of 1 pcs for the first order.
Trusted by Big brands since 2010
