Ready-to-Ship Fiber Optic Adapters
You name it we have it, Low Insertion Loss Fiber Adapters for your network. High Quality & Fast Delivery.
Factory Price
14 Years Experience
Quality Assurance
* FREE sample is available any time.

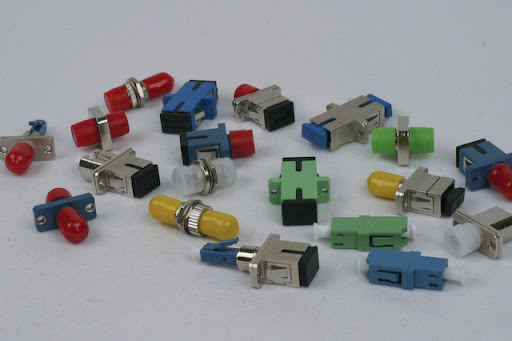

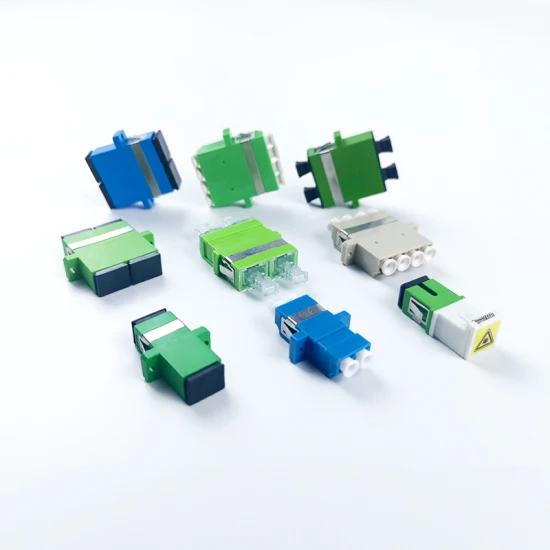

Featured Fiber Optic Adapters
Fiber Optic Adapters are small but important, Low Insertion Loss, Easy and safe, No Overpaying, Fast Delivery.
SC Fiber Optic Adapter
LC Fiber Optic Adapter
ST Fiber Optic Adapter
FC Fiber Optic Adapter
E2000 Fiber Optic Adapter

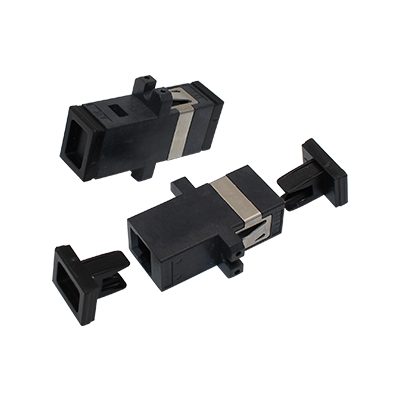

MT-RJ Fiber Optic Adapter
MTP / MPO Fiber Adapter

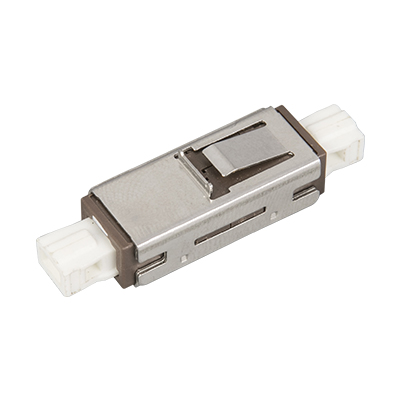

MU Fiber Adapter
Female to Male Fiber Adapter
LC Shutter Fiber Adapter
SC Shutter Fiber Adapter
LC-SC Fiber Adapter
Fiber Optic Adapter Catalog
Check the most used Fiber Optic Adapters with price list, Then you can get a very helpful reference for future procurements.
What is Important?
Low Insertion Loss
Usually the APC polishing less than 0.2dB and UPC less than 0.25dB.
100% Tested
Ideal for network, telecom and under-floor data center.
Different Color
High-quality tight-buffered cable protects the fiber optic core, Increases the strength & durability.
Premium Material
Adapter body and ceramic are from big factories in China
Ceramic Ferrule
The precision ferrules can reach up to 500 times insertion lifespan.
Polishing Quality
Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.
How to Choose Fiber Optic Adapter?
3 easy steps for you to wholesale Fiber Optic Adapter, Buy good quality adapter at low cost.
1
Fiber Connector Type
There are many types of adapters, such as SC LC ST FC E2000 MT-RJ, SMA, MPO etc.
2
Fiber Type & Polishing
Singlemode & multimode, UPC or APC polishing type, Usually the adapters is of long flange as default.
3
Fiber Capacity
Usually you can buy simplex fiber adapters of all fiber adapters, duplex, quad type for some types.
If you have any further questions, Please feel free to contact our sales experts, You will be answered within 6 hours.
What is more?
Fiber optic adapters are small but important, Bativ cares about it for you.
Wholesale Fiber Optic Adapters Supplier
Bativ is your one-stop supplier for all custom & urgent need for fiber optic adapters. We promise to be there for you if you want to scale your business. We provide SC, LC, FC, ST, E2000, MPO, MT-RJ, Simplex or duplex adapters, With us, you have all fiber optic adapters buying will be extremely easy and safe.

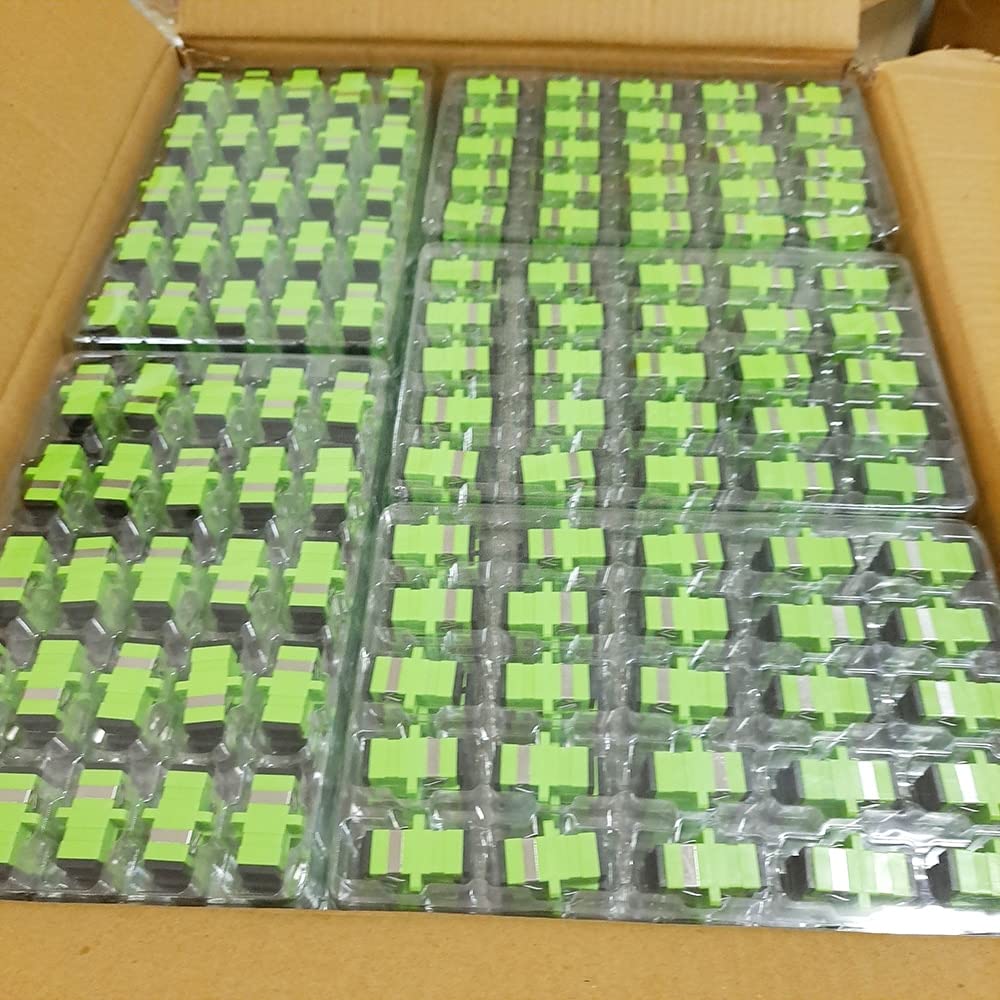

Packaging & Shipping
When we pack your fiber optic adapters, 25 or 50pcs of them are in one inner plastic module and 40 packages into an outer carton. The most important thing is to keep your package safe.
FAQs

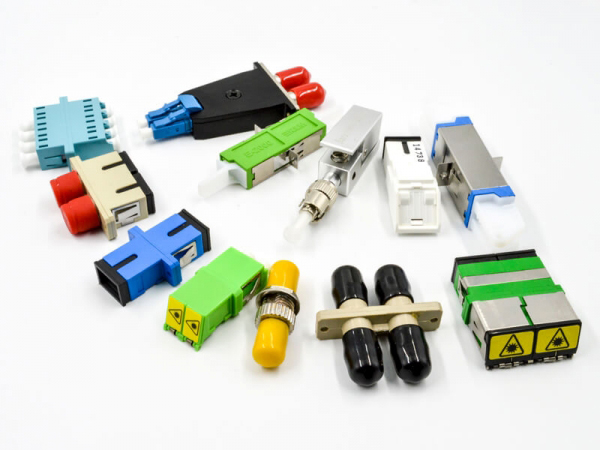

What is a fiber optic adapter?
A fiber optic adapter is a small device for connecting fiber optic patch cables together. Fiber optic adapters may come in different shapes, but they are all designed to achieve the same function—to join and align the connectors of two fiber optic patch cables.
A fiber optic adapter allows fiber optic patch cables to be attached to each other singly or in a large network, allowing many devices to communicate at once.
What are the types of fiber optic adapters?
- Easy Adapters: Two fibers are connected using these adapters, often in a single direction.
- Duplex Adapters: Duplex adapters link two fibers for both transmission and reception, enabling bidirectional communication.
- Quad adapters: Made for high-density applications, quad adapters may take four fibers and boost connection while taking up less room.
- Shuttered Adapters: These adapters include a protective shutter that shields the fiber ends from dust and other impurities, assuring excellent performance.
- Hybrid Adapters: In situations with mixed networks, these adapters are essential because they enable connections across various fiber kinds.
What are the types of fiber optic adapter catergorized by connection?

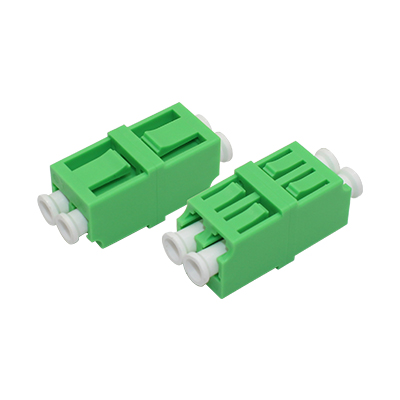

LC Adapter
LC adapters can be used for the connection of LC patch cables or LC connectors. There are different types including LC to LC, LC to FC, LC to SC, LC to ST, and LC to MU, etc. All these adapters can be available in simplex, duplex, quad, single-mode, multimode, UPC, APC, PC with plastic housing, zirconia sleeve, and optional bronze sleeve.

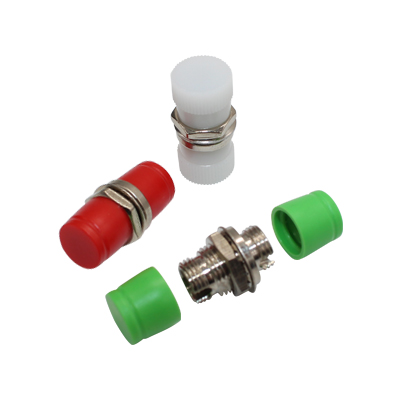

FC Adapter
FC adapters can be used for the connection of FC patch cables or FC connectors. FC adapters include square type, single D type and double D types, in single-mode and multimode versions. All these adapters are with metal housing and ceramic sleeves. The FC square adapter is available in the standard body styles with nickel plated brass or nickel plated zinc housing. FC round adapters come with a choice of D or double D Flange, and feature nickel plated brass housing for corrosion resistance.
SC Adapter
SC adapters can be used for the connection of SC patch cables or SC connectors. There are various types including single-mode and multimode, zirconia sleeve and bronze sleeve, simplex and duplex versions. Standard female to female SC adapter and hybrid SC adapters are also available. Typical SC adapters are with plastic housing. There are also metal housing SC adapters. Most of these adapters come with ceramic sleeves, while there are bronze sleeve SC adapters which are generally multimode types.

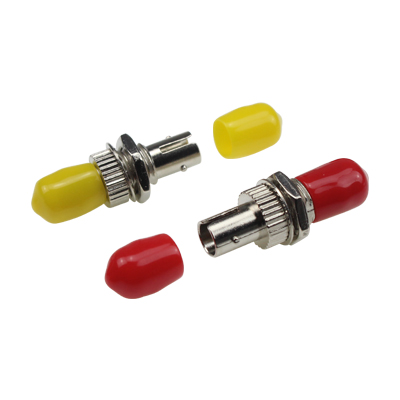

ST Adapter
ST adapters can be used for the connection of ST patch cables or ST connectors. There are simplex, duplex, single-mode, multimode, metal, and plastic ST adapters. Most ST adapters are simplex with zirconia sleeves, and optional bronze sleeve adapters are available for multimode.
E2000 Adapter
E2000 adapters can be used for the connection of E2000 patch cables or E2000 connectors. There are single-mode and multimode E2000 adapters. These adapters include both UPC and APC polish types. The E2000 adapters are with zirconia sleeves and in simplex style. E2000 is a trademark of Diamond company.

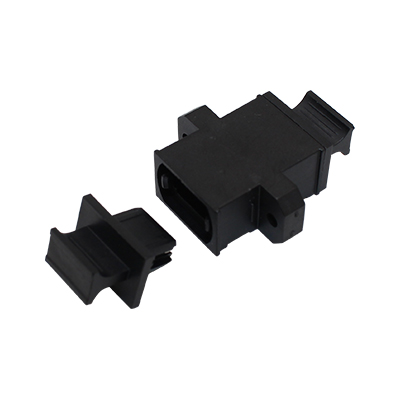

MTP/MPO adapter
MTP/MPO adapter provides the connection between cable to cable or cable to equipment in the MTP/MPO style. It works for any MTP Connector from 4 fiber to 72 fiber, which are widely applied in 10G/40G/100G networks, data center, optical fiber communication system, cable television network, fiber optic access network and video transmission.
A Special Fiber Optic Adapter: Bare Fiber Adapter
Bare fiber adapter is a type of adapter that can be used to attach a bare fiber optic cable to a connection piece. This type of adapter allows the cable to fit into a connection slot, whether into a mating sleeve or into an electronic device. The fiber optic cable can be fit into an adapter that works with any of the standard shaped connectors.
What is the MOQ and lead time for your custom fiber adapters?
It depends on the quantity you will order, Usually 1-3 days for 1000pcs, and 7-10 days for 1000-20000pcs. And 10-15 days for 20000 to 200,000pcs.
Can I get a FREE sample of fiber optic adapter?
Free sample is available any time, We believe it will be a good start between us when you tested our fiber optic adapter samples.
Send Inquiry Now
Bativ Services Always Go Extra Mile
OEM & ODM Available
Whether you want to have your logo on package or want to custom it differently, we can help you.
Lighting Fast Delivery
If you are no in need of special fiber optic products, just the finished product, The inventory will be of fast delivery.
Start With Low MOQ
If you want to wholesale fiber optic products, we support a minimum order quantity of 1 pcs for the first order.
Trusted by Big brands since 2010
