Stock & Custom Fiber Optic Pigtails Supplier
Saving on Fiber Optic Pigtails from Sourcing to Purchasing, You need it we have it. High Quality & Fast Delivery.
Advanced Factory
14 Years Experience
Quality Assurance
Custom & Stock Optical Fiber Pigtails
Your one-stop Fiber Optic Pigtails supplier from Custom to Delivery, Urgent Order fulfilled
SC Fiber Optic Pigtail

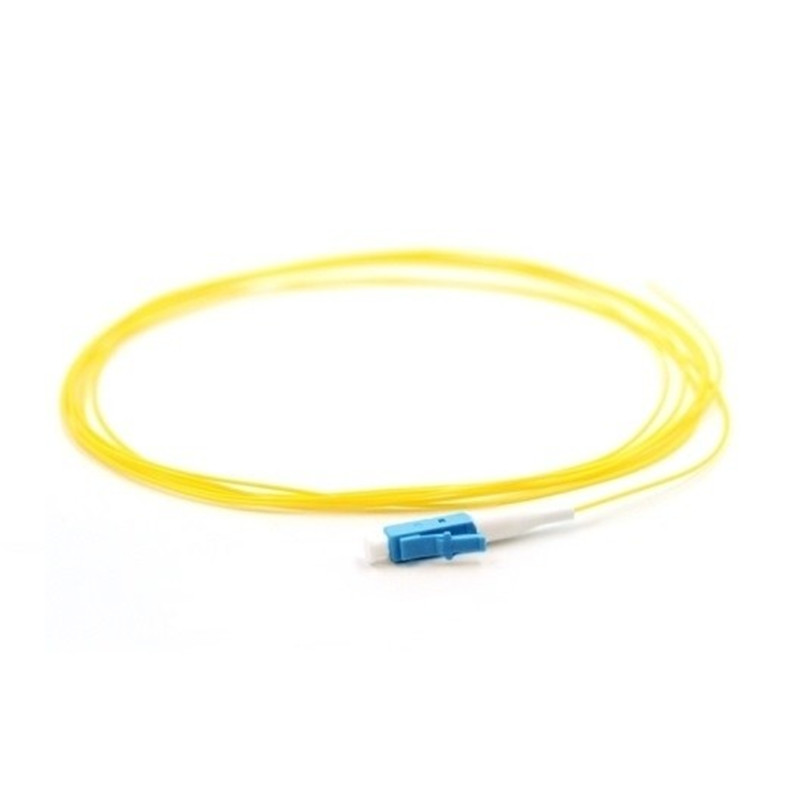

LC Fiber Optic Pigtail
SC 12 cores Fiber Optic Pigtail

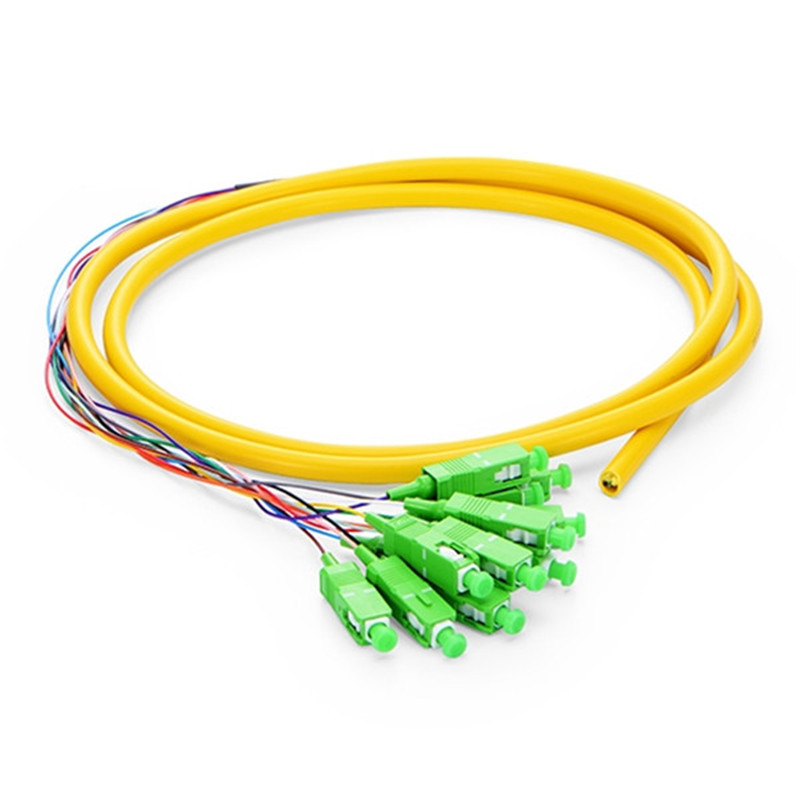

SC 12 cores Bunchy Fiber Optic Pigtail

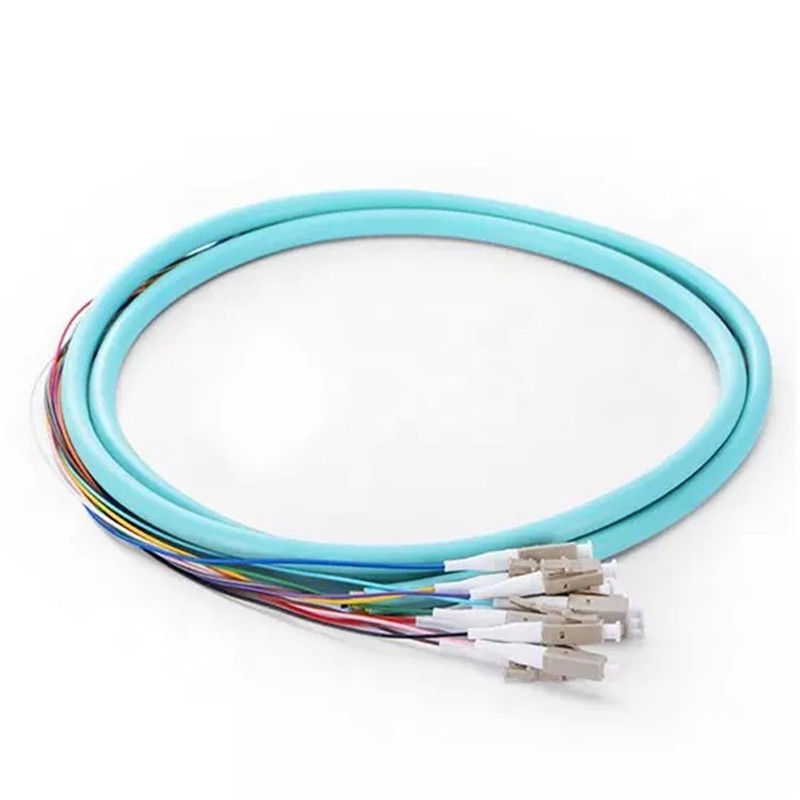

LC 12 cores Bunchy Fiber Optic Pigtail
LC 12 cores OM4 Bunchy Fiber Optic Pigtail

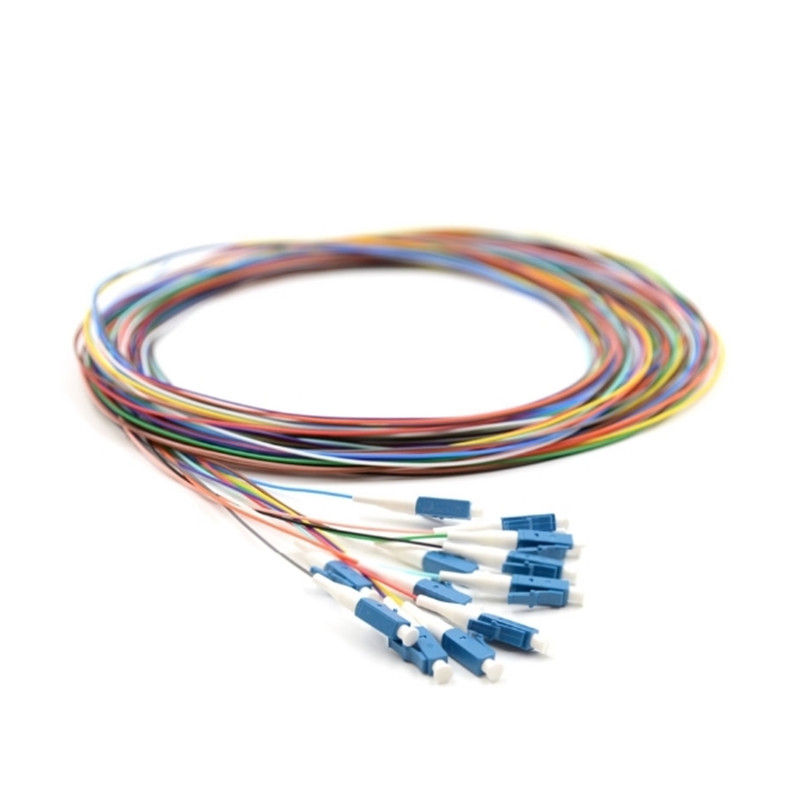

LC 12 cores Fiber Optic Pigtail

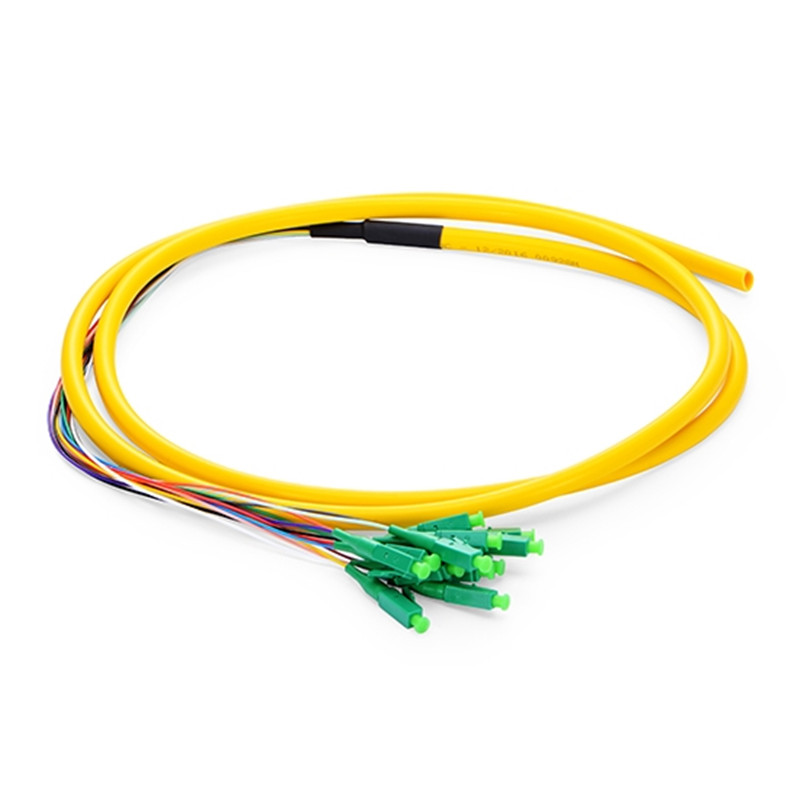

LC/APC Bunchy OS2 Fiber Optic Pigtail
LC OM5 Fiber Optic Pigtail

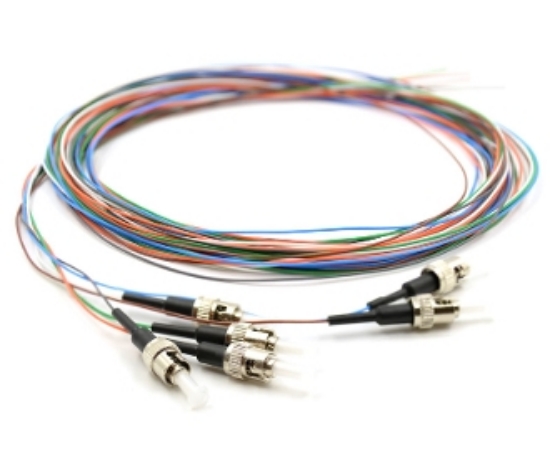

ST 12 cores Fiber Optic Pigtail

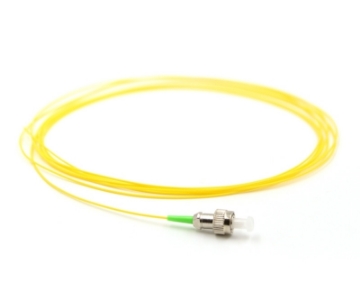

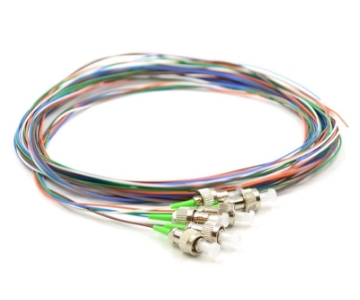

FC/APC 12 Fiber Optic Pigtail
FC SM Fiber Optic Pigtail

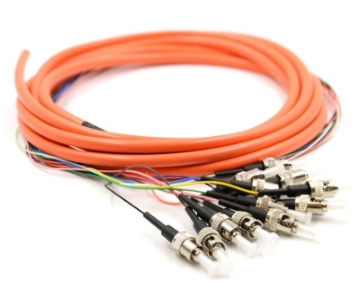

ST 12 cores Fiber Optic Pigtail

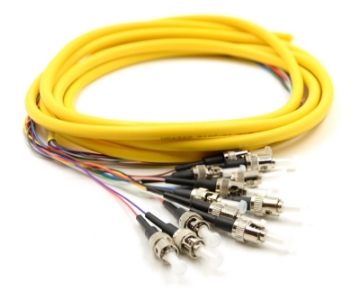

ST OS2 12 Fiber Optic Pigtail

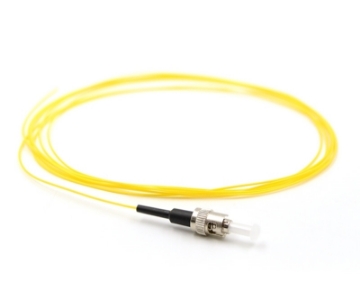

ST SM Fiber Optic Pigtail
Download Our Fiber Optic Pigtails Catalog for FREE
You can refer to the most popular and best sold Fiber Optic Pigtails with price list, A benchmark for your procurements. Get it Now.
How to Choose an Optical Fiber Pigtail?
We are a fiber connectivity-based company that takes pride in our superior customer service, sending you the best Optical Fiber Pigtail to your doorstep.
1
Selecting Fiber Connector & Polishing Type
You can select SC LC FC ST E2OOO MT-RJ, MPO etc, Then There are UPC & APC polishing type for options.
2
Choosing Fiber Cable & Diameter
There are different types of fiber optic cables, indoor and outdoor, Singlemode or multimode for options, In fiber pigtails making, The cabe diameter is often 900um, 2.0mm, 3.0mm for options.
3
Fiber Length
Normally you may need 1m length, You can also request for any length as per your application.
4
Custom Labeling
The suitable fiber connectors with PLC splitter makes easy to your connection in FTTH network.
If you are looking for some special fiber optic pigtails, You can also contact us directly, We will get back to you immediately.
Features
Low Insertion Loss
Usually the APC polishing less than 0.2dB and UPC less than 0.25dB.
100% Tested
Ideal for network, telecom and under-floor data center.
High Jacket Material
High-quality tight-buffered cable protects the fiber optic core, Increases the strength & durability.
High Return Loss
The return loss more than 55dB for UPC and 60dB for APC.
Ceramic Ferrule
The precision ferrules can reach up to 500 times insertion lifespan.
Polishing Quality
Superior cable assemblies reduce light loss and easily meet your diverse cabling requirements.
What is more?
Custom or wholesale Fiber Optic Pigtails at low cost, 100% of good quality with 540 days warranty.
Your Fiber Optic Pigtails Supplier
Bativ is your one-stop supplier for all custom & urgent need Fiber Optic Pigtail solutions. We promise to be there for you if you want to scale your business. We provide SC, LC, FC, ST, E2000, MPO, MT-RJ, Simplex or duplex, Indoor or outdoor cables, With us, you have all fiber patch cords buying will be extremely easy and safe.

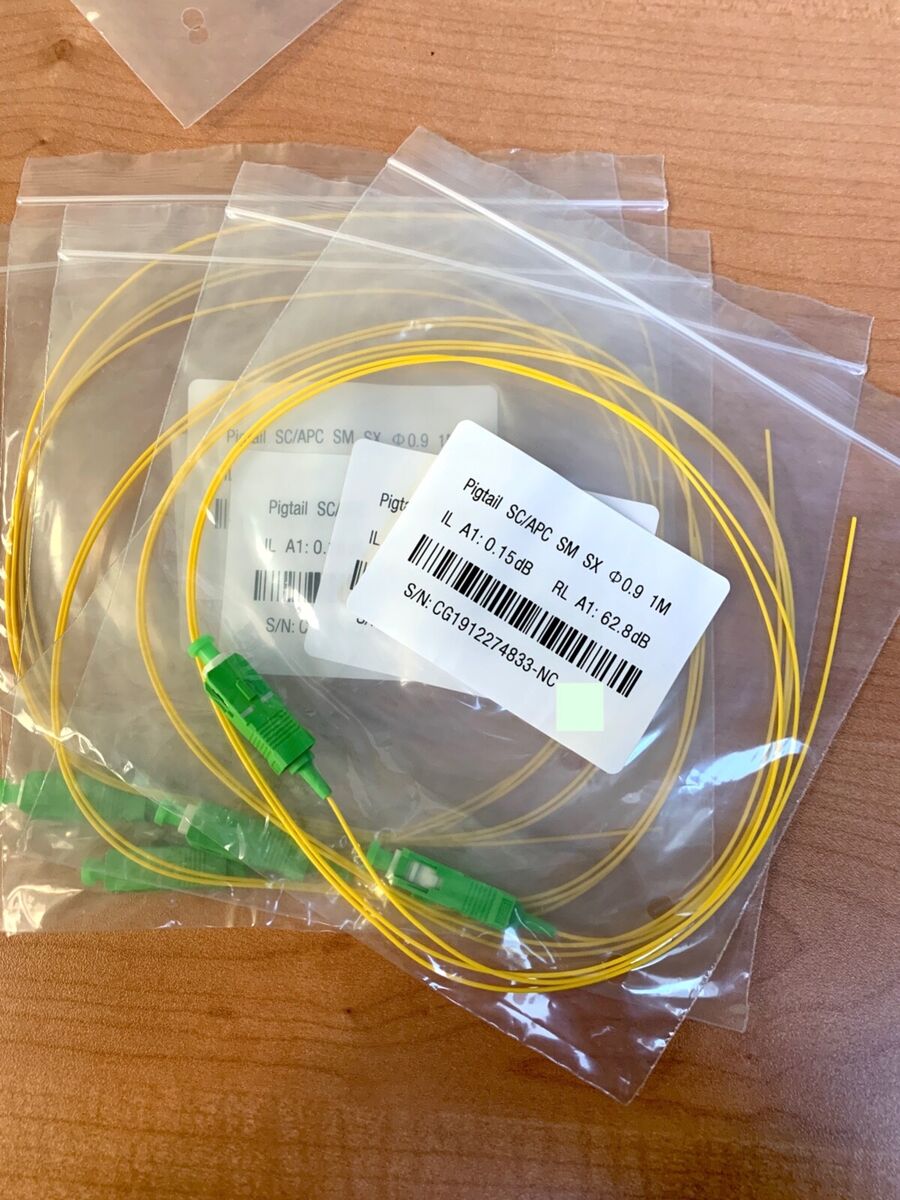

Packaging & Shipping
When we pack your Fiber Optic Pigtails, Each of them are in one inner carton and 4 inner carton into an outer carton. The most important thing is to keep your package safe.
Our Customer Reviews
With successful projects for 680+ customers, your projects will be also fulfilled.
Exceptional quality and service! Their fiber optic pigtails are reliable and easy to install, perfect for our network upgrades. The customer support team was helpful and guided us through product selection. With fast delivery times, we received our order promptly. Highly recommended
Aaron Boyce – Purchasing at Vexus Fiber
Impressed with their fiber optic pigtails! Sturdy construction and excellent performance. Ordering was seamless, and customer service was responsive. Quick delivery ensured minimal downtime during installations. A trusted partner for our fiber optic needs.
Jose Torres – Senior Manager of OSP at OEC Fiber
Top-notch fiber optic pigtails! High-quality materials and reliable connections. Ordering process was straightforward, with friendly customer service. Fast shipping got us the pigtails we needed right on time. Will definitely order again.
Donna Kimbrough – Senior Buyer at Ziply Fiber
FAQs
What is fiber optic pigtails?
Fiber optic pigtail is a fiber optic cable terminated with a factory-installed connector on one end, leaving the other end terminated. Hence the connector side can be linked to equipment and the other side melted with optical fiber cables.
What are the types of different fiber optic pigtails?
There are many types of fiber pigtails based on one different factor. Fiber connector types include LC pigtails, SC pigtails, ST pigtails, FC pigtails, MU pigtails, and E2000 pigtails. By fiber types, including single mode and mulitmode pigtails.
Next, Let us have a closer look at the fiber pigtails types.
By Fiber Type
Generally, fiber optic pigtails are classified as multimode and single-mode fiber.
- Multimode pigtails are made with 62.5/125μm or 50/125μm bulk multimode fiber cables and terminated with multimode connectors. However, if we want to classify them in more detail, we can divide them into OM1, OM2, OM3, OM4, and OM5 pigtails.
- Single mode pigtails are made with 9/125μm OS1 or OS2 bulk single mode fiber cables and terminated with single mode connectors.
Generally, pigtails are utilized in 99% of single mode applications but are also used in many multimode applications.
By Connector Type

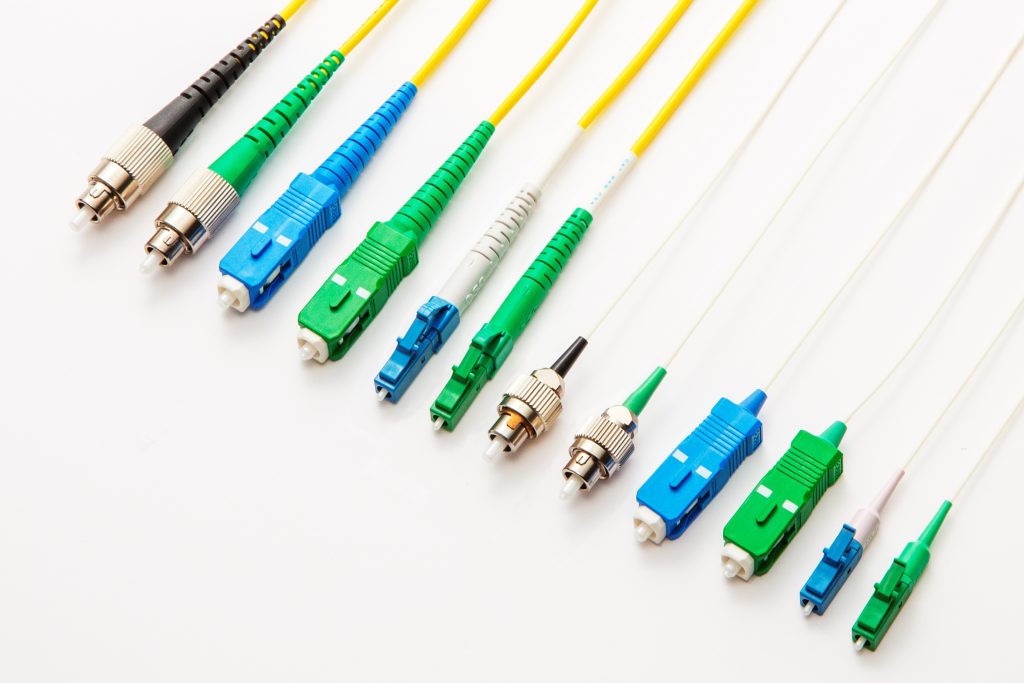

Based on the fiber connector type, we can divide the fiber pigtails into LC pigtails, SC pigtails, ST pigtails, FC pigtails, MU pigtails, E2000 pigtails, MPO pigtails, and so on. Next, Let’s take a close look at the regular types.
LC Fiber Pigtail
LC connectors are compact form factor fiber connectors for high-density connections. They are a 50% smaller version of the older SC fiber connector and have a square plastic enclosure with a 1.25mm ceramic ferrule. The LC fiber pigtails are pre-assembled with an LC connector. It is one of the most common types.
SC Fiber Pigtail
SC, which stands for Subscriber Connector, has also been called Square Connector or Standard Connector. The SC connector has a 2.5mm pre-radiused zirconia or stainless alloy ferrule. The SC fiber pigtails are pre-assembled pigtails with an SC connector. Because of the low cost, longevity, and ease of installation, SC pigtail is commonly used in both P2P and PON applications.
FC Fiber Pigtail
FC fiber pigtails benefit from the metallic body of FC optical connectors, which have a screw-type structure and high-accuracy ceramic ferrules. FC fiber pigtails and related items are widely used in various applications.
ST Fiber Pigtail
ST fiber pigtail is similar to the FC pigtail, but instead of threads, the ST connector has a locking mechanism different from FC connectors. It has a ferrule with an extended 2.5mm diameter composed of ceramic (zirconia), stainless alloy, or plastic. As a result, ST pigtails are commonly used in telecom, industry, medical, and sensor applications.
By Interface Polish Type
PC Fiber Pigtail
PC is an abbreviation for “physical contact” connector. A PC fiber pigtail made with physical contact polished connector. Most multimode pigtails are PC polished and widely used in the telecom sector and data systems.
UPC Fiber Pigtail
UPC stands for “ultra physical contact”. Unlike the PC fiber pigtail, this pigtail is made of a UPC connector with improved physical contact for reducing air gaps and lowering ORL even further. It is the most commonly polished type for single mode and multimode pigtails.
APC Fiber Pigtail
APC stands for “Angled physical contact”. It is designed to reduce back reflection even further. These connectors’ ferrule end faces are polished at an angle of 8 degrees. APC fiber pigtails are typically used in CATV, FTTx, and other WDM systems.
By Application Environment
Based on the different application environments, the fiber pigtails are classified as Regular Indoor Pigtail, Armored Pigtails, and Waterproof Pigtail.
Regular Indoor Pigtail
The most common type is the regular indoor pigtail, which has no extra protection and is bare fiber. It provides the best cost and tighter bend radius for the easily cabling. As its name suggests, these pigtails are only for indoor use and unsuitable for harsh environments.
Armored Pigtail
Enclosed with a stainless steel tube inside the outer jacket, the armored pigtail protects against damage caused by rats, construction activities, and the weight of other cables.
Waterproof Pigtail
The Waterproof fiber pigtail is made of rugged fiber connectors and has a stainless steel reinforced waterproof device and armored outdoor PE jacket. So it can protect the cable from twisting, pressure, or damage by mouse bites. The Waterproof fiber pigtail is intended for use in harsh outdoor environments, such as communication towers, military applications, etc.
By Fiber Count
The most common fiber pigtails have one fiber count, such as the simplex LC pigtail consists of one bare fiber with one terminated LC connector.
However, in some cases, the fiber count is also available in 2, 4, 6, 8, 12, 24, 48, and 72. Each fiber pigtail should be color-coded according to industry standard TIA-EIA-598-A.
By Fiber Constructure
Based on the fiber cable structure, we can divide them into Multi-fiber bundle pigtail, multi-fiber robbin pigtail, 0.9mm pigtail, and 2.0/3.0mm pigtail.
What is the difference between fiber optic pigtail and patch cord?
The main difference between these two cables is that pigtails have one side terminated with a connector and other side ends with bare fibers, while patch cords have two connectors terminated on both ends
How to use a fiber optic pigtails?
Mechanical Splicing is a simple alignment device that allows light to enter from one fiber to the other by holding the ends of the two fibers in precise alignment. This method has been around for many years. It continues to be popular because it provides immediate, straightforward termination with a limited waste of results as it requires fewer consumables than traditional epoxy/polished connector methods. Mechanical fusion splicing has a lower initial investment but a higher cost per splice.
How to customize fiber optic pigtails?
Custom fiber optic pigtails is easy here with Bativ, Just let us know connectors, fiber cables, length, polishing type, and other special requirements if you have. Then we can get back to you with our best quote or sample for your quality evaluation.
What is the lead time for fiber optic pigtails order?
It depends on the quantity you will order, Usually 1-3 days for 4000pcs, and 7-10 days for 4000-20000pcs. And 10-15 days for 20000 to 200,000pcs.
Can I get FREE sample of fiber optic pigtails before placing an order?
Free sample is available any time, We believe it will be a good start between us when you tested our fiber optic pigtails samples.
