Fiber Optic Protection Sleeve for Solid Splicing Protection
Top rated Fiber Optic Protection Sleeve supplier in China. Ready to Ship for Urgent Orders Globally. At Factory Price!
Advanced Factory
14 Years Experience
Quality Assurance
Featured Fiber Optic Protection Sleeves
Fiber Optic Protection Sleeves for your splicing, Easy and safe, No Overpaying, Fast Delivery.
1.5x60mm Heat Shrinkable Fiber Optic Splice Protection Sleeve
1.2x60mm Heat Shrinkable Fiber Optic Splice Protection Sleeve
1.0x60mm Heat Shrinkable Fiber Optic Splice Protection Sleeve
1.0x50mm Heat Shrinkable Fiber Optic Splice Protection Sleeve
1.5x50mm Heat Shrinkable Fiber Optic Splice Protection Sleeve
1.2x50mm Heat Shrinkable Fiber Optic Splice Protection Sleeve
1.2x40mm Heat Shrinkable Fiber Optic Splice Protection Sleeve
6 fibers 40mm Ribbon Fiber Optic Splice Protection Sleeve
12 Ribbon fibers 41mm Fiber Protection Sleeve
Fiber Optic Protection Sleeve Listings for FREE
Download Fiber Optic Protection Sleeve Sheet with price list, Get a very helpful reference for your procurements.
Buy Heat Shrinkable Protection Sleeve at Factory Price
These specially designed protector sleeves provide a way to support and protect a fiber optic fusion splice. In China, Heat Shrinkable Protection Sleeves are much cheaper than other areas in the globe.
Bativ is dedicated to providing customers either 40 mm or 60 mm Lengths fiber optic protection sleeves at very good prices. To get it now, Please contact us for any urgent orders.
Packaging & Shipping
When we pack your Heat Shrinkable Protection Sleeves, Normally it is 100pcs in a PP bag and 100-200 bags into an outer carton. You can request special labeling for your sleeve packs.
Our Customer Reviews
With successful projects for 680+ customers, your projects will be also fulfilled.
Their sleeves offer superior protection for our delicate fiber optic connections. The customer service team was knowledgeable and provided invaluable advice, ensuring we got the right sleeves for our application. With their swift lead times, we received our order promptly, facilitating seamless installation. Highly recommend this supplier for their top-notch products and exceptional service.
Aaron Boyce – Purchasing at Vexus Fiber
Durable and provide reliable protection for our fiber optic cables. The customer service team was responsive and assisted us throughout the ordering process. Plus, their efficient lead times ensured we received our sleeves on schedule. A dependable supplier we’ll continue to rely on for our fiber optic infrastructure needs.
Jose Torres – Senior Manager of OSP at OEC Fiber
The customer service team was friendly and provided excellent support, making the ordering experience seamless. Thanks to their prompt lead times, we received our sleeves in a timely manner, allowing us to complete our project without delay. Highly recommend this supplier for their exceptional products and service.
Donna Kimbrough – Senior Buyer at Ziply Fiber
FAQs
What is a Fiber Optic Protection Sleeve?
Splice Protector Sleeves are designed to protect splices in fibers with an outer diameter up to 900 µm. These fusion splice protector sleeves are an economic solution that offers reliable and solid protection for splice joints. An outer shrink tube holds the tube through which the fiber is threaded as well as the strength member, a solid steel rod that provides rigid support for the splice joint. This design not only provides a replacement for the original fiber cable jacket, but also provides excellent rigidity around the splice joint, preventing the spliced area from bending or flexing.
What are the types of Fiber Optic Protection Sleeve?
Fusion splice sleeves are available in standard, slim, mini and micro. These splice protection sleeves are the economical solution to provide protection at the fused juncture between two fusion spliced optical fibers
How to use Fiber Optic Protection Sleeve?
To use, thread the fiber through the inner fiber tube of the sleeve. Position the sleeve so that the splice joint is in the middle. The sleeve must then be heated causing the outer shrink tube to contract to Ø3.2 mm. Proper heating is required to ensure an accurate fit and function of the splice protector sleeve.

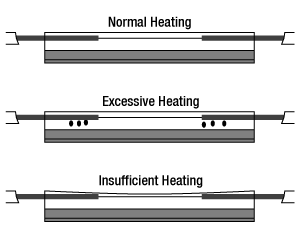

The image to the left illustrates the effects of proper and improper heating on these sleeves. The top image shows normal heating; here the shrink tube is uniform across the splice, providing permanent and rigid protection. The middle image shows excessive heating; here the shrink tube shows evidence of blemishes and melts in the tubing. The bottom image shows insufficient heating; here the shrink tube is not uniform across the splice, resulting in loose or poor protection for the splice joint.
What is the features of fiber heat shrinkable protection sleeves?
- Protect connection point,improve the mechanical strength,it is most reliable way to protect the fusion
- Easy to operate,reducing the risk of fiber damage during installation
- Transparent tube,it is easy to see the status of fiber optical closure
- Min.shrinks temperature:120°C,shrink very fast and very easy to installation
- Work temperature high (-55°C~100°C), widely used
- Sealing structure let closure have good resistance to temperature and humidity performance
What is the MOQ and lead time for your Fiber Optic Protection Sleeve?
It depends on the quantity you will order, Usually 1-3 days for 100,000pcs, and 7-10 days for 100,000-500,000pcs. And 10-15 days for 500,000 to 2,000,000pcs.
Can I get a FREE sample of Fiber Optic Protection Sleeves?
Free sample is available any time, We believe it will be a good start between us when you tested our Fiber Optic Protection Sleeve samples.
