Fiberglass Duct Rodder Supplier in China
The Fiberglass Duct Rodder is a duct rodder/cable rodder that is perfect for long runs of pulling wire through conduit.
Advanced Factory
14 Years Experience
Quality Assurance
Fiberglass Duct Rodder Features
- Light weight, durable, good resistance to chemical and corrosion.
- High tensile strength and bending properties to make it go through narrow pipes easily.
- good temperatures adaptability, it will not soften in hot weather nor become brittle in cold weather, its usability will not be affected by temperature
- Rod jacket: developed composite materials, hard, smooth and wear-resistant.
- meter marks: available
- Rod colors: yellow, other colors are optional
- Rod Length (m): 1-500m
- Rod Diameter: 4mm-16mm, any measurement
Featured Fiberglass Duct Rodders
Select the right Fiberglass Duct Rodder size for your OSP, or Custom specially for your projects.
Traceable Fiberglass Duct Rodder

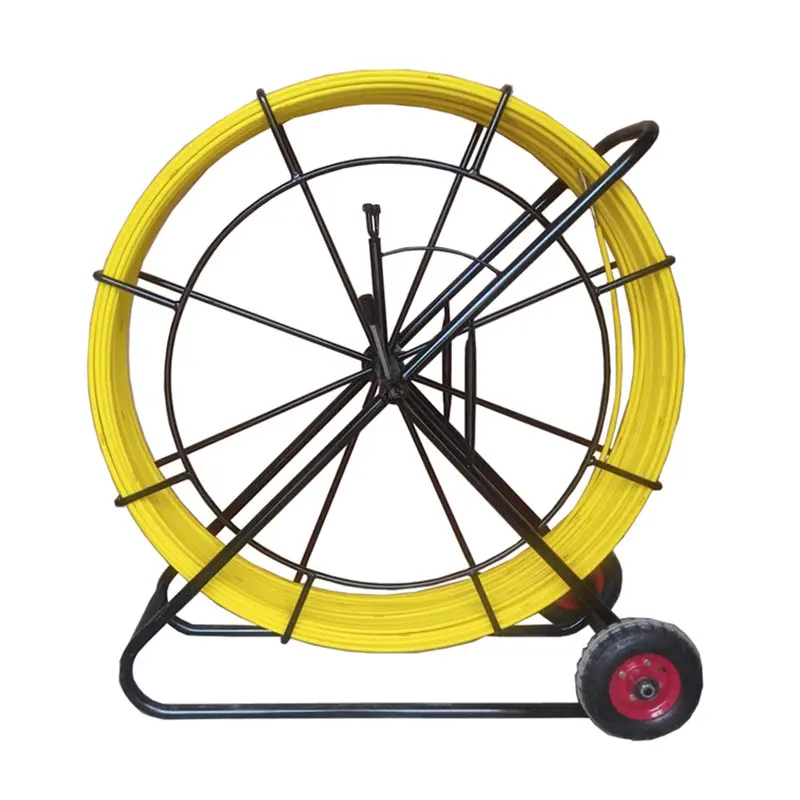

Cobra Duct Rod Fiberglass Duct Rodder

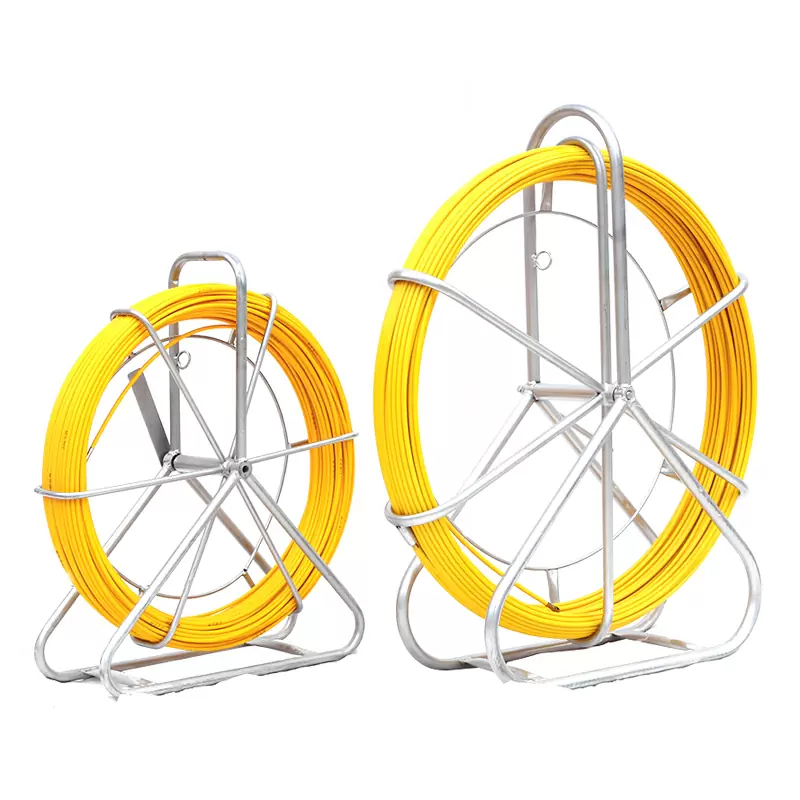

Fiberglass Duct Conduit Rodder

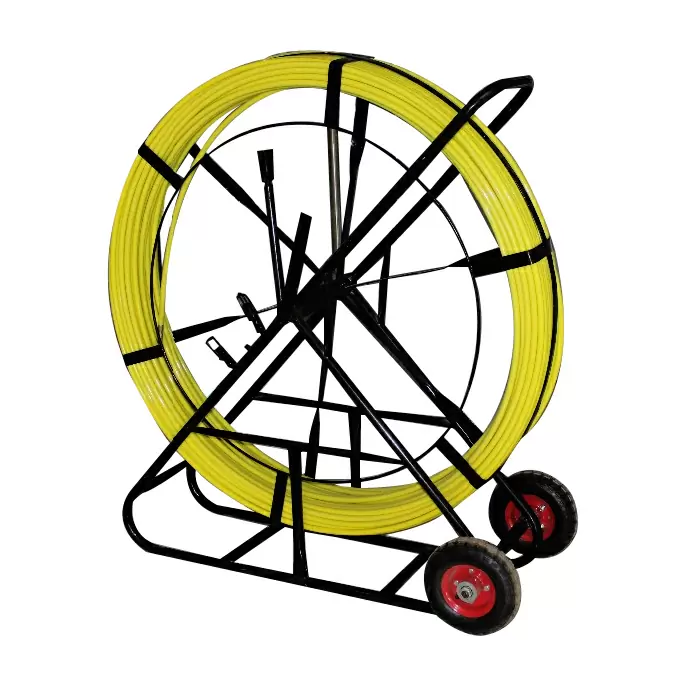

Fiberglass Conduit Rodder with Reels

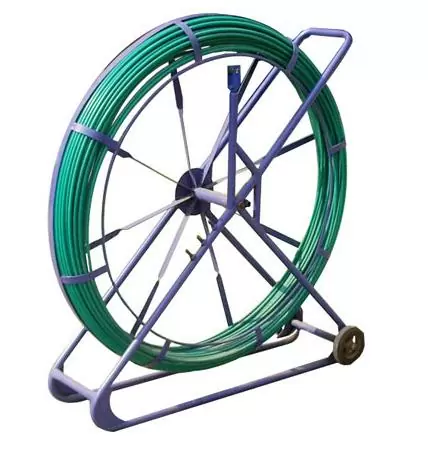

11mm duct rod electrical duct rod

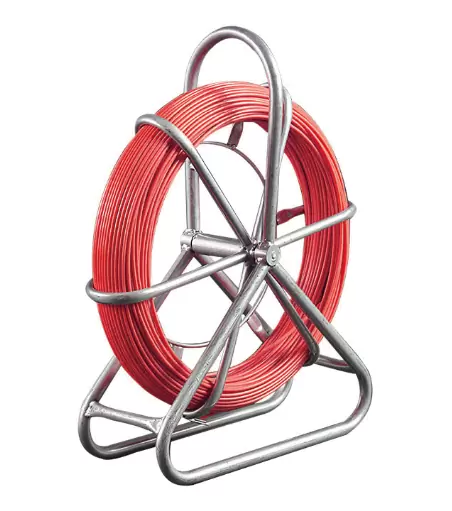

6mm duct rod mini duct rodder
Fiberglass Duct Rodder Brochure for FREE
Download Fiberglass Duct Rodder brochure with price list, It would be a useful benchmark for your procurements. Get it Now.
Fiberglass Duct Rodder for Options
Rod Diameter Table for Reference
| Rod dia.(mm) | Weight(g/m) | Bending radius(cm) | Suggested length(m) | Suggested max. duct Dia. (mm) | Inner coredia. (mm) | Breaking deflection/mm | Max. bending force(kn) | Tensile Strength(kn) |
| 4 | 19 | 5 | 80 | 50 | 3 | 6.9 | 0.21 | |
| 4.5 | 22 | 5 | 80 | 50 | 3 | |||
| 5 | 32 | 6 | 100 | 60 | 4 | 6.9 | 0.366 | |
| 6 | 40 | 6 | 100 | 60 | 4 | |||
| 7 | 66 | 10 | 150 | 80 | 6 | 7.0 | 0.825 | 350 |
| 8 | 77 | 10 | 200 | 80 | 6 | |||
| 9 | 100 | 15 | 200 | 100 | 7 | 7.1 | 1.24 | 2000 |
| 10 | 125 | 18 | 250 | 200 | 8/8.5 | 7.1 | 1.68 | 2800 |
| 11 | 148 | 20 | 250 | 200 | 8.5 | |||
| 12 | 165 | 20 | 300 | 200 | 8.5 | |||
| 13 | 205 | 25 | 300 | 250 | 10 | 7.3 | 1.86 | 3000 |
| 14 | 225 | 25 | 300 | 250 | 10 | |||
| 15 | 283 | 32 | 200 | 300 | 12 | 7.3 | 2.97 | 3500 |
| 16 | 305 | 32 | 200 | 300 | 12 |
Duct Rodder Cages Table for Reference
| Cage Sizes(cm) | 50x41x18 | 58x49x18 | 67x57x18 | 80*70*25 | 98x90x45 | 108x100x45 | 118*110*45 | 140*130*45 |
| Rod D. 4.5mm | 100m | 150m | — | — | — | — | — | — |
| Rod D. 6 mm | — | 100m | 150m | — | — | — | — | — |
| Rod D. 8 mm | — | — | — | 100m | 200m | — | — | — |
| Rod D. 9 mm | — | — | — | — | 150m | 200m | — | — |
| Rod D. 10 mm | — | — | — | — | — | 150m | 350m | — |
| Rod D. 11 mm | — | — | — | — | — | — | 300m | — |
| Rod D. 12 mm | — | — | — | — | — | — | 300m | — |
| Rod D. 13 mm | — | — | — | — | — | — | 250m | — |
| Rod D. 14 mm | — | — | — | — | — | — | 200m | 300m |
| Rod D. 16 mm | — | — | — | — | — | — | — | 250m |
| Weight (kgs) | 2 | 2.4 | 2.9 | 4.5 | 19 | 23 | 28 | 35 |
Packaging & Shipping
Fiberglass Duct Rodder is packed individually in a carton tightly and packed into a container. It is better to wholesale 100-300 pcs at a time and ship them by sea, then the shipping cost is affordable. Otherwise, The shipping cost is too high.
Our Customer Reviews
With successful projects for 680+ customers, your projects will be also fulfilled.
Exceptional quality and service from this fiberglass duct rodder supplier! Their rodders are sturdy and flexible, making them perfect for navigating through conduits. The customer service team was knowledgeable and provided excellent support. With their quick lead times, I received my rodders promptly, enabling efficient project completion. Highly recommend this supplier for top-notch products and reliable service.
Aaron Boyce – Purchasing at Vexus Fiber
Impressed with the quality and service provided by this fiberglass duct rodder supplier! Their rodders are durable and perform exceptionally well in various duct applications. The customer service team was responsive and assisted me throughout the ordering process. Plus, their fast lead times ensured I received my order without delay. A trustworthy supplier I’ll continue to rely on.
Jose Torres – Senior Manager of OSP at OEC Fiber
Five stars for this fiberglass duct rodder supplier! Their rodders are of superior quality, offering excellent flexibility and strength for duct installations. The customer service team was friendly and professional, providing timely assistance. Thanks to their quick lead times, I received my rodders promptly, facilitating smooth project execution. Highly recommend this supplier for their outstanding products and service.
Donna Kimbrough – Senior Buyer at Ziply Fiber
FAQs
What is a fiberglass duct rodder?
The Duct Rodder is used to connect cables through existing pipes to the puller in preparation for the introduction of pipe blasting equipment. Duct rodder has the advantages of time saving, labor saving and work efficiency improvement. It can be used for telecommunication pipeline cleaning and laying of optical cables, cables and plastic pipes.
As duct rodder suppliers, we provide a wide range of cable installation tool options-maxi duct rodder, midi duct rodder, mini duct rodder. The quality meets your expectations.The fiberglass duct rodder price is good for you. It is very good cable pulling equipment widely used in Telecom Industry to install cable.
How to use a duct rodder?
For maximum efficiency, consider reading the manufacturer’s manual and understanding all safety precautions. You must follow these instructions to prevent damage. The following steps can help you use pipe poles safely.
1. Place the conduit rod where the cable needs to be passed. Choose a suitable location with enough room to move around.
2. Set up barriers to mark your work area. You can place warning signs to mark your work area, especially if you work in a public place. This helps prevent people from entering your work area during the threading process. Also, make sure you and your staff are wearing the correct protective gear, such as gloves, hats, and safety shoes.
3. Place the rod horizontally, making sure all parts of the rod are installed correctly before entering the conduit. Release the handbrake from the cage and allow it to spin freely. This way you can easily pull it out as well.
4. Pull the rod tip out of the cage and unscrew the rod from the frame. Be careful to avoid damaging any components. Push it slowly into the catheter while making sure it fits into the opening. Avoid using any force to move the rod. Once it successfully reaches the other end of the rope, apply a brake to stop the cage from rotating and use a guy wire around its head.
5. Pull the rod through the opening and back into the cage. Remove the cable from the conduit and cover the rod completely inside the cage, then store the rod properly and you’re done!
What are the types of Fiberglass Duct Rodder?
As per the valve of Fiberglass Duct Rodder, You can see there are air valve type, slim tubing type Fiberglass Duct Rodder in the market.
When categorized by sizes for duct installation, You can see IDSS-30, IDSS-45, IDSS-30, IDSS-60, IDSS-75, IDSS-100, IDSS-125, etc
What is the specifications of Fiberglass Duct Rodder?
| Technical Date of Fiberglass Duct Rod | ||
| Specification | Rod Diameter (mm) | 6mm |
| Rod Length (m) | 100m | |
Material | Fiberglass rod inner | Extruded by fiber glass and high strength resin at high temperature |
| Fiber glass rod outer | High Density polyethylene coating | |
| Metal Frame | Steel with high-temperature sprayed plastic or hot dip galvanized | |
| Physical Property | Fiber glass content | 75-80% |
| Density | > 1.9gr/cm3 | |
| Working environment | -40° C to +80° C | |
| MinimumPulling strength | 4000N +/-5% | |
| Consistency of rod | 137gr/m | |
| Flexural Modulus | > 46.500Mpa | |
| Elongation at break | 2.5-3% | |
| Min Bending Radius | 388mm | |

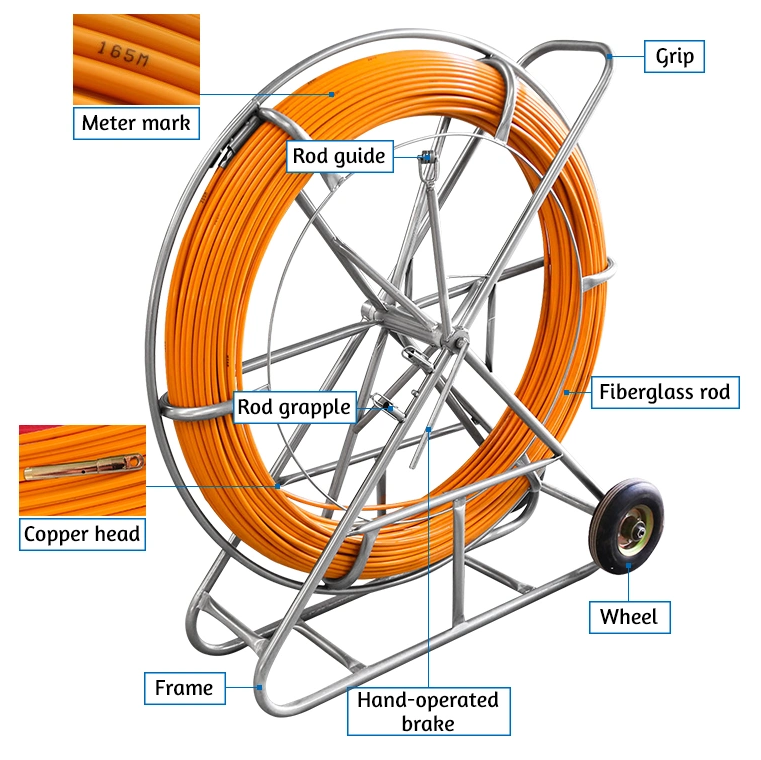

What is the structure of fiberglass duct rodder?
•Fiber glass rod inner: Extruded process made of E-fiberglass and high quality resin at high temperature.
•Fiber glass rod outer: developed polymer
•Assembly: metal frame powder coated; rubber wheels assembly for easy transportation; Guide rollers for rotary coupling; parking brake for the flexible rod control.
•Copper wire inside is optional, which is for tracing easily or other professional usage.
•Rolling bearing cage for mobility is strong and easy to use.
•Feed device allows rod in and out smoothly
•Rustproof bull-nose pulling tips with diverse accessories.
What is the MOQ and lead time for your custom Fiberglass Duct Rodder?
It depends on the quantity you will order, usually 7-10 days for 1000pcs, and 10-15 days for 1000-3000pcs.
Can I get a FREE sample of Fiberglass Duct Rodder?
Free sample is available any time, We believe it will be a good start between us when you tested our Fiberglass Duct Rodder samples. We suggest you test our products for more than 3 months.
