Flexible Squid Splitter Terminals Solution
If you are looking for cost-effective method of deploying optical fiber in outside plants cabling then look no further, Bativ FST Flexible Squid Splitter Terminal is your choice for your fast field installation.
* Samples are FREE with same day shipping
Why Choose Us?
Supply you the right Flexible Squid Splitter Terminal at the right price without delay
Fast Delivery
7/24 Service
Competitive
Quality Assurance
Flexible Squid Splitter Terminal for Options
FST Flexible Squid Splitter Terminal closures guarantee an easy, one-step connection system with the combined push-pull insertion and nut-style mechanical latch.
- Amored or non-amored cable
- 0.3m Input, 0.5m output fiber length or requested
- 1×2, 1×4, 1×8, 1×16 for options
- SC Fullax, Huawei, Optitap Corning Connector
- 1×6, 1×12, 1×24 PLC splitter for special needs
Why Use Flexible Squid Splitter Terminal?
Flexible Squid Splitter Terminal provides quick installation solutions and has good performance on mating with H Optitap lnline SC/APC connector. Cable with ultra flexible TPU tube protection.
- Quick deployment without splicing in the field
- Compact and flexible design for small vaults and pedestals
- Reduces labor cost and time

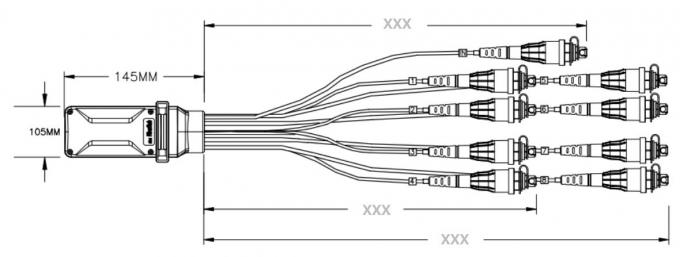

Structure & Specification
| Item name | Flexible Squid Splitter Terminal |
| Standard | Comply to GR-3120, GR-3152, IEC 61753-1, IEC 61754-4 |
| Cable | 4.8-5.0mm Black TPU with ITU-T G.657A1 fiber |
| Connector | H Optitap lnline SC/APC connector |
| Input length | 0.3M or customized |
| Output length | 0.5M or customized |
| Closure size | 145*105*50mm |
| Insertion loss | 4.5dB Max 1×2 7.8dB Max 1×4 11dB Max 1×8 13.7dB Max 1×16 |
| Return loss | 55dB Min |
| Operation Temperature | -40~+70 ℃ |
| Waterproof level | IP68 |
Features
All FST Flexible Squid Splitter Terminals are 100% tested 3 times before packaging.
- IP68 protection, salt-mist proof, humidity proof, dust proof.
- Drastically reduces field splicing with a predetermined loss at each waterproof tether access point.
- Utilize traditional field installation techniques for aerial, below ground and duct applications.
- Reduce installation time by as much as 50 percent per network access point.
- 100% optically tested to ensure quality performance assemblies.
- Broad temperature range (-40 to+70°C) is ideal for indoor or outdoor applications
- Mark on dust cap can help people who cannot distinguish between colors to operate
Packing Information
When you order a Flexible Squid Splitter Terminal, You can refer to the below table for shipping cost calculation.
| Model | Net weight | Packing size | Weight per box |
| FST102 | 0.4KG | 55*40*32CM/10pcs | 4.5KG |
| FST104 | 0.6KG | 55*40*32CM/10pcs | 6.5KG |
| FST108 | 0.8KG | 55*40*32CM/10pcs | 8.5KG |
| FST116 | 1.2KG | 55*40*32CM/5pcs | 14KG |
3 Easy Steps to Wholesale
Risk-Free, Worry Free, Wisely Purchasing
Send Inquiry
Tell us your specific needs for the Flexible Splitter Terminals, You will get reply within 6-12 hours.
Quote & Sample
You will usually get quote soon, and Free samples can be delivered to you at the same day.
Wholesale
Confirm us your purchasing, We will finish the rest of all and you can expect successfully.
FAQs
What is the MOQ of Flexible Squid Splitter Terminals?
The MOQ is 10 pcs for this Flexible Squid Splitter Terminals.
What is the lead time of Flexible Squid Splitter Terminals?
It depends on the quantity you will order, Usually 1-3 days for 100pcs, and 7-10 days for 100-500pcs. And 10-15 days for 500 to 2,000pcs.
How to get FREE Flexible Squid Splitter Terminals Sample quickly?
Contact us directly to tell us which one you need, 1-5 pcs sample are FREE. If you give us the detailed address, Then we will usually send the sample at the same day.
What if the Flexible Squid Splitter Terminals are of bad quality?
If the insertion loss is much high or with damage, You can request us to refund or send again.
What is the Term of payment for your Flexible Squid Splitter Terminals?
Free sample is available any time, We believe it will be a good start between us when you tested our Flexible Squid Splitter Terminal samples.
