Top Rated Inflatable Duct Sealing System Supplier
Bativ inflatable duct sealing system helps you seal pipelines easily, making it the best duct sealing solution for power and fiber optic cables.

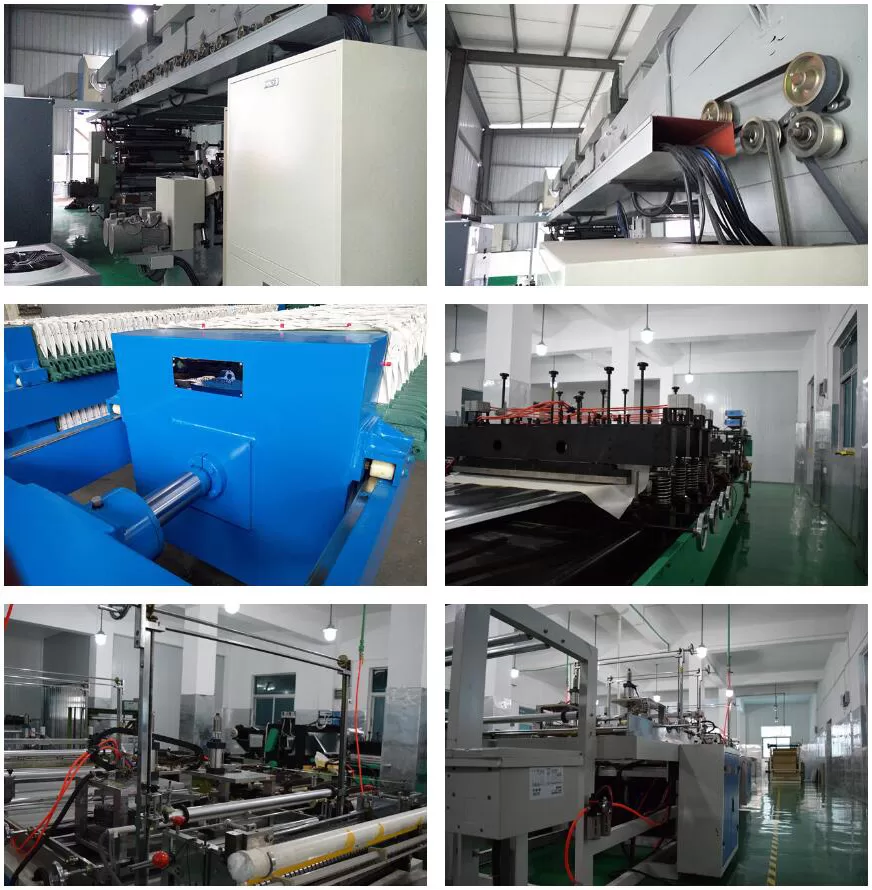

Advanced Factory
14 Years Experience
Quality Assurance
Inflatable Duct Sealing System for Options
Select the right Inflatable Duct Sealing System size for your duct sealing, or Custom specially for your projects.

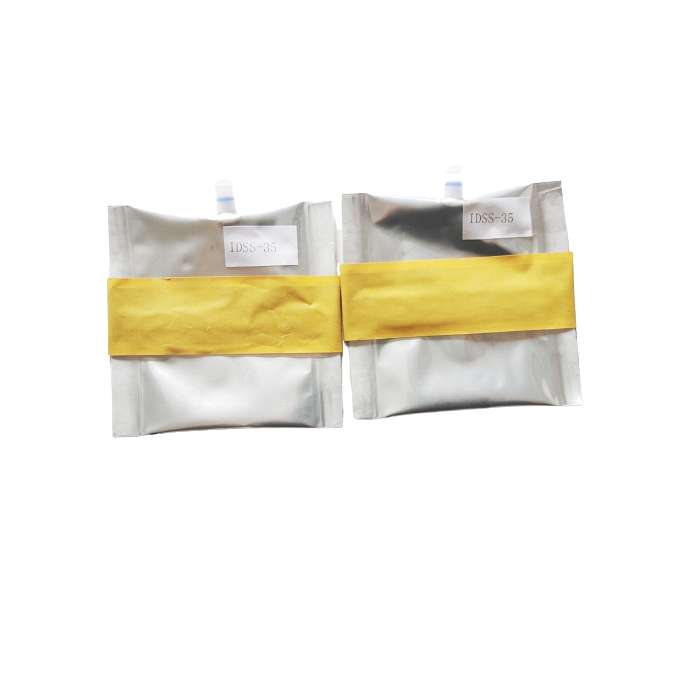

IDSS-30 Inflatable Duct Sealing System
IDSS-45 Inflatable Duct Sealing System

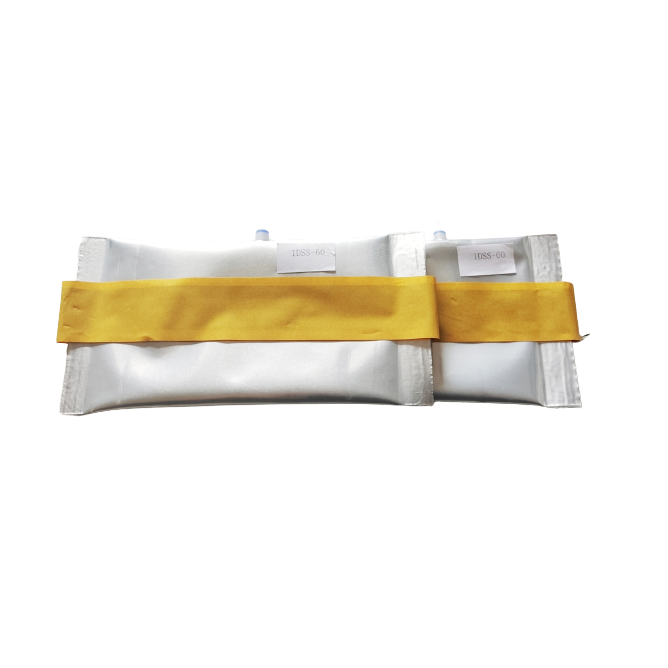

IDSS-60 Inflatable Duct Sealing System

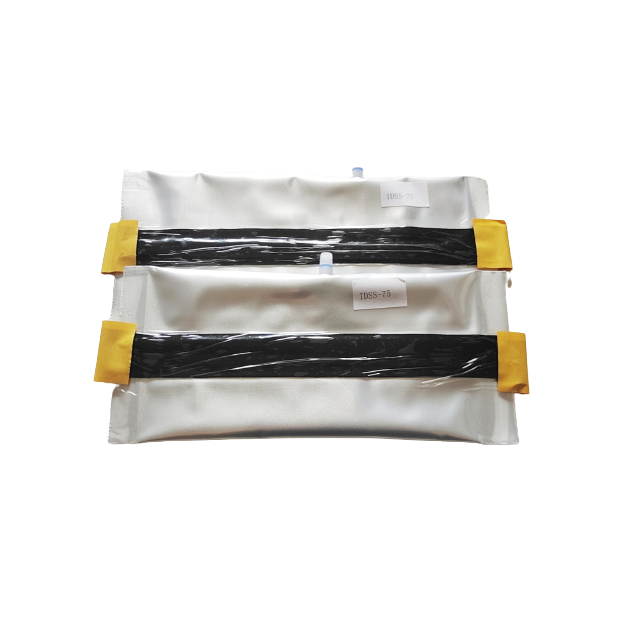

IDSS-75 Inflatable Duct Sealing System

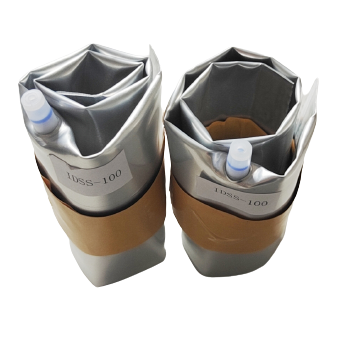

IDSS-100 Inflatable Duct Sealing System

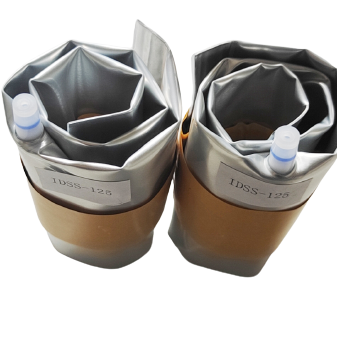

IDSS-125 Inflatable Duct Sealing System
IDSS-150 Inflatable Duct Sealing System
IDSS-200 Inflatable Duct Sealing System
IDSS-250 Inflatable Duct Sealing System
Inflatable Duct Seal Brochure for FREE
Download the Inflatable Duct Seal brochure with price list, It would be a useful benchmark for your procurements. Get it Now.
What You can benefit?
Bativ is more than a single Inflatable Duct Sealing System supplier, You can rely on us for optimal solutions to grow your business.
Low MOQ
Start from 1 pcs for your quality evaluation, Inflatable Duct Sealing System Samples are Free.
7/24 Hour Service
You can reach us any time at working day and will be answered soon.
Money Saving
From material to assembly technology, We optimize cost for your supplying.
Fast Delivery
90% Orders can be finished within 3-7 days, You can expect based on urgent need.
Warranty
All Inflatable Duct Sealing Systems are of high quality and 100% tested, Then it comes with 540 days warranty.
Time Saving
Rich in Inflatable Duct Sealing System supplying since 2009 with millions of cables yearly.
What is more?
Custom or wholesale Inflatable Duct Sealing System at low cost, 100% of good quality with 540 days warranty.
Your Inflatable Duct Seals Supplier
Bativ is dedicated to produce and supply our customers with quality excellent Inflatable Duct Seal. You can customize your LOGO on any type of our Inflatable Duct Seal. Usually you can also expect to a fast lead time for urgent need.
Want to test our Inflatable Duct Seal? Just contact us below and we will send you the free samples in 2 days.

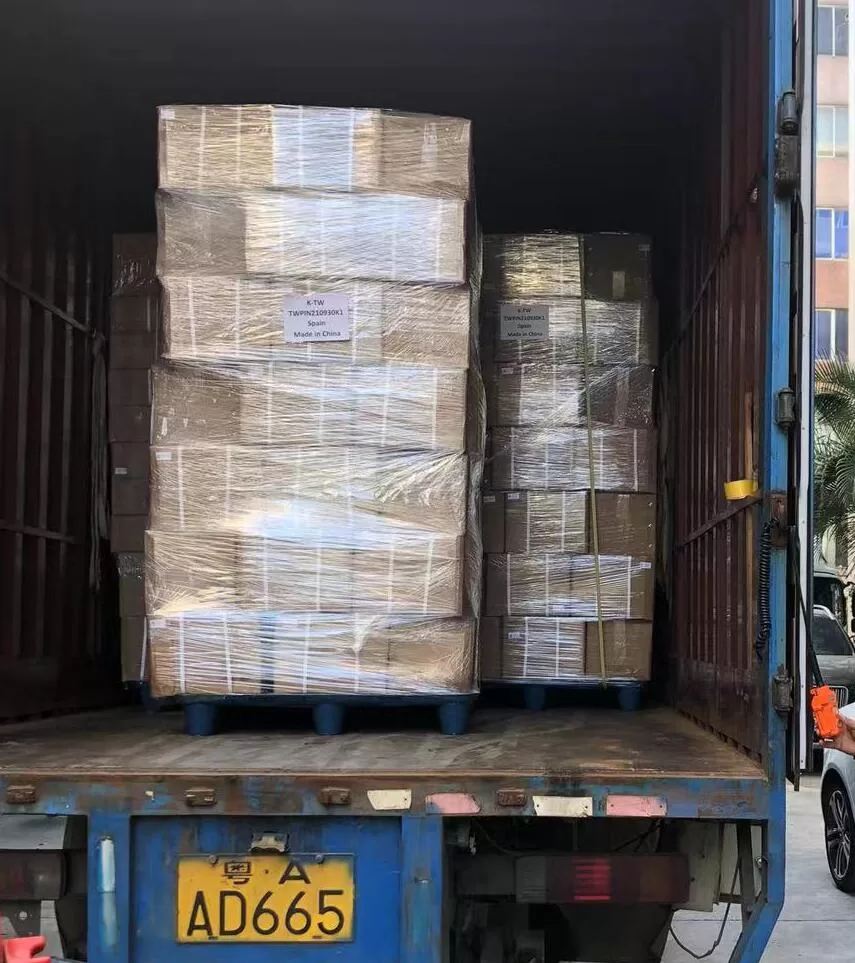

Packaging & Shipping
Bativ is one of the leading manufacturers in China in the line of Inflatable Duct Sealing System. The IDSS inflatable duct sealing system wraps around cables in the ducts of manholes or exchange vaults. The different size of Inflatable Duct Sealing bag effectively seals fiber optic cable ducts, stopping or preventing water from leaking into the manhole or vault.
Our Customer Reviews
With successful projects for 680+ customers, your projects will be also fulfilled.
Outstanding quality and service from this inflatable duct seal supplier! Their seals are durable and effectively seal conduits, preventing water and debris ingress. The customer service team was knowledgeable and provided timely assistance. With their quick lead times, I received my seals promptly, minimizing project delays. Highly recommend this supplier for reliable products and excellent service.
Aaron Boyce – Purchasing at Vexus Fiber
Impressed with the quality and service provided by this inflatable duct seal supplier! Their seals exceeded my expectations, offering superior performance and longevity. The customer service team was responsive and helpful, guiding me through the selection process. Plus, their fast lead times ensured I received my order on time, facilitating seamless project execution. A top-notch supplier I’ll definitely return to.
Jose Torres – Senior Manager of OSP at OEC Fiber
Five stars for this inflatable duct seal supplier! Their seals are of exceptional quality, effectively sealing conduits and ensuring long-term reliability. The customer service team was friendly and professional, addressing all my queries promptly. Thanks to their quick lead times, I received my seals without delay, enabling smooth project completion. Highly recommend this supplier for their top-quality products and service.
Donna Kimbrough – Senior Buyer at Ziply Fiber
FAQs
What is an Inflatable Duct Seal System?
Inflatable Duct Seal System/Inflatable Pipe Seal System (IDSS) main components “inflatable pipe plugs” is sealed airbags aluminum composite material, the use of inflatable hole principle to achieve the effect of blocking.
Inflatable tube affixed with waterproof plastic plugs on both sides, waterproof glue when inflated to the pressure of 2.6-2.8 kg, will be piping, inflatable pipe plugs, the gap between the three cable completely filled, completely sealed in order to achieve results.
Inflatable pipe plug hole inside of inflatable silicone material is installed, when the charged gas removal inflatable tube, self-filled silicone material properties can be inflated immediately to block holes ensure gas does not leak.
The Inflatable Duct Seal System is specially designed for the sealing of the cable duct, Its superior flexible sealing performance can better protect the safety of the cable and duct when the duct outlet is blocked.
Why use Inflatable Duct Sealing System? The main 8 Reasons you should know
Seals Vacant and Multiple Cable Ducts
Depending on the duct diameter, most Rayflate bags seal vacant ducts and ducts which contain up to two cables
Tools for Easy and Quick Inflation
Inflatable duct seals can be installed using a wide variety of inflation tools, which have the capability to inflate the bag to 3.0 ± 0.2 bar pressure
Versatility
As the Rayflate system adapts itself to most configurations, the system is independent of duct ovality
Environmentally Friendly
Rayflate seals do not require any mixing of liquids, thus eliminating typical hazards involved in preparation of 2-component resin systems
Removable
Rayflate seals are easier to be removed from a duct or a pipe than other systems, this allows cables to be replaced in an upgrade or repair
Performance Tested
Rayflate duct seals are a result of our long involvement in sealing and corrosion protection technologies
Ideal For Both New And Existing Cable Installations
The versatility of the wraparound concept enables use not only for new cable installations, but also for existing applications
High Quality
Our Inflatable Duct Seals are tested with industry standards to insure 100% compatible with all Internet service providers (ISP) in the market
What are the types of Inflatable Duct Sealing System?
As per the valve of Inflatable Duct Sealing System, You can see there are air valve type, slim tubing type Inflatable Duct Sealing System in the market.
When categorized by sizes for duct installation, You can see IDSS-30, IDSS-45, IDSS-30, IDSS-60, IDSS-75, IDSS-100, IDSS-125, etc
Usual Inflatable Duct Seal System Specifications?
| Product Model | Duct Outer Diameter（Ф mm） | How to use（Suitable for 1 to 4 Cables） | |
| Product Dimensions | Cable Diameter（Ф mm） | ||
| IDSS一40 | 40 | 120×126 | 23～7.5 |
| IDSS一50 | 50 | 120×180 | 45.5～7.5 |
| IDSS一63 | 63 | 120×230 | 46.5～7.5 |
| IDSS一75 | 75 | 120×280 | 48.5～8 |
| IDSS一90 | 90 | 120×330 | 64～10.5 |
| IDSS一110 | 110 | 120×400 | 84.9～12.9 |
| IDSS一125 | 125 | 120×450 | 100～35 |
| IDSS一160 | 160 | 140×560 | 129～40 |
| IDSS一180 | 180 | 140×650 | 154～48 |
| IDSS一200 | 200 | 140×700 | 178～56 |
| IDSS一250 | 250 | 160×900 | 200～70 |
| IDSS一300 | 300 | 180×1040 | 240～95 |
You can refer to this specifications table to send us inquiry.
What is the MOQ and lead time for your custom Inflatable Duct Seal System?
It depends on the quantity you will order, Usually 1-3 days for 1000pcs, and 7-10 days for 1000-20000pcs. And 10-15 days for 20000 to 200,000pcs.
Can I get a FREE sample of Inflatable Duct Seal System?
Free sample is available any time, We believe it will be a good start between us when you tested our Inflatable Duct Seal System samples. We suggest you test our products for more than 3 months.
Send Inquiry Now
Bativ Services Always Go Extra Mile
OEM & ODM Available
Whether you want to have your logo on package or want to custom it differently, we can help you.
Lighting Fast Delivery
If you are no in need of special fiber optic products, just the finished product, The inventory will be of fast delivery.
Start With Low MOQ
If you want to wholesale fiber optic products, we support a minimum order quantity of 1 pcs for the first order.
Trusted by Big brands since 2010
