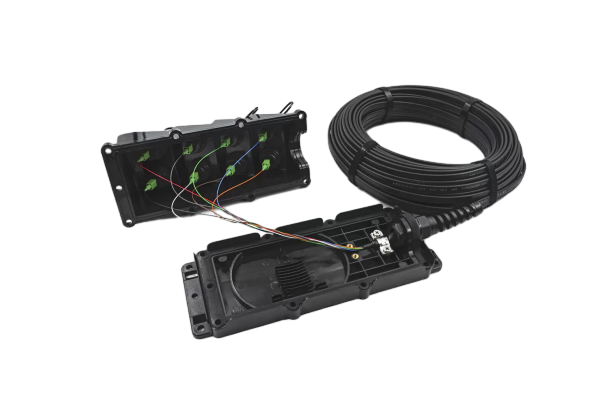

OptiTap MST Multiport Fiber Terminal
OptiTap MST series pre-connectorized boxes offer configurations with 2 to 12 ports, accommodating both single and multi-fiber hardened connectors.
OptiTap MST Series Supplier in China
Streamlining FTTX-ODN network deployment, the pre-connectorized OptiTap MST multiport terminal box eliminates the need for field termination. This cost-effective solution features pre-connected, hardened adapter ports for faster installation, saving telecom operators up to 30% on total cost of ownership (TCO). Compared to traditional methods, the OptiTap MST multiport terminal box simplifies ODN deployment by eliminating fiber splicing and unpacking. Its versatility extends beyond FTTH applications, making it suitable for FTTA and other harsh environments.
6 Port OptiTap MST Multiport Fiber Terminal
8 Port OptiTap MST Multiport Fiber Terminal
12 Port OptiTap MST Multiport Fiber Terminal
Please feel free to send us your requirements and our team is ready to work with you.
OptiTap MST Box Features & Benefits
Built for speed and durability, the OptiTap MST simplifies deployments for both tower and FTTH applications. Its fully pre-connectorized design with hardened adapters ensures fast installation and eliminates the need for on-site termination. OptiTap compatibility guarantees seamless integration, while the IP68 rating signifies exceptional weather resistance for any outdoor environment. Easy-to-deploy mounts provide flexible mounting options for walls or poles.
Termination Options
Choose from pre-terminated (factory-installed connectors) or unterminated (for field customization) configurations.
Connectivity Modes
Select point-to-point connections for individual deployments or MPO indexing for high-fiber count applications.
Hardened Connectors
All MST boxes come equipped with ruggedized, pre-connectorized ports designed to withstand harsh outdoor environments.
Fast Installation
The plug-and-play design of the adapter ports allows for rapid cable installation, saving on deployment time.
IP68 Rating
All MST boxes boast an IP68 rating, signifying complete dust and water resistance for reliable performance in any outdoor setting.
Port Selection
Choose from a variety of port configurations, including 2, 4, 6, 8, or 12 ports, to suit your specific application requirements.
Mounting Versatility
MST boxes offer flexible mounting options, including aerial, wall, pole, or buried installations, for easy adaptation to various deployment scenarios.
Cable Compatibility
The boxes are designed to work seamlessly with industry-standard drop cables and connectors, ensuring compatibility with existing infrastructure.
Feed Cable Options
For the feed cable connection, you can opt for either a factory-spliced version within the MST box or a female connector on the MST box for field-terminated connection.

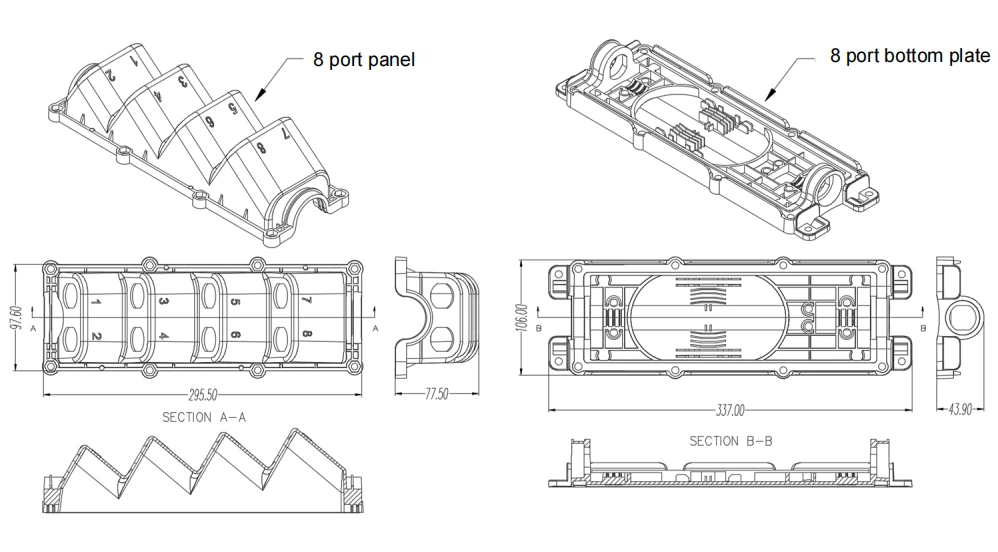

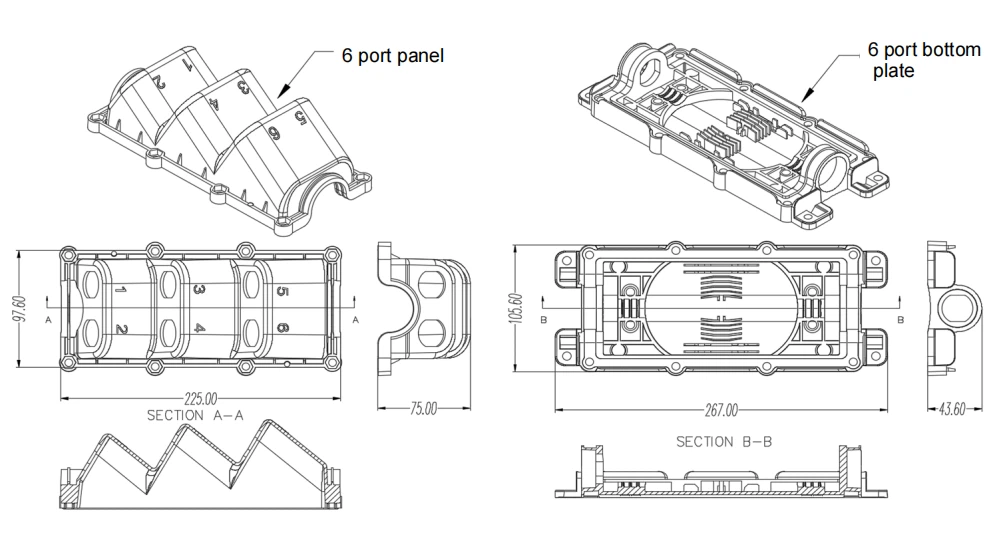

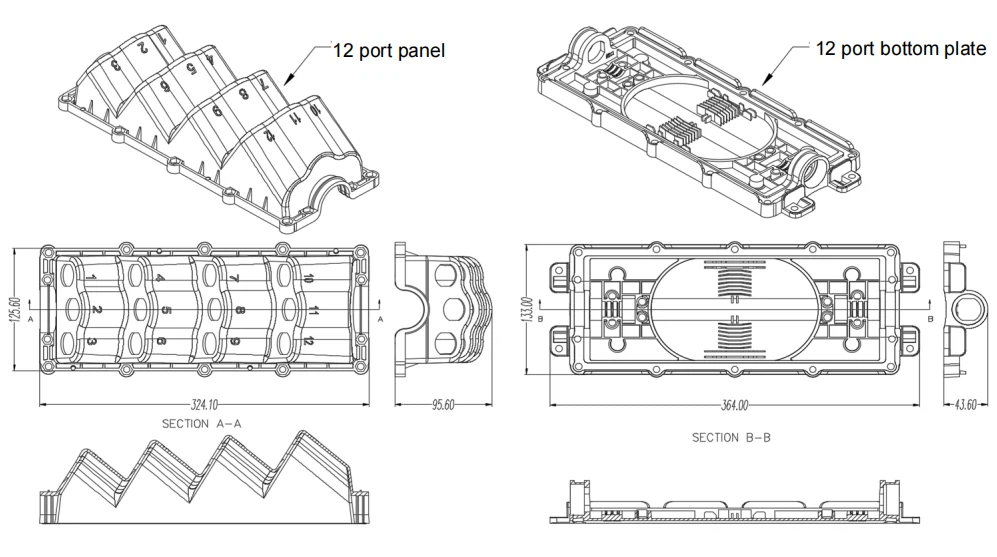

Mechanical Specifications Diagram
OptiTap MST Box Specifications
| Port | 2, 4, 5, 6, 8, 12,16 |
| Product Type | Access Terminal |
| IP Rate | IP68 |
| Components Compliant | RoHs |
| Operating Temperature | -40 to +85℃ |
| Adapter | OptiTap SC, OptiTap LC Duplex, OptiTap MPO |
| Entrance | Cable gland or OptiTap adapter |
| Feed Cable | 1, 2, 4, 6, 8 cores for options |
| Feed Cable Length | Customized |
| Stub Type | Stub Tail |
| Mounting Method | Hand-hole, Pedestal, Pole, Strand, Aerial |
| Cable Type | Flat drop cable |
| Cable Size | 3.0×4.5mm; 4x7mm; 4.5×8.1mm; 4.5×9.8mm |
| Cable Quantity | 1 |
| Cable Stub Length | 50meter to customized |
| Attenuation, maximum | 0.30 dB/km @ 1550 nm | 0.40 dB/km @ 1310 nm |
| Directivity, minimum | 60 dB |
| Wavelength Range | 1260–1635 nm |
| Insertion Loss, Terminal Connector, max | 0.4dB |
| Return Loss, Connector, minimum | 65dB |
Make Your Budget Go Further With Our OptiTap MST Series
Reduce costs, not performance. Bativ offers OptiTap MST multiport fiber terminals, delivering exceptional value without sacrificing quality. Our durable, high-performance solutions ensure reliable, cost-effective FTTX deployments.
