Outdoor Fiber Termination Box for Options

One-stop Outdoor Fiber Termination Box supplier from custom to delivery, Easy and safe, No Overpaying, Fast Delivery.

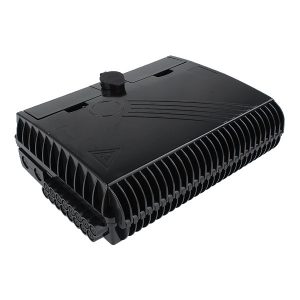

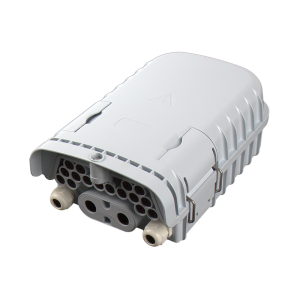

16 Ports Outdoor Fiber Termination Box

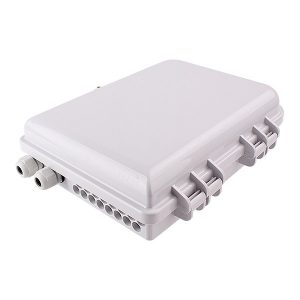

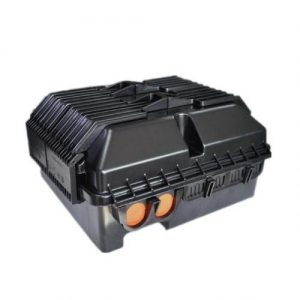

16 Ports Outdoor Fiber Termination Box

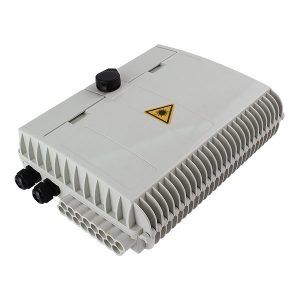

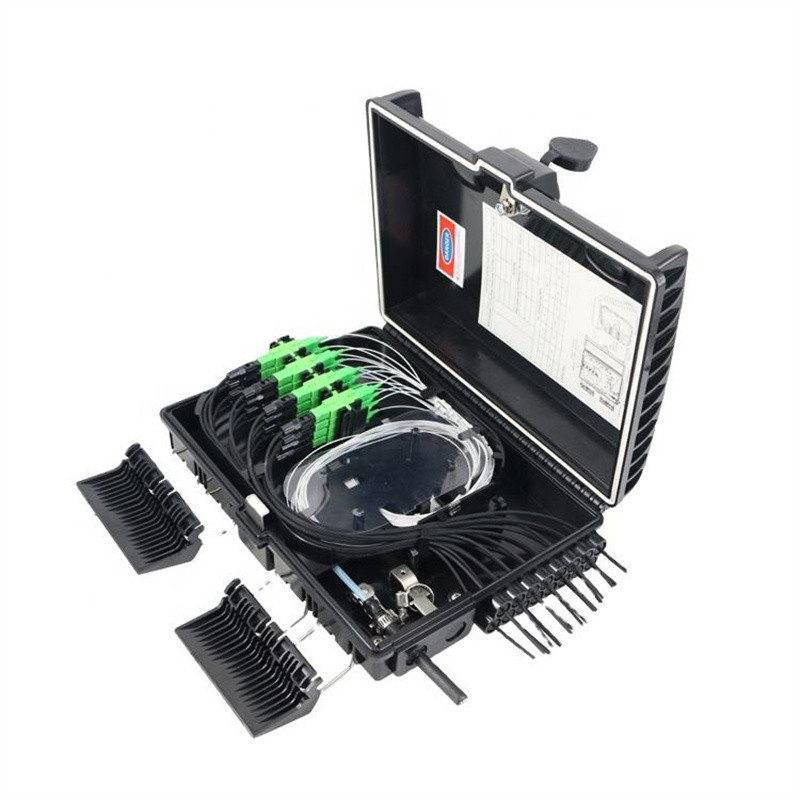

16 Ports Outdoor Fiber Termination Box

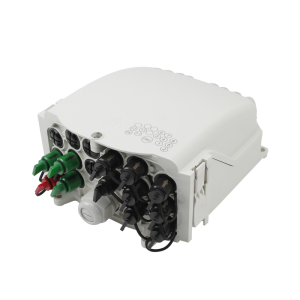

12 Ports Outdoor Fiber Termination Box

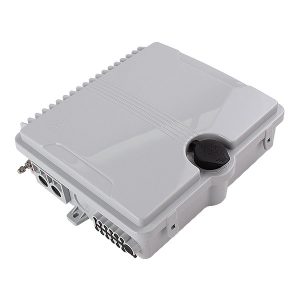

12 Ports Outdoor Fiber Termination Box

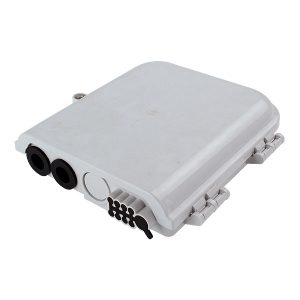

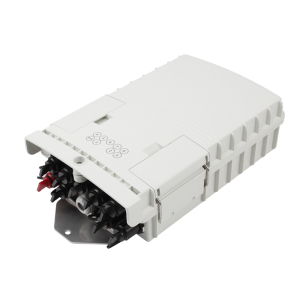

8 Ports Outdoor Fiber Termination Box

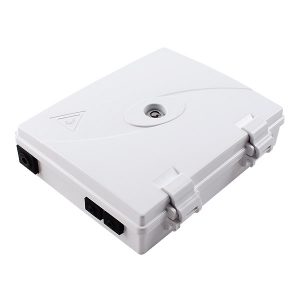

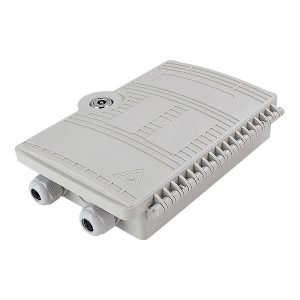

2 Ports Outdoor Fiber Termination Box

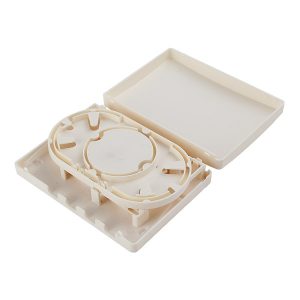

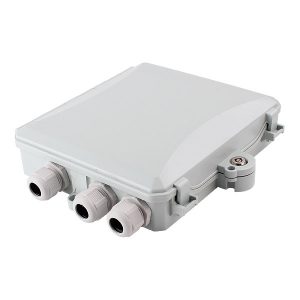

4 Ports Outdoor Fiber Termination Box

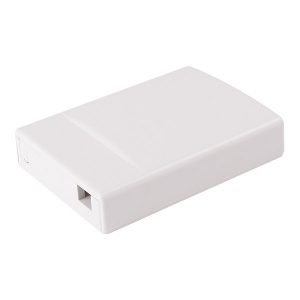

2 Ports Outdoor Fiber Termination Box

Indoor / Outdoor Fiber Termination Box

16 Ports Wall Mounted Outdoor Fiber Termination Box

16 Ports Wall Mounted Outdoor Fiber Termination Box

24 Port Wall Mount Outdoor Fiber Termination Box

16 Cores Wall Mounted Outdoor Fiber Termination Box

16 cores Wall Mounted Outdoor Fiber Termination Box

    How to Choose Outdoor Fiber Termination Box?

    Fiber Capacity and Fiber Ports

    That is how many fiber counts would be spliced or connected into this Outdoor Fiber Termination Box.

    Installation Environment

    Assess whether the termination box will be installed indoors, outdoors, in a wall-mount, rack-mount, or pole-mount configuration

    Connector Types

    Usually for FTTx Cabling, SC LC fiber connectivity is popular, But you should also understand it if you have special request.

    Splicing or Connecting Options

    To splice fiber pigtails with cable directly or connected them with fiber optic splitters.

    Cost and Budget

    Here in Bativ, We are supporting you with good quality Outdoor Fiber Termination Box at low cost, You can contact us any time to discuss with.

    What we care about?

    Understand your installation environment with premium ABS material

    All Outdoor Fiber Termination Boxes should be coming with

    You can put on your logo on any of the Outdoor Fiber Termination Box for branding in our markets

    Good design makes your installation cost effective and easy to use

    Usually there are some amount of them are in stock for your urgent need.

    Make sure you can receive all freight as good as possible, and easy to check them at your warehouse any time.

    What is more?

    Your Outdoor Fiber Termination Boxes Supplier in China

    Bativ is your one-stop supplier for all custom & urgent need fiber patch cord solutions. There are many options for your projects, such as 2 cores, 4 cores to 72 ports, Indoor or outdoor use, Rack mount and wall mount, With us, You not merely get more than a Outdoor Fiber Termination Box but a whole solution.

    Packaging & Shipping

    When we pack your Outdoor Fiber Termination Boxes, Each of them are in one inner carton and 20 to 40 inner carton into an outer carton. The most important thing is to keep your package safe.

    Our Customer Reviews

    FAQs

    What is a Outdoor Fiber Termination Box ?

    Outdoor Fiber Termination Box is an interface between the fiber cable from the line side and the pigtails to be passed to the fiber distribution frame. A fiber pigtail is a specific hardware connection used for cable termination.

    Thus, a Outdoor Fiber Termination Box is used to terminate the optical fiber cables in the field and connect them to the pigtail by splicing. After an optical cable arrives at the user’s end, it is fixed in the terminal box. Then, the optical cable core and pigtail are welded in the terminal box.

    What are the types of Outdoor Fiber Termination Box?

    Optical fiber terminal boxes can be of many different types:

    Based on Cable Connection Method

    • Straight-through Terminal Box: This terminal box has a single external hole for the receiving line.
    • Branched-type Terminal Box: This terminal box has several holes for the receiving line.

    Based on the number of fibers fused

    A terminal box can be divided into 2 in, 8 out, 4 in 24 out, 4 in 12 out, etc.

    Based on the shell material

    The terminal boxes can be plastic shell or metal shell optical fiber terminal boxes.

    Based on the style

    These boxes can be rack-drawer, wall-mounted, desktop-type, and other types.

    Indoor Outdoor Fiber Termination Box

    The indoor fiber distribution terminal is a compact fiber box solution for installation requirements in small to mid-sized MDUs, multiple dwelling units, or multiple tenant units (MTU).

    Outdoor Outdoor Fiber Termination Box

    Outdoor Fiber Distribution Terminals are used for installing fiber in small and medium-sized MDUs, or multi-dwelling units.

    How to customize a Outdoor Fiber Termination Box?

    Custom a Outdoor Fiber Termination Box is easy here with Bativ, You need to make clear your requirements, We will send you our draft for the custom fiber optic products, Take 2 ports Outdoor Fiber Termination Box for example, We can make a 3D model for your reference until you are satisfied with it, Then we can get back to you with our best quote or sample for your quality evaluation.

    How to use a Outdoor Fiber Termination Box?

    Installation of the Outdoor Fiber Termination Box must be done under the supervision of a skilled technician or engineer. Here are the various stages in the installation of the FTB.

    Mounting

    The optical Outdoor Fiber Termination Box is mounted on the wall or on the 19 inches (483 mm) wide standard rack. The front panel should be easily accessible as the cable enters from the bottom.

    Cable End Preparation

    Any fiber cable’s end has to be prepared before starting the cable entry in the optical Outdoor Fiber Termination Box. The cable end preparation procedure is available from the supplier. It is crucial to protect the bare fibers at this stage. This is because they get exposed after following the cable end preparation.

    Cable Entry

    Once the cable ends are prepared, a rubber diaphragm at the box’s cable entry hole needs to be pierced. This is to be done before inserting the cable in the box, as this opening is blocked in new boxes.

    Cable End Clamping

    The Outdoor Fiber Termination Box has several plastic fiber guide posts mounted in it. The fiber in the sleeves or transport tube of the cable is routed through them. Through these guideposts, all the excess length of the cable is brought into the selected splice tray. Then, using a plastic clamping strap, it is clamped at the splice tray’s entry point.

    Splicing

    The most important part of the installation process is splicing the optical fiber from the cable to the pigtails. A splicing machine is used for this purpose. It is kept close to the termination box on a table.

    A stainless steel wire mechanism is released from its spring catch to open a particular splice tray. A splicing machine is used to splice the pigtail fibers so that the fiber ends come out of the cable. They are then pushed to fit into the fused splice.

    The process is carried on for all the splices to be stored in splice trays. These splice trays are then placed in a stack inside the termination box. The stainless steel wire closing mechanism is then closed with the box.

    What is the MOQ and lead time for your custom Outdoor Fiber Termination Box?

    It depends on the quantity you will order, Usually 1-3 days for 1000pcs, and 7-10 days for 1000-20000pcs. And 10-15 days for 20000 to 200,000pcs.

    Can I get a FREE sample of Outdoor Fiber Termination Box?

    Free sample is available any time, We believe it will be a good start between us when you tested our fiber patch cable samples.
